ATEN VGA(F) TO DVI(F) CONVERTER
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VC160A-AT-U
- MPN: VC160A-AT-U
−18%
Overview

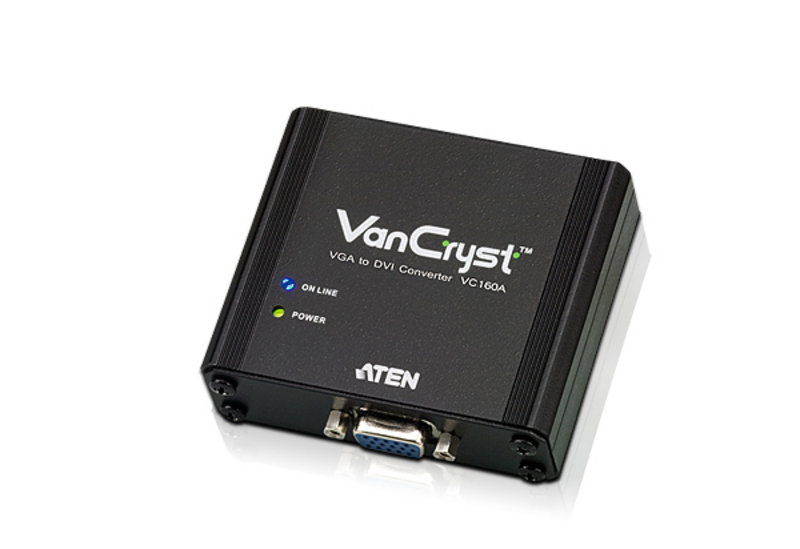

The VC160A is a VGA-to-DVI Converter that lets you view VGA source data in DVI output display. It uses dual power
sources – from the VGA port and a power adapter. The VC160A is compact, flexible and convenient to install – with no software required. It supports a wide range of resolutions for a more enjoyable quality video experience.
1x VC160A VGA to DVI Converter
1x Power Adapter
1x User Instructions
sources – from the VGA port and a power adapter. The VC160A is compact, flexible and convenient to install – with no software required. It supports a wide range of resolutions for a more enjoyable quality video experience.
1x VC160A VGA to DVI Converter
1x Power Adapter
1x User Instructions
Key features
- Internal: No
- LED indicators: Yes
- Product colour: Black
- Housing material: Metal
- Maximum video resolution: 1920 x 1200 pixels
- Video resolutions: 1920 x 1200 pixels
- Bandwidth: 165 MHz
- Host interface: VGA (D-Sub)
- Output interface: DVI-D
- Operating voltage: 5.3 V
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
- Width: 79 mm
- Depth: 78.1 mm
- Height: 24.4 mm
- Weight: 250 g
- Quick installation guide: Yes
- Quantity: 1
- Package width: 59 mm
- Package depth: 119 mm
- Package height: 160 mm
- Package weight: 320 g
Specifications
Power
| Operating voltage | 5.3 V |
|---|
Video
| Maximum video resolution | 1920 x 1200 pixels |
|---|---|
| Video resolutions | 1920 x 1200 pixels |
| Bandwidth | 165 MHz |
Features
| Internal | No |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Housing material | Metal |
Logistics data
| Master (outer) case net weight | 2.5 kg |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 3.55 kg |
| Products per master (outer) case | 10 pc(s) |
Packaging data
| Quick installation guide | Yes |
|---|---|
| Quantity | 1 |
| Package width | 59 mm |
| Package depth | 119 mm |
| Package height | 160 mm |
| Package weight | 320 g |
Ports & interfaces
| Host interface | VGA (D-Sub) |
|---|---|
| Output interface | DVI-D |
Weight & dimensions
| Width | 79 mm |
|---|---|
| Depth | 78.1 mm |
| Height | 24.4 mm |
| Weight | 250 g |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
