Brother P-Touch PTE310BTVP
- Brand: Brother
- Category: Label Printers
- SKU: BPTE310BTVP
- MPN: PTE310BTVP
Brother
Brother PT-E310BTVP label printer Thermal transfer 180 x 180 DPI 20…
- SKU
- CNZ-DS-000438
- MPN
- PTE310BTVP
- Rating
- No reviews yet
−18%
Overview

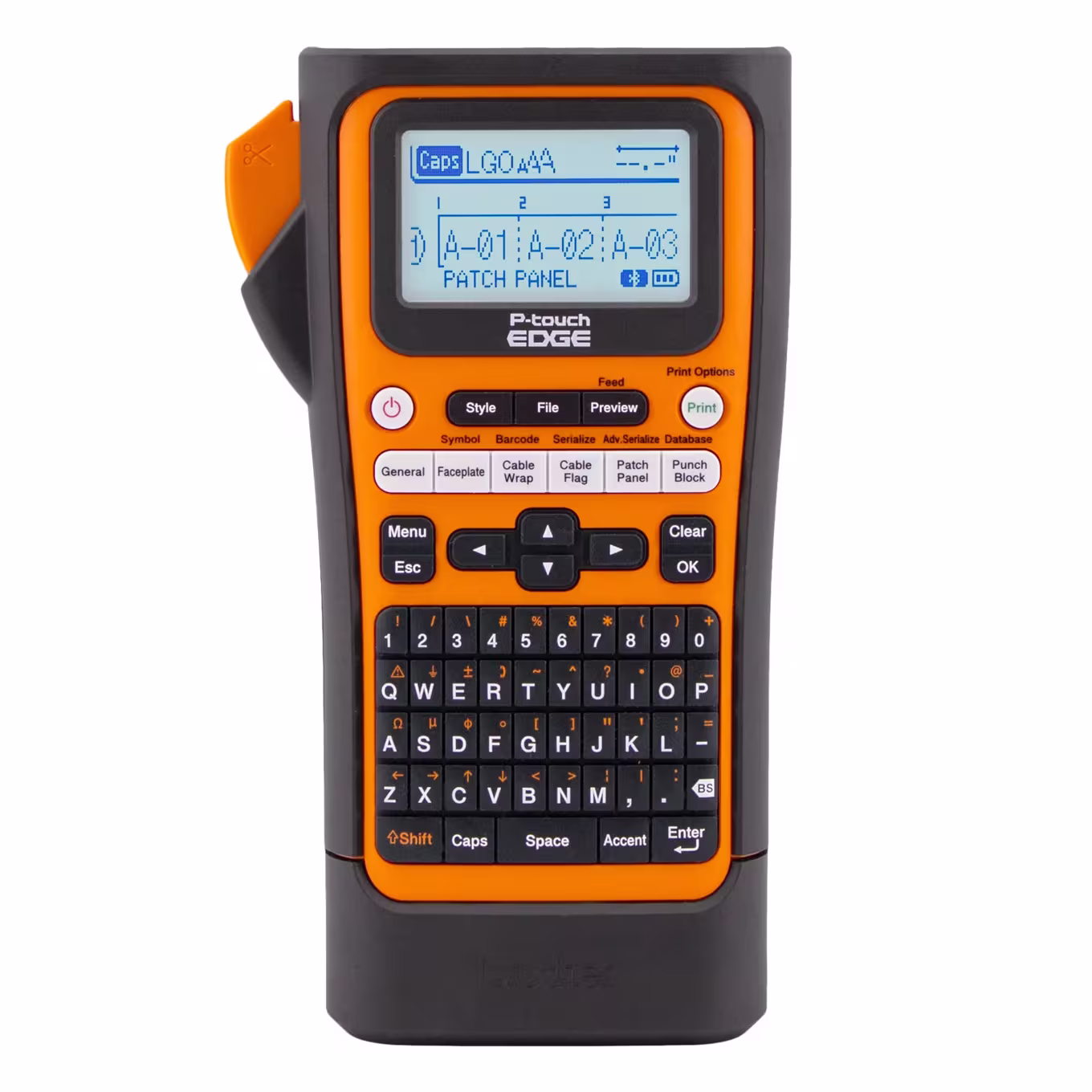

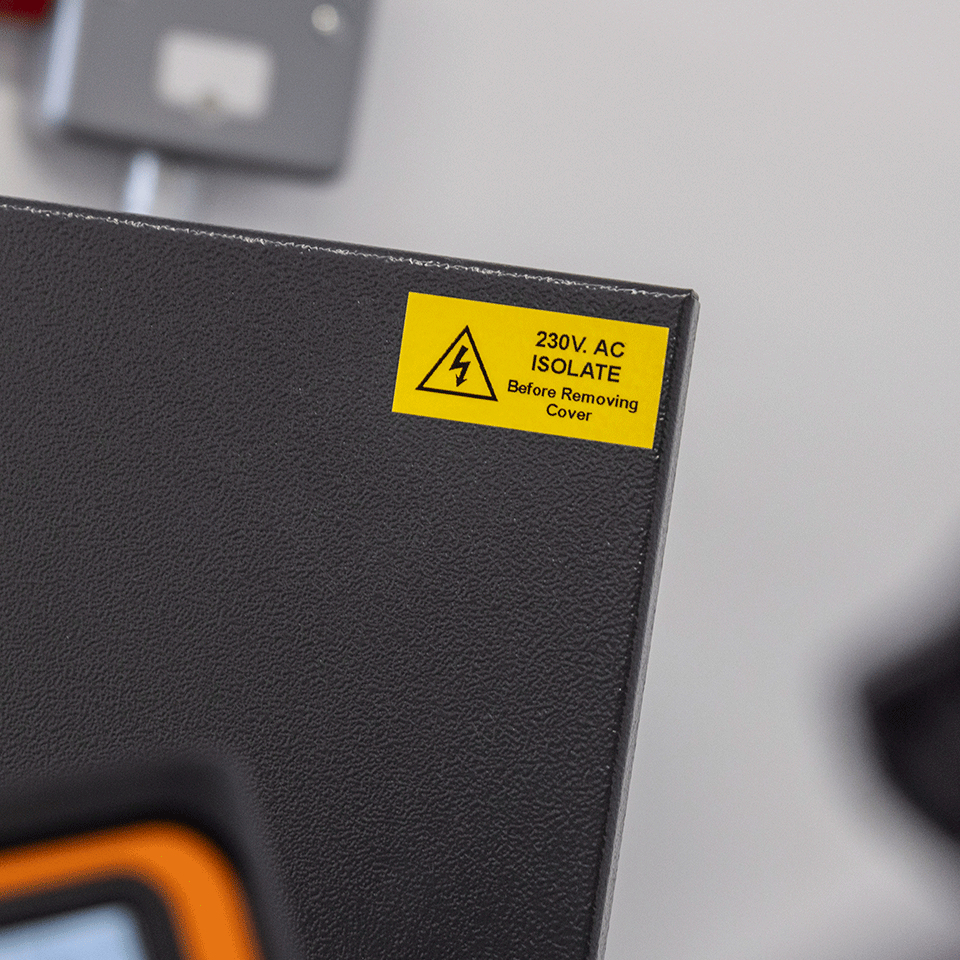

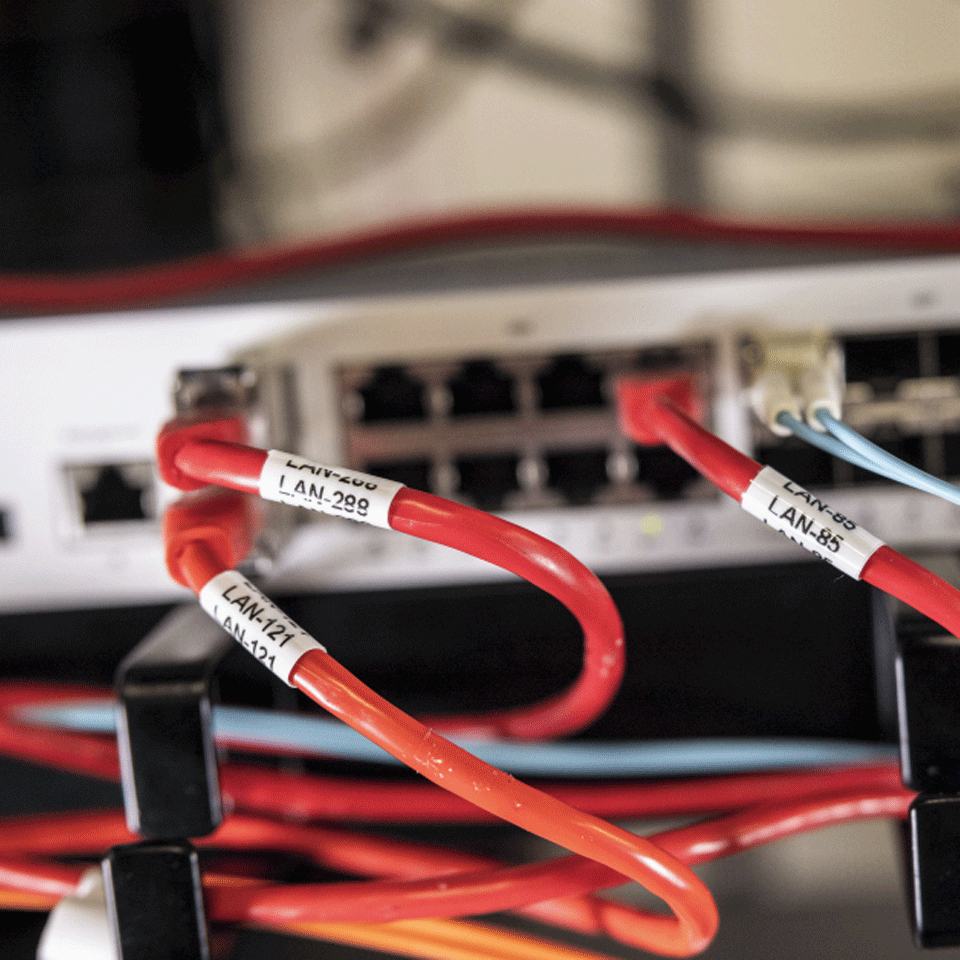

Ensure durable, long-life identification of electrical installations, including danger/warning signs, solar panels and AV equipment, cables and wires. Print labels in standalone mode using the built-in QWERTY keyboard, large display and specialist labelling functions. Integrated bluetooth offers the flexibility to connect to a PC, smartphone or tablet and print labels that comply with all industry standards and regulations using Brother's Pro Label Tool App and P-touch Editor software. Compatible with Pro Tapes - Brother's specialist range of fit-for-purpose tapes that offer resistance to water, chemicals, abrasion and extreme temperatures - our market-leading machines are built to last, with labels that match.
Key features
- Print technology: Thermal transfer
- Colour: No
- Maximum resolution: 180 x 180 DPI
- Number of printable dots: 128 dot
- Print speed: 20 mm/sec
- Maximum printing width: 1.58 cm
- Maximum print height: 1.8 cm
- Vertical printing: Yes
- Mirror printing: Yes
- Rotated printing: Yes
- Maximum print length: 1 m
- Connectivity technology: Wired & Wireless
- Ethernet LAN: No
- Wi-Fi: No
- Bluetooth: Yes
- Bluetooth version: 5.0
- USB port: Yes
- Built-in barcodes: CODABAR (NW-7), Code 128 (A/B/C), Code 39, Data Matrix, EAN13, GS1-128, UPC-A, UPC-E
- Number of symbols: 477
- Number of fonts: 7
- Tape type: HSE/TZe
- Number of printing lines (max): 5
- Underline: Yes
- Product colour: Black, Orange
Specifications
Power
| AC input voltage | 100 - 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Battery type | Built-in battery |
| Number of batteries supported | 1 |
| Auto power off | Yes |
| Power source type | Battery |
Design
| Product colour | Black, Orange |
|---|---|
| Keyboard number of keys | 64 |
| Built-in display | Yes |
| Display | LCD |
| Backlight display | Yes |
| Keyboard layout | QWERTY |
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Battery weight | 190 g |
| Battery capacity | 14 Wh |
| Rechargeable battery | Yes |
Printing
| Print technology | Thermal transfer |
|---|---|
| Colour | No |
| Maximum resolution | 180 x 180 DPI |
| Number of printable dots | 128 dot |
| Print speed | 20 mm/sec |
| Maximum printing width | 1.58 cm |
| Maximum print height | 1.8 cm |
| Vertical printing | Yes |
| Mirror printing | Yes |
| Rotated printing | Yes |
| Maximum print length | 1 m |
Performance
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Data Matrix, EAN13, GS1-128, UPC-A, UPC-E |
|---|---|
| Number of symbols | 477 |
| Number of fonts | 7 |
| Tape type | HSE/TZe |
| Number of printing lines (max) | 5 |
| Underline | Yes |
Logistics data
| Pallet gross height | 16.5 cm |
|---|---|
| Pallet gross weight | 258 kg |
| Master (outer) cases per pallet | 24 pc(s) |
| Master (outer) cases per pallet layer | 6 pc(s) |
| Layers per pallet | 4 pc(s) |
| Products per pallet | 72 pc(s) |
Other features
| Memory capacity | 1500 characters |
|---|---|
| Print preview | Yes |
| Label memory | 99 label(s) |
| Number of frames | 7 |
| Languages support | Multi |
Packaging data
| Package width | 126 mm |
|---|---|
| Package depth | 334.4 mm |
| Package height | 393 mm |
| Package weight | 3.08 kg |

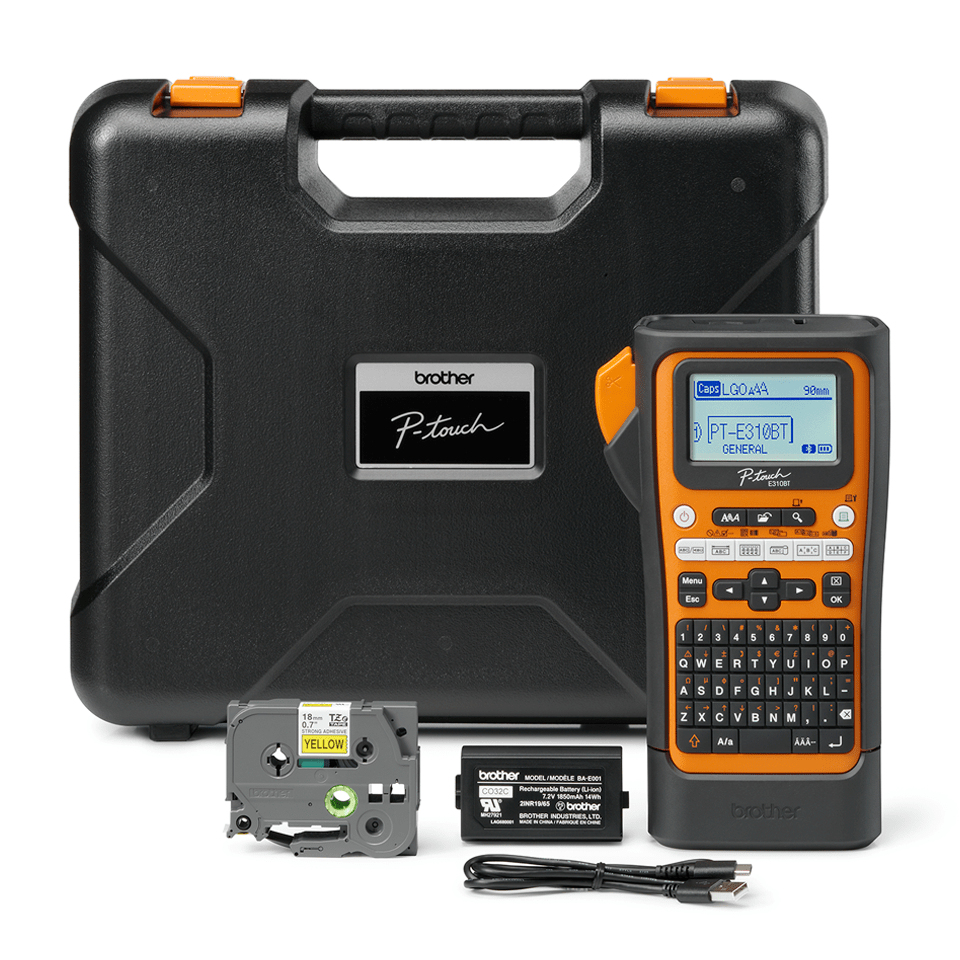

Packaging content
| Cables included | USB |
|---|---|
| Batteries included | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
| Wrist strap included | Yes |
Technical details
| Multi-block | 99 |
|---|---|
| PC connection | USB 3.2 Gen 1 (3.1 Gen 1) |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR |
| Pallet type | 1200 x 1000 mm |
Ports & interfaces
| Connectivity technology | Wired & Wireless |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| USB port | Yes |
System requirements
| Windows operating systems supported | Windows 10, Windows 11 |
|---|---|
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Mobile operating systems supported | Android 10, Android 9.0, iOS 11.0, iOS 12, iOS 13, iOS 15, iOS 16 |
Weight & dimensions
| Width | 135 mm |
|---|---|
| Depth | 236 mm |
| Height | 70 mm |
| Weight | 800 g |
Operational conditions
| Operating relative humidity (H-H) | 20 - 80% |
|---|---|
| Storage relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
