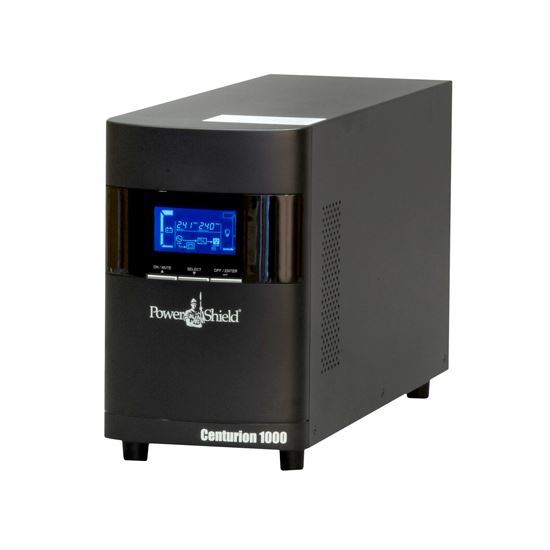

POWERSHIELD Centurion Tower 1000VA/ 900W Double Conversion True Online
- Brand: Powershield
- Category: Monitors
- SKU: PSCE1000
- MPN: PSCE1000
Powershield
POWERSHIELD Centurion Tower 1000VA/ 900W Double Conversion True Online
- Our SKU
- MPN
- Rating
- No reviews yet
−31%
Overview
POWERSHIELD Centurion Tower 1000VA/ 900W Double Conversion True Online UPS. 2x NZ Outlets + 2x IEC Outlets. EBM Compatible for Extended Runtime, Programmable Power Outlets.
Specifications
EMS
| EMS | EN62040-2 2006 |
|---|
RoHS
| RoHS | Directive 2001 / 65 / EU |
|---|
Spec
| Spec | INPUT |
|---|
Phase
| Phase | Single phase with ground |
|---|
Safety
| Safety | EN62040-1-1 2003, IEC60950-1-1 |
|---|
Weight
| Weight | 14kg |
|---|
ECO Mode
| ECO Mode | 85% |
|---|
Humidity
| Humidity | 20-90% (RH Non-condensing) |
|---|
Software
| Software | Power Shield NetGuard Software - supports Windows based operating Systems, Linux, Unix & Mac |
|---|
Interface
| Interface | USB or RS232 as standard, Intelligent slot for PSSNMP or PSA400 dry contact |
|---|
Noise Level
| Noise Level | Less than 45dBA @ 1 Meter |
|---|
Temperature
| Temperature | 0°C - 40°C |
|---|
Weight (35)
| Weight (35) | OPERATING ENVIRONMENT |
|---|
Battery Mode
| Battery Mode | 83% |
|---|
Battery Type
| Battery Type | 12Vx9AH(x3) |
|---|
Power Factor
| Power Factor | 0.98 |
|---|
Audible Alarm
| Audible Alarm | Battery Mode, Low Battery, Overload, Fault |
|---|
Frequency Range
| Frequency Range | 47.5Hz ~ 52.5Hz or 57Hz ~ 63Hz |
|---|
Full Protection
| Full Protection | Overload, discharge, thermal, short circuit and overcharge protection |
|---|
Charging Voltage
| Charging Voltage | 41.0 VDC ± 1% |
|---|
Noise Level (39)
| Noise Level (39) | COMPLIANCE |
|---|
Power Factor (8)
| Power Factor (8) | OUTPUT |
|---|
Battery Mode (20)
| Battery Mode (20) | BATTERY |
|---|
Load Crest Factor
| Load Crest Factor | 3:1 |
|---|
Audible Alarm (32)
| Audible Alarm (32) | PHYSICAL |
|---|
LCD Display / Alarm
| LCD Display / Alarm | UPS Status, Load Level, Battery Level, Input/Output Voltage,Battery Time Remaining and Fault Indicators |
|---|
Charging Time (Max.)
| Charging Time (Max.) | 1.0A |
|---|
Full Protection (27)
| Full Protection (27) | COMMUNICATIONS & MANAGEMENT |
|---|
Harmonice Distortion
| Harmonice Distortion | 3% THD (Linear Load) 6% THD (Non-linear Load) |
|---|
Charging Voltage (25)
| Charging Voltage (25) | PROTECTION |
|---|
Typical Recharge Time
| Typical Recharge Time | 4 Hours to Recover to 90% Capacity |
|---|
Waveform (Batt. Mode)
| Waveform (Batt. Mode) | Pure Sinewave |
|---|
Dimenesion (D x W x H)
| Dimenesion (D x W x H) | 396 x 145 x 240mm |
|---|
Waveform (Batt. Mode) (17)
| Waveform (Batt. Mode) (17) | EFFICIENCY |
|---|
Frequency Range (Batt. Mode)
| Frequency Range (Batt. Mode) | 50Hz ± 0.25Hz or 60Hz ± 0.3Hz |
|---|
Transfer - Inverter to Bypass
| Transfer - Inverter to Bypass | 4ms (Typical) |
|---|
Transfer - AC Mode to Batt. Mode
| Transfer - AC Mode to Batt. Mode | Zero |
|---|
Voltage Range - Low Line Comeback
| Voltage Range - Low Line Comeback | 175 VAC ± 5% |
|---|
Voltage Range - Low Line Transfer
| Voltage Range - Low Line Transfer | 160 VAC / 140 VAC / 120 VAC / 110 VAC ± 5%(based on load percentage 100% - 80% / 80% - 70% / 70% - 60% / 60% - 0%) |
|---|
AC Voltage Regulation (Batt. Mode)
| AC Voltage Regulation (Batt. Mode) | ± 3% |
|---|
Voltage Range - High Line Comeback
| Voltage Range - High Line Comeback | 47.5Hz ~ 52.5Hz or 57Hz ~ 63Hz |
|---|
Voltage Range - High Line Transfer
| Voltage Range - High Line Transfer | 300 VAC ± 5% |
|---|
Frequency Range (Synchronized Range
| Frequency Range (Synchronized Range | 48Hz ~ 52Hz or 57Hz ~ 63Hz |
|---|
