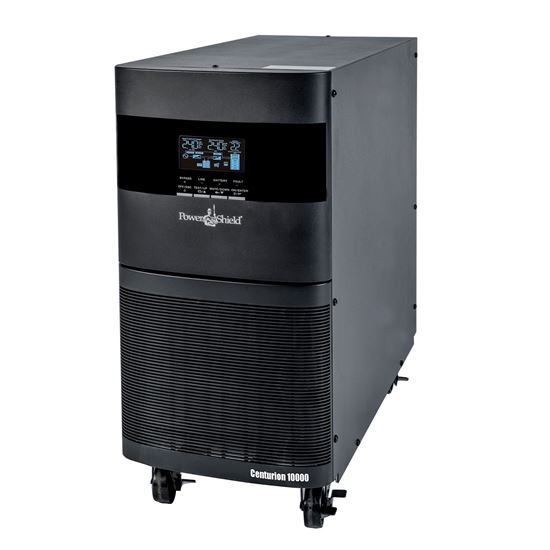

POWERSHIELD Centurion Tower 10kVA/ 8000W Double Conversion True Online
- Brand: Powershield
- Category: Monitors
- SKU: PSCE10K
- MPN: PSCE10K
Powershield
POWERSHIELD Centurion Tower 10kVA/ 8000W Double Conversion True Online
- SKU
- CNZ-CD-004577
- MPN
- PSCE10K
- Rating
- No reviews yet
−31%
Overview
POWERSHIELD Centurion Tower 10kVA/ 8000W Double Conversion True Online UPS. Hardwired input and outputs. EBM Compatible for Extended Runtime. Requires 63Amp Dedicated CLEARANCE SALE SAVE UP TO 35% OFF
Specifications
EMS
| EMS | EN62040-2 2006 |
|---|
RoHS
| RoHS | Directive 2001 / 65 / EU |
|---|
Spec
| Spec | INPUT |
|---|
Phase
| Phase | Single phase with ground |
|---|
Safety
| Safety | EN62040-1-1 2003, IEC60950-1-1 |
|---|
Weight
| Weight | 93kg / 38kg |
|---|
ECO Mode
| ECO Mode | 90% |
|---|
Humidity
| Humidity | 20 - 90% (RH Non-Condensing) |
|---|
Software
| Software | Power Shield NetGuard Software - supports Windows based operating Systems, Linux, Unix & Mac |
|---|
Interface
| Interface | USB OR RS232 as standard, Intelligent slot for PSSNMP or PSA400 dry contact |
|---|
Noise Level
| Noise Level | Less than 55dB @ 1 Meter |
|---|
Temperature
| Temperature | 0 - 40°C |
|---|
Weight (35)
| Weight (35) | OPERATING ENVIRONMENT |
|---|
Battery Mode
| Battery Mode | 88% |
|---|
Battery Type
| Battery Type | 12Vx9AH(x20) |
|---|
Power Factor
| Power Factor | 0.99 @ 100%load |
|---|
Audible Alarm
| Audible Alarm | Battery Mode, Low Battery, Overload, Fault |
|---|
Frequency Range
| Frequency Range | 46~54 Hz " 50Hz / 56~64Hz " 60Hz |
|---|
Full Protection
| Full Protection | Overload, discharge, thermal, short circuit and overcharge protection |
|---|
Charging Voltage
| Charging Voltage | 273.0 VDC |
|---|
Noise Level (39)
| Noise Level (39) | COMPLIANCE |
|---|
Power Factor (8)
| Power Factor (8) | OUTPUT |
|---|
Battery Mode (20)
| Battery Mode (20) | BATTERY |
|---|
Load Crest Factor
| Load Crest Factor | 3:1 |
|---|
Audible Alarm (32)
| Audible Alarm (32) | PHYSICAL |
|---|
Harmonic Distortion
| Harmonic Distortion | 2% THD (Linear Load) 6% THD (Linear Load) |
|---|
LCD Display / Alarm
| LCD Display / Alarm | UPS Status, Load Level, Battery Level, Input/Output Voltage, Battery Time Remaining and Fault Indicators |
|---|
Full Protection (27)
| Full Protection (27) | COMMUNICATIONS & MANAGEMENT |
|---|
Charging Voltage (25)
| Charging Voltage (25) | PROTECTION |
|---|
Dimension (D x W x H)
| Dimension (D x W x H) | 575 x 250 x 576.5mm |
|---|
Typical Recharge Time
| Typical Recharge Time | 7 hours recover to 90% capacity |
|---|
Waveform (Batt. Mode)
| Waveform (Batt. Mode) | Pure Sinewave |
|---|
Charging Current (max.)
| Charging Current (max.) | 1.0A |
|---|
Waveform (Batt. Mode) (17)
| Waveform (Batt. Mode) (17) | EFFICIENCY |
|---|
Frequency Range(Batt. Mode)
| Frequency Range(Batt. Mode) | 50Hz ± 0.1Hz or 60Hz ± 0.1Hz |
|---|
Transfer - Inverter to Bypass
| Transfer - Inverter to Bypass | Zero |
|---|
Transfer - AC Mode to Batt. Mode
| Transfer - AC Mode to Batt. Mode | Zero |
|---|
AC Voltage Regulation(Batt. Mode)
| AC Voltage Regulation(Batt. Mode) | ±1% |
|---|
Voltage Range - Low Line Comeback
| Voltage Range - Low Line Comeback | 186 VAC @ 100% load 120 VAC @ 50% load |
|---|
Voltage Range - Low Line Transfer
| Voltage Range - Low Line Transfer | 176 VAC @ 100% load 110 VAC @ 50% load |
|---|
Voltage Range - High Line Comeback
| Voltage Range - High Line Comeback | 290 VAC |
|---|
Voltage Range - High Line Transfer
| Voltage Range - High Line Transfer | 300 VAC |
|---|
Frequency Range(Synchronized Range)
| Frequency Range(Synchronized Range) | 46~54Hz 50Hz/56~64Hz 60Hz |
|---|
