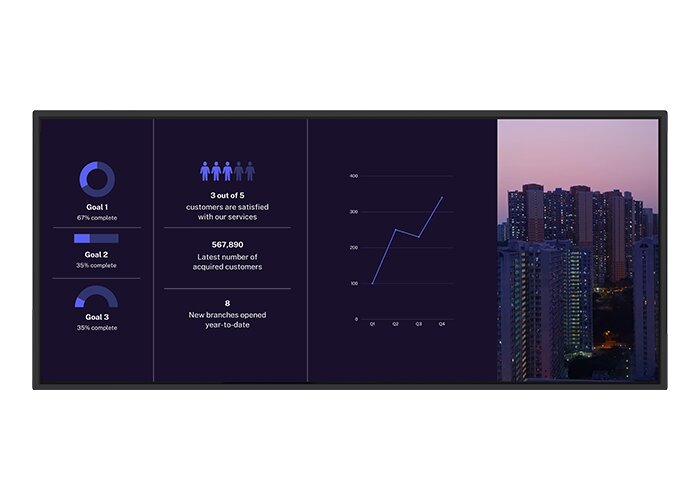

COMMBOX 105"4K UHD HORIZON INTERACTIVE TOUCHSCREEN (21:9), 20-PT TOUCH, OPSI7, W10PRO, 5Y

SKU: CNZ-DD-011156
MPN: CBIH105
Rating: No reviews yet

COMMBOX 105"4K UHD HORIZON INTERACTIVE TOUCHSCREEN (21:9), 20-PT TOUCH, OPSI7, W10PRO, 5Y — COMMBOX

Overview

Audio & Video > Large Format Displays

Specifications

RAM

RAM	8GB

ROM

ROM	64GB

VESA

VESA	1000 x400 mm

MacOS

MacOS	Dual Gestures

RS-232

RS-232	1

Weight

Weight	91.4 kg

HDMI In

HDMI In	3 - Up to 4K@60HZ, 1 - Up to 5K@60Hz

Altitude

Altitude	Below 5000 m

Audio In

Audio In	1 - 3.5mm

HDMI Out

HDMI Out	1 - 4K Out

LCD Size

LCD Size	105 Inch

OPS Slot

OPS Slot	1

Pen Type

Pen Type	2 x Dual Tip Stylus

Stand by

Stand by	< 0.5W

Audio Out

Audio Out	1 - 3.5mm

Subwoofer

Subwoofer	15W

USB-A 2.0

USB-A 2.0	1

USB-A 3.0

USB-A 3.0	2

Brightness

Brightness	400 cd/m2

IP Control

IP Control	Yes

Line Array

Line Array	8

S/PDIF Out

S/PDIF Out	1

Touch Tool

Touch Tool	Finger, Passive Stylus, Eraser, Palm

Touch Type

Touch Type	Infrared Recognition

USB Type-C

USB Type-C	1 - Data, 15W charging, Ethernet

Orientation

Orientation	Landscape

Pen Holders

Pen Holders	Integrated magnetic holders

Screen Type

Screen Type	LCD

Speaker (W)

Speaker (W)	2 x 20W

USB-B Touch

USB-B Touch	3

Wake on Lan

Wake on Lan	Yes

Architecture

Architecture	Dual Quad Core Processor

Aspect Ratio

Aspect Ratio	21:9

Bezel Colour

Bezel Colour	Black/Grey

Colour Gamat

Colour Gamat	90%

Product Size

Product Size	2507.2 x 1130.1 x 103.2 mm

Speaker Type

Speaker Type	Front facing

Touch Points

Touch Points	50

WIFI Chipset

WIFI Chipset	Removable WIFI 6 Module

Bezel Buttons

Bezel Buttons	Anti-microbial coating

LAN In (RJ45)

LAN In (RJ45)	1 - 1000MB/sec

RS232 Control

RS232 Control	Yes - Baud rate 9600

Response Time

Response Time	> 6.5ms

Sound channel

Sound channel	2.1

Viewing Angle

Viewing Angle	178°

WIFI Standard

WIFI Standard	802.11ac/b/g/n/ax

Backlight Type

Backlight Type	D-LED

Contrast Ratio

Contrast Ratio	4000:1

LAN Out (RJ45)

LAN Out (RJ45)	1 - 1000MB/sec

Life of Screen

Life of Screen	50,000 Hrs

Palm Rejection

Palm Rejection	Yes

System Version

System Version	CommBox OS - Lite

Touch Accuracy

Touch Accuracy	1mm

Chromium, Linux

Chromium, Linux	Single-touch

Display Port In

Display Port In	1

Glass Protection

Glass Protection	Anti-glare 28%

Housing Material

Housing Material	Aluminium Plate

LCD Refresh Rate

LCD Refresh Rate	60 Hz

Operating System

Operating System	Android 13

Pen Tip Diameter

Pen Tip Diameter	3mm/7mm

Pressure Sensing

Pressure Sensing	Yes

Storage Humidity

Storage Humidity	10% - 90% Rh

Touch Resolution

Touch Resolution	32767 x 32768

Annotate Anywhere

Annotate Anywhere	Yes

Bluetooth Version

Bluetooth Version	5

Input And Outputs

Input And Outputs	Front

Power Consumption

Power Consumption	410W

View Area (H)/(V)

View Area (H)/(V)	2449.92 x 1033.56 mm

Android Resolution

Android Resolution	5K

Operation Humidity

Operation Humidity	10% - 90% RH

Power Requirements

Power Requirements	240V

Resolution (H)/(V)

Resolution (H)/(V)	5120x2160

Distance of Pick Up

Distance of Pick Up	8 m

Storage Temperature

Storage Temperature	-20 - 60 °C

Operation Temperature

Operation Temperature	0 - 40 °C

Display Colours (10bit)

Display Colours (10bit)	1.07

WIFI Operating Distance

WIFI Operating Distance	0-10m

Wall-hanging screw spec

Wall-hanging screw spec	M8 x 25mm

Glass Type and Thickness

Glass Type and Thickness	3mm tempered glass - Mohs Level 7

Power Consumption w' OPS

Power Consumption w' OPS	360W

Remote Device Management

Remote Device Management	Yes - CommBox Manage

WIFI Operating Frequency

WIFI Operating Frequency	2.4GHz/5GHz

Pen & Touch Differentiation

Pen & Touch Differentiation	Yes

Bluetooth Operating Distance

Bluetooth Operating Distance	0-10m

Bluetooth Operating Frequence

Bluetooth Operating Frequence	2.4GHz

Windows with Microsoft Ink Support

Windows with Microsoft Ink Support	Yes - multi touch

Thickness of Machine and Wall Mount

Thickness of Machine and Wall Mount	148.2 mm
