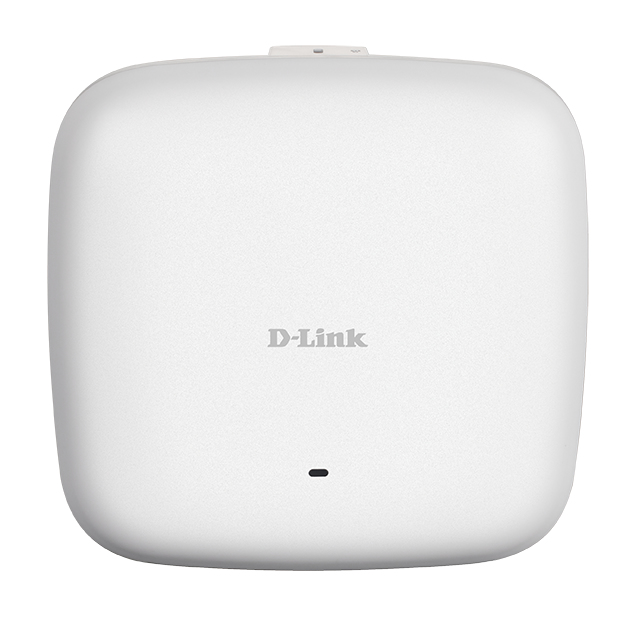

D-LINK DAP-2680 Access Point

  • Brand: D-Link
  • Category: Access Points (WiFi)
  • SKU: DLDAP2680
  • MPN: DAP-2680
D-Link

D-Link Wireless AC1750 Wave2 Dual-Band PoE Access Point

SKU
CNZ-DS-001192
MPN
DAP-2680

Overview

The DAP-2680 Wireless AC1750 Wave 2 Dual-Band PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options, and utilising the cutting-edge speed of 802.11ac Wave 2.
The DAP-2680 delivers maximum combined wireless signal rates of up to 1750 Mbps and supports MU-MIMO technology that allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. To maximise total return on investment, the DAP-2680 can be configured to optimise network performance based on any one of its multiple operation modes.
For centralised network management, administrators can use D-Link’s free Nuclias Connect
software or Nuclias Connect Hub (DNH-100)5 to configure and manage multiple access points.
In addition to streamlining the management process, Nuclias Connect provides network
administrators with the means to verify and conduct regular maintenance checks remotely,
eliminating the need to send personnel out to physically verify proper operation.

Enjoy High-Performance Wireless Connectivity
Harness the power of IEEE 802.11ac Wave 2 wireless and experience wireless speeds of up to 1750 Mbps, perfect for high-demand business applications

MU-MIMO with Beamforming
Dramatically improves the wireless range and performance as well as allowing multiple devices to
connect simultaneously to the wireless network

Scalable, Flexible, Centralised AP Management
Centrally manage up to 1000 APs with Nuclias Connect, complete with a multi-tenant structure that
provides multi-layer management authority

Key features

  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • 6 GHz: No
  • Maximum data transfer rate: 1750 Mbit/s
  • Frequency band: 2.4 - 2.4835; 5.15 - 5.35; 5.47 - 5.85 GHz
  • Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
  • Transmitting power: 26.5 dBmW
  • Security algorithms: 64-bit WEP, 128-bit WEP, SNMP, SNMPv3, SSH, SSID, SSL/TLS, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
  • MAC address filtering: Yes
  • Web-based management: Yes
  • Ethernet LAN (RJ-45) ports: 1
  • Power over Ethernet (PoE): Yes
  • Output voltage: 12 V
  • Output current: 2 A
  • Placement: Table, Wall
  • Product colour: White
  • LED indicators: Power, Status
  • Internal: No
  • Antennas quantity: 3
  • Antenna gain level (max): 4.2 dBi
  • Shipping (inner) case length: 59.9 cm
  • Shipping (inner) case width: 29.3 cm
  • Shipping (inner) case height: 24 cm
  • Shipping (inner) case net weight: 3.44 kg

Specifications

Power

Power over Ethernet (PoE)Yes
Output voltage12 V
Output current2 A

Design

PlacementTable, Wall
Product colourWhite
LED indicatorsPower, Status
InternalNo

Antenna

Antennas quantity3
Antenna gain level (max)4.2 dBi

Features

2.4 GHzYes
5 GHzYes
6 GHzNo
Maximum data transfer rate1750 Mbit/s
Frequency band2.4 - 2.4835; 5.15 - 5.35; 5.47 - 5.85 GHz
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
Transmitting power26.5 dBmW

Security

Security algorithms64-bit WEP, 128-bit WEP, SNMP, SNMPv3, SSH, SSID, SSL/TLS, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
MAC address filteringYes

Certificates

CertificationFCC, UL, CE, FCC, UL

Logistics data

Harmonized System (HS) code85176990

Packaging data

Package width205 mm
Package depth270 mm
Package height112 mm
Package weight1.08 kg

Technical details

Shipping (inner) case length59.9 cm
Shipping (inner) case width29.3 cm
Shipping (inner) case height24 cm
Shipping (inner) case net weight3.44 kg
Products per shipping (inner) case5 pc(s)
Pallet gross weight (air)311.4 kg
Master (outer) cases per pallet (air)48 pc(s)
Products per pallet (air)240 pc(s)
Pallet gross length110 cm
Pallet gross width120 cm
Pallet height (air)2.06 m
Pallet gross weight (sea)311.4 kg
Master (outer) cases per pallet (sea)48 pc(s)
Products per pallet (sea)240 pc(s)
Pallet height (sea)2.06 m
Shipping (inner) case gross weight6.05 kg

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Management features

Web-based managementYes

Weight & dimensions

Width190 mm
Depth190 mm
Height44.8 mm
Weight580 g

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 65 °C
Storage relative humidity (H-H)5 - 95%
