D-LINK DEM-311GT Transceiver
- Brand: D-Link
- Category: Network Accessories
- SKU: DLDEM311GT
- MPN: DEM-311GT
D-Link
D-Link 1-port Mini-GBIC SFP to 1000BaseSX, 550m for all
- SKU
- CNZ-DS-001218
- MPN
- DEM-311GT
- Rating
- No reviews yet
−8%
Overview
D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.

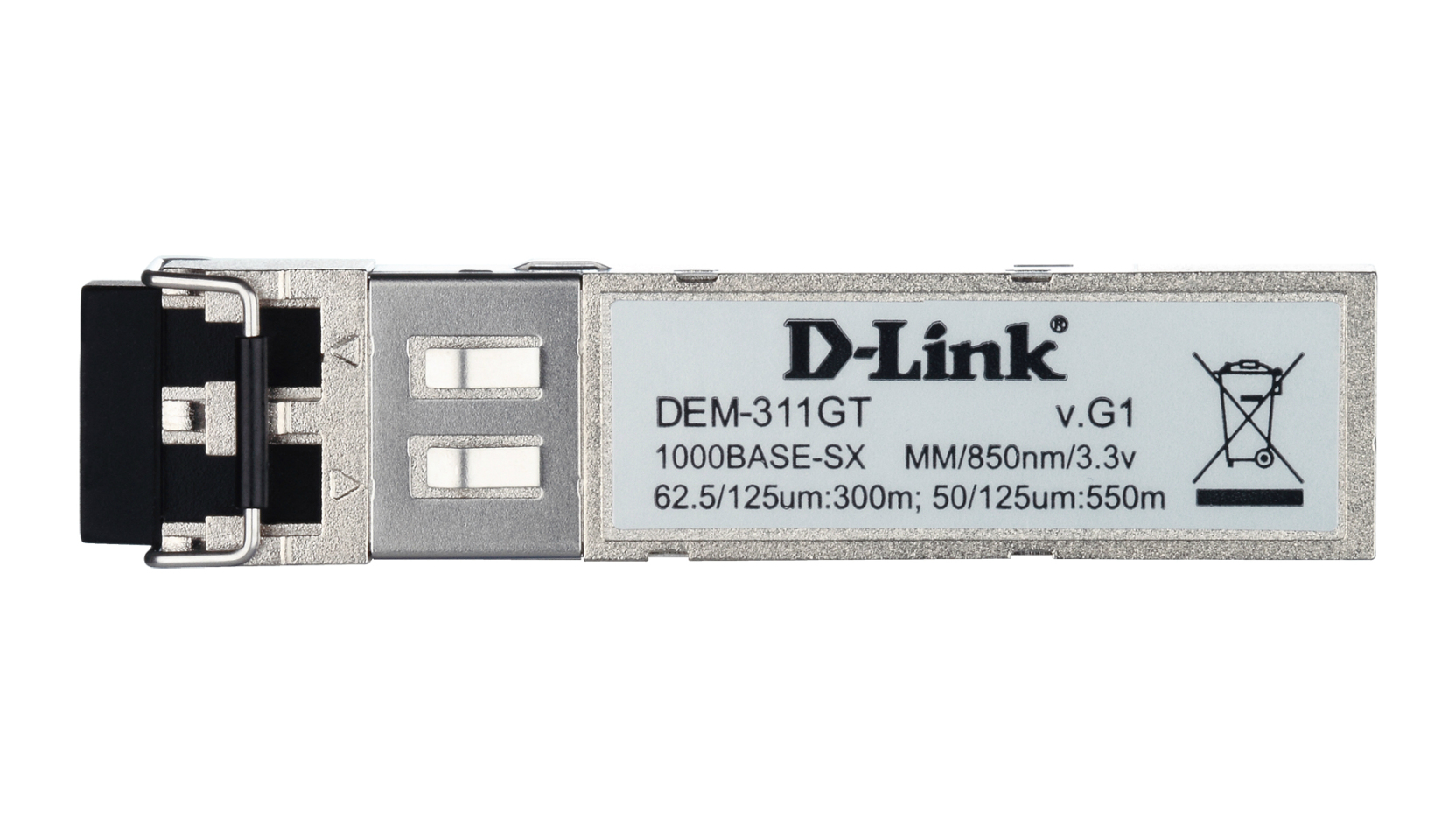

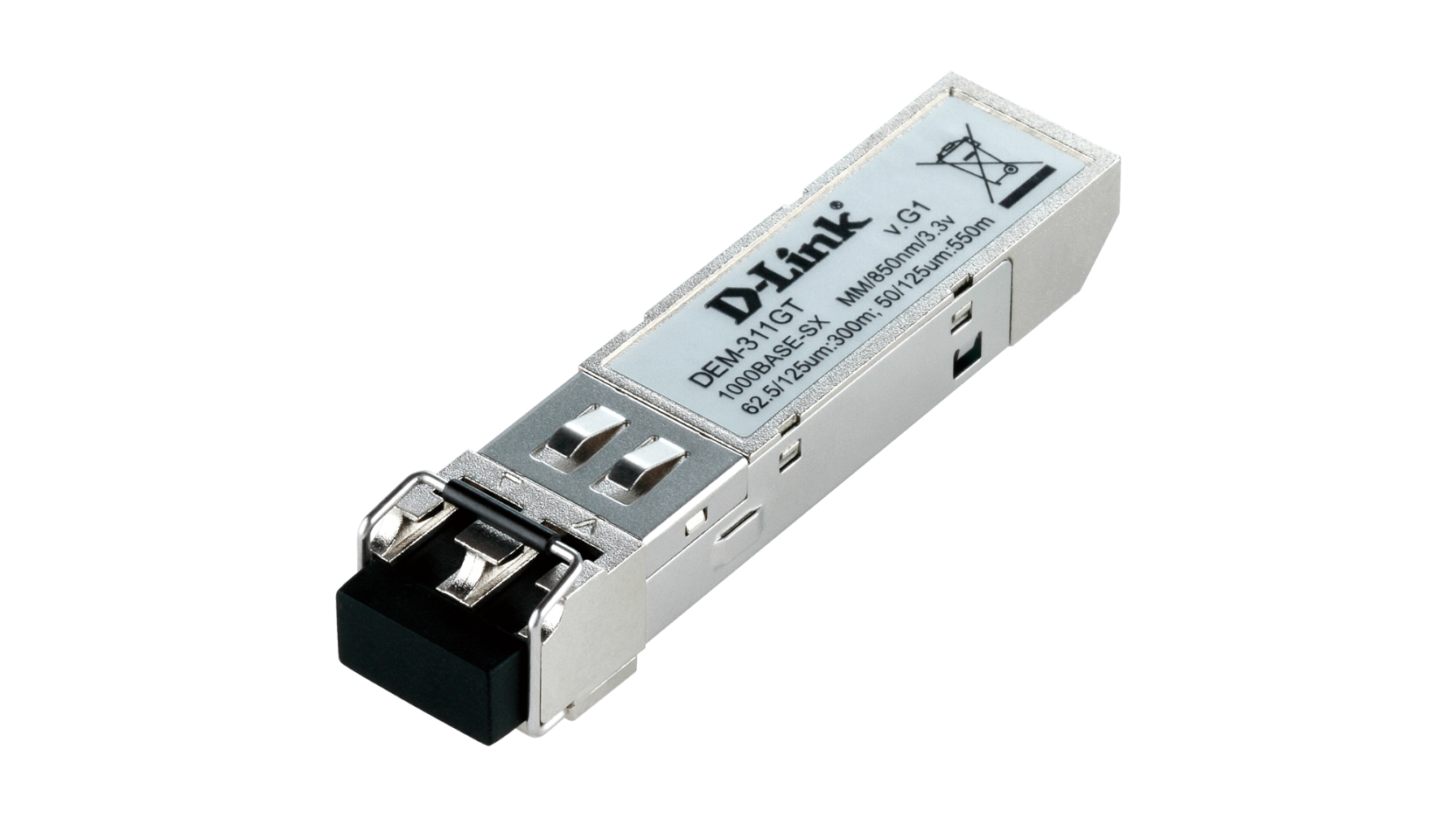

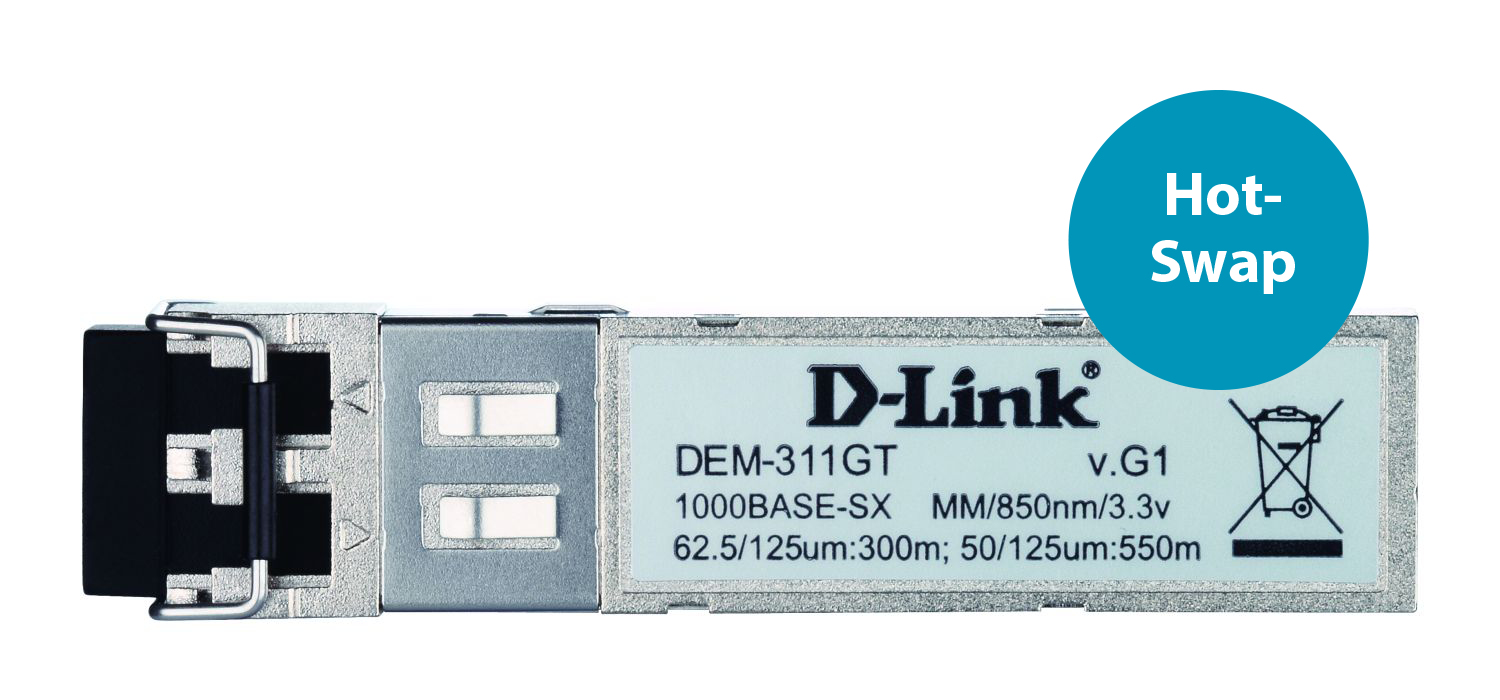

The DEM-311GT is a high performance 850nm multimode SFP/mini-GBIC transceiver. Supporting full duplex, Gigabit speeds on multimode fiber for distances of up to 220m/550m on 62.5µm/50µm fiber respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-311GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.
The DEM-311GT is a high performance 850nm multimode SFP/mini-GBIC transceiver. Supporting full duplex, Gigabit speeds on multimode fiber for distances of up to 220m/550m on 62.5µm/50µm fiber respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-311GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1000 Mbit/s
- Interface type: SFP
- Single-mode fiber (SMF) supported: No
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: LC
- SFP transceiver standard: SX
- Maximum transfer distance: 550 m
- Wavelength: 850 nm
- Networking standards: IEEE 802.3x
- Duplex system: Full
- Product colour: Metallic
- Housing material: Metal
- Hot-Plug support: Yes
- Maximum voltage: 6 V
- Certification: MSA, RoHS
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 85 °C
- Width: 13.8 mm
- Depth: 57.2 mm
- Height: 8.5 mm
- Package width: 74 mm
- Package depth: 131 mm
- Package height: 49 mm
Specifications
Power
| Maximum voltage | 6 V |
|---|
Features
| Product colour | Metallic |
|---|---|
| Housing material | Metal |
| Hot-Plug support | Yes |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3x |
| Duplex system | Full |
Certificates
| Certification | MSA, RoHS |
|---|
Logistics data
| Shipping (inner) case length | 36 cm |
|---|---|
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case height | 31 cm |
| Shipping (inner) case net weight | 3.2 kg |
| Products per shipping (inner) case | 50 pc(s) |
| Pallet gross weight (air) | 246.8 kg |
| Master (outer) cases per pallet (air) | 54 pc(s) |
| Products per pallet (air) | 2700 pc(s) |
| Pallet gross length | 102 cm |
| Pallet gross width | 122 cm |
| Pallet height (air) | 199 cm |
| Pallet gross weight (sea) | 246.8 kg |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Products per pallet (sea) | 2700 pc(s) |
| Pallet height (sea) | 199 cm |
| Shipping (inner) case gross weight | 4.2 kg |
| Harmonized System (HS) code | 85369010 |
Packaging data
| Package width | 74 mm |
|---|---|
| Package depth | 131 mm |
| Package height | 49 mm |
| Package weight | 64 g |
Weight & dimensions
| Width | 13.8 mm |
|---|---|
| Depth | 57.2 mm |
| Height | 8.5 mm |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
