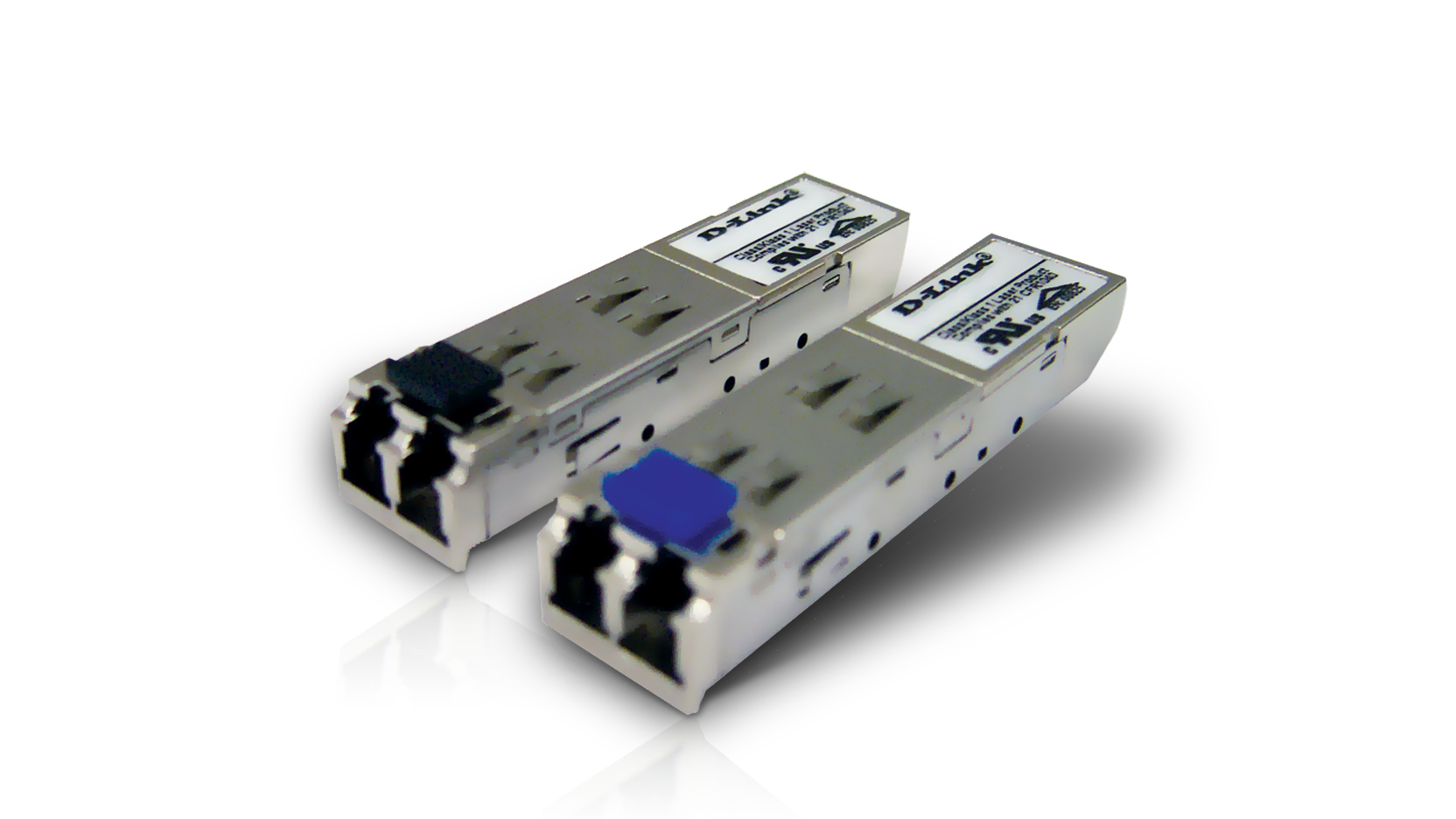

D-LINK DEM-312GT2 Transceiver
- Brand: D-Link
- Category: Network Accessories
- SKU: DLDEM312GT2
- MPN: DEM-312GT2
D-Link
D-Link 1-port Mini-GBIC SFP to 1000BaseSX Transceiver (2km)
- SKU
- CNZ-DS-001219
- MPN
- DEM-312GT2
- Rating
- No reviews yet
−7%
Overview
The DEM-312GT2 is a high performance 1310nm multimode SFP/(miniGBIC) transceiver. Supporting full duplex, Gigabit speeds on multimode fiber for distances of up to 2km on 62.5µm or 50µm fiber. The unit features a metal housing to reduce EMI and to increase durability. The DEM-312GT2 is hot pluggable and is backed by a standard 3-year product warranty and free technical support.
D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.
D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1000 Mbit/s
- Interface type: SFP
- Single-mode fiber (SMF) supported: No
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: LC
- Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
- SFP transceiver standard: SX
- Maximum transfer distance: 2000 m
- Ethernet interface type: Gigabit Ethernet
- Networking standards: IEEE 802.3z
- Cabling technology: 1000Base-SX
- Duplex system: Full
- Product colour: Metallic
- Housing material: Metal
- Hot-Plug support: Yes
- Maximum voltage: 3.3 V
- Certification: MSA, RoHS
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -25 - 55 °C
- Operating relative humidity (H-H): 5 - 95%
- Package width: 74 mm
- Package depth: 131 mm
- Package height: 49 mm
Specifications
Power
| Maximum voltage | 3.3 V |
|---|
Features
| Product colour | Metallic |
|---|---|
| Housing material | Metal |
| Hot-Plug support | Yes |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| SFP transceiver standard | SX |
| Maximum transfer distance | 2000 m |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3z |
| Cabling technology | 1000Base-SX |
| Duplex system | Full |
Certificates
| Certification | MSA, RoHS |
|---|
Logistics data
| Shipping (inner) case length | 36 cm |
|---|---|
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case height | 31 cm |
| Shipping (inner) case net weight | 3.2 kg |
| Products per shipping (inner) case | 50 pc(s) |
| Pallet gross weight (air) | 246.8 kg |
| Master (outer) cases per pallet (air) | 54 pc(s) |
| Products per pallet (air) | 2700 pc(s) |
| Pallet gross length | 102 cm |
| Pallet gross width | 122 cm |
| Pallet height (air) | 199 cm |
| Pallet gross weight (sea) | 246.8 kg |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Products per pallet (sea) | 2700 pc(s) |
| Pallet height (sea) | 199 cm |
| Shipping (inner) case gross weight | 4.2 kg |
| Harmonized System (HS) code | 85177900 |
Other features
| Dimensions (WxDxH) | 29.8 x 11.8 x 56.3 mm |
|---|
Packaging data
| Package width | 74 mm |
|---|---|
| Package depth | 131 mm |
| Package height | 49 mm |
| Package weight | 64 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
