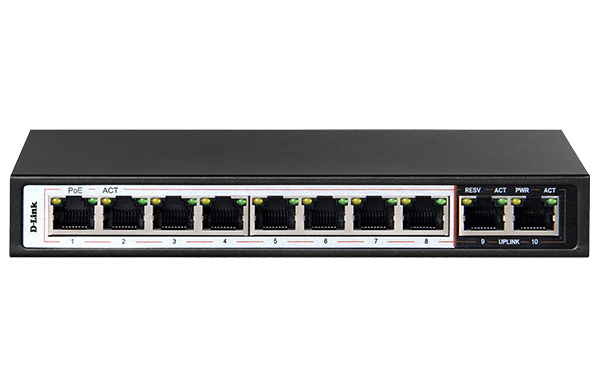

D-LINK DES-F1010P-E PoE Switch

  • Brand: D-Link
  • Category: Switches
  • SKU: DLDESF1010PE
  • MPN: DES-F1010P-E
D-Link

D-Link DES-F1010P-E network switch Unmanaged L2 Fast Ethernet…

SKU
CNZ-DS-001234
MPN
DES-F1010P-E

Overview

Built for your Needs

Robust and cost-effective PoE solution to provide power for your PoE powered devices such as IP cameras, CCTV, VoIP, Wi-Fi Access Points, etc.

Up to 250m PoE and Data Transmission

Equipped with PoE extend technology, the DES-F1010P-E have the capability to supply 802.3af/at PoE and data connectivity on cables up to 250m long.

6KV Surge Protection

D-Link DES-F1010P-E switch is enhanced with 6KV surge protection. This effectively protects the switch against sudden electrical surges caused by events such as lightning strikes or unstable electrical current. Built-in 6 kV surge protection significantly reduces the chances of equipment being damaged from electrical surges, and effectively lowers maintenance costs by minimizing the need for expensive equipment repairs or replacement.

Enhanced with VLAN Function

With a flick of button you can isolate switch ports from each other, but still allowing the devices to communicate via the uplink ports. This feature not only adds security but can also effectively suppress network storms and improve network performance.

Enhanced with QoS

The DES-1010P-E switch performance is enhanced with QoS (Quality of Service) feature to ensure that critical network services such as IP surveillance, VoIP, IPTV are always given high priority. This feature makes the switch a perfect solution for IP Camera/CCTV applications.

Intelligent Detection

With AI PoE feature enabled the switch can automatically detect an unresponsive PoE device and reboot the devices in order to recover it.

Key features

  • Switch type: Unmanaged
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 10
  • Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
  • Fast Ethernet (copper) ports quantity: 10
  • Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
  • Full duplex: Yes
  • Half duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • VLAN support: Yes
  • Switching capacity: 2 Gbit/s
  • Store-and-forward: Yes
  • Rack mounting: No
  • Stackable: No
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Fanless: Yes
  • Power supply included: Yes
  • AC input voltage: 100 - 240 V

Specifications

Power

Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Design

Rack mountingNo
StackableNo
Product colourBlack
Housing materialMetal
LED indicatorsYes

Network

Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Full duplexYes
Half duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes
VLAN supportYes

Performance

FanlessYes

Certificates

Compliance certificatesCE
CertificationFCC

Sustainability

Sustainability complianceYes

Data transmission

Switching capacity2 Gbit/s
Store-and-forwardYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity10
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Fast Ethernet (copper) ports quantity10

Management features

Switch typeUnmanaged
Switch layerL2
Quality of Service (QoS) supportYes

Weight & dimensions

Width184 mm
Depth75 mm
Height27 mm
Weight950 g

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity8
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget96 W
