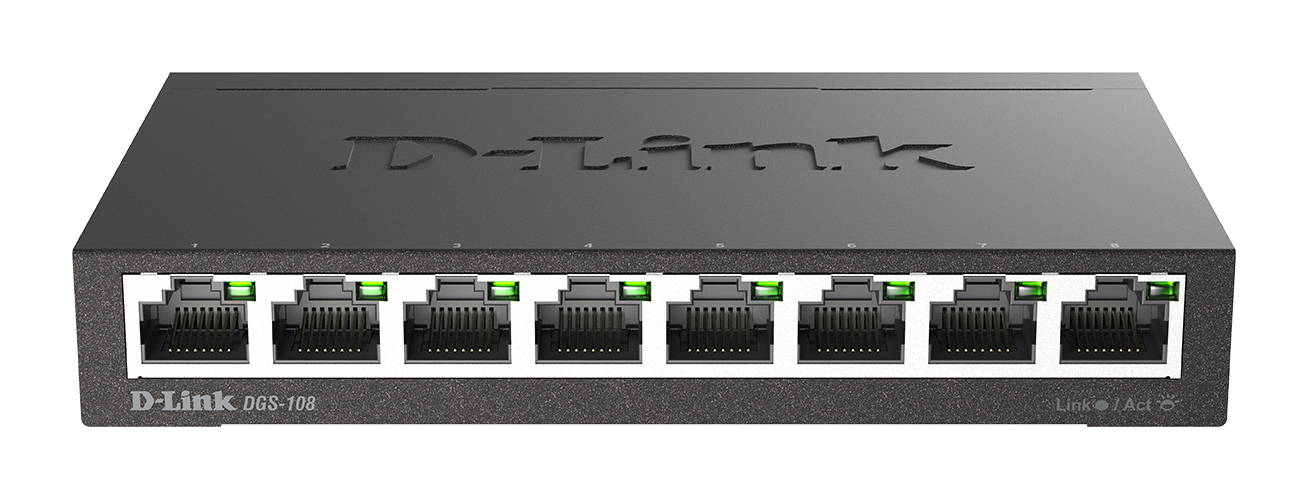

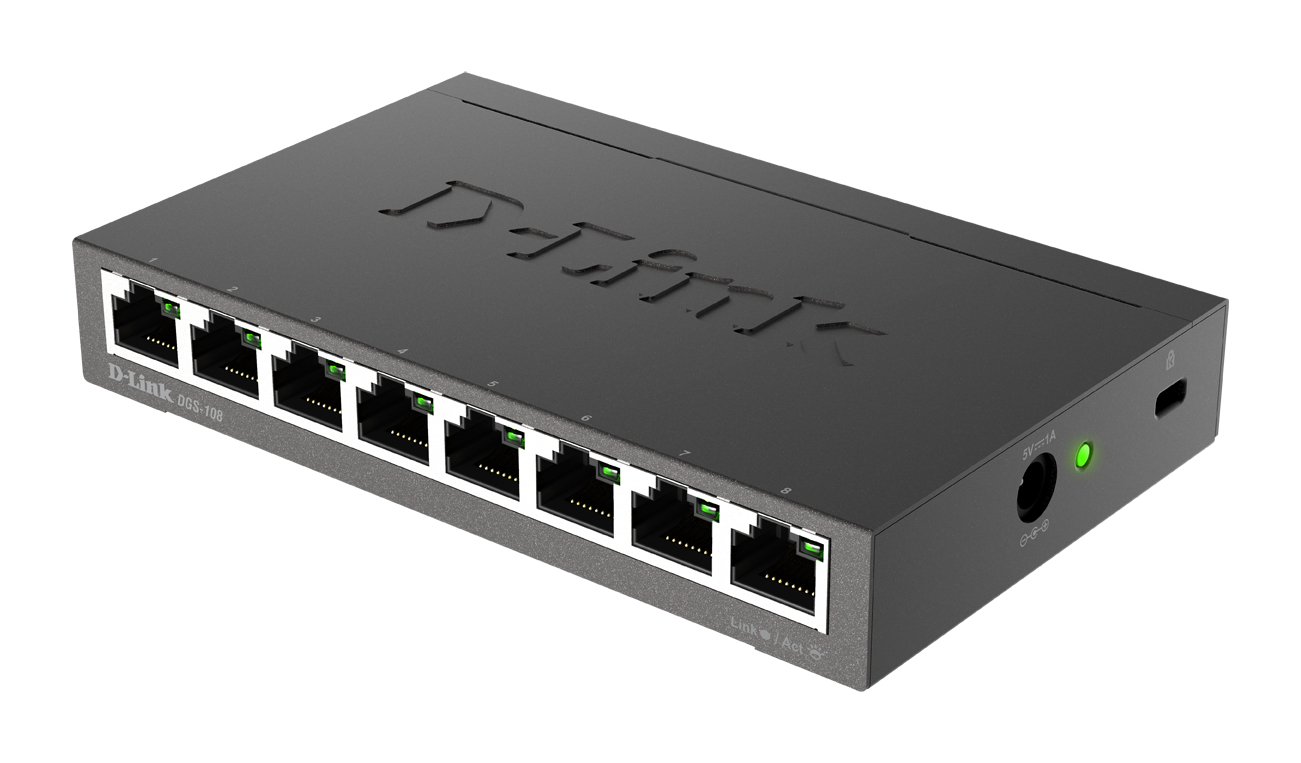

D-Link DGS-108 network switch Unmanaged L2 Gigabit Ethernet…

SKU: CNZ-DS-001244
MPN: DGS-108
Rating: No reviews yet

Overview

D-Link DGS-108. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Form factor: Desktop

Key features

Switch type: Unmanaged
Switch layer: L2
Quality of Service (QoS) support: Yes
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

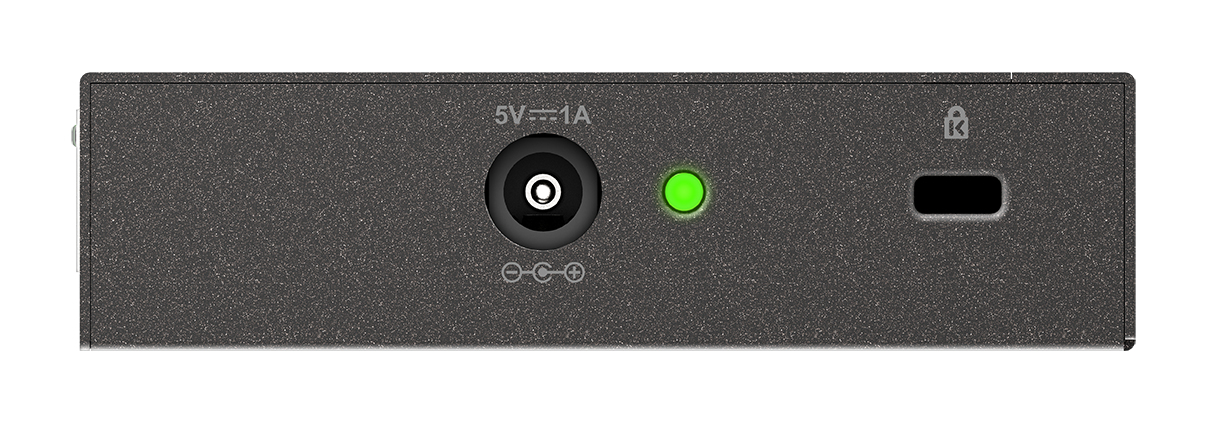

Power connector: DC-in jack
Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support: Yes
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex: Yes
Flow control support: Yes
Auto MDI/MDI-X: Yes
Supported data transfer rates: 10/100/1000 Mbps
Switching capacity: 16 Gbit/s
MAC address table: 8000 entries
Store-and-forward: Yes
Maximum data transfer rate: 1 Gbit/s
Jumbo frames support: Yes
Packet buffer memory: 0.192 MB
MAC address filtering: Yes
Rack mounting: No
Form factor: Desktop
Product colour: Black
Housing material: Metal

Specifications

Power

Power source	AC
Input current	1 A
Input voltage	5 V
Power consumption (typical)	5.12 W

Design

Rack mounting	No
Form factor	Desktop
Product colour	Black
Housing material	Metal
LED indicators	Link, Power

Network

Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	Yes
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes

Security

MAC address filtering	Yes

Performance

Mean time between failures (MTBF)	1467882 h

Certificates

Certification	FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS

Logistics data

Harmonized System (HS) code	85176990

Other features

Data transfer rate	2000 Mbit/s
Dimensions (WxDxH)	162 x 102 x 28 mm
Connectivity technology	Wired

Packaging data

Included power plug types	EU

Data transmission

Supported data transfer rates	10/100/1000 Mbps
Switching capacity	16 Gbit/s
MAC address table	8000 entries
Store-and-forward	Yes
Maximum data transfer rate	1 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	0.192 MB

Technical details

Shipping (inner) case height	44.3 cm
Shipping (inner) case width	26 cm
Shipping (inner) case length	37 cm
Shipping (inner) case net weight	7.1 kg
Products per shipping (inner) case	10 pc(s)
Pallet gross weight (air)	398.9 kg
Master (outer) cases per pallet (air)	48 pc(s)
Products per pallet (air)	480 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	196.7 cm
Pallet gross weight (sea)	398.9 kg
Master (outer) cases per pallet (sea)	48 pc(s)
Products per pallet (sea)	480 pc(s)
Pallet height (sea)	196.7 cm
Shipping (inner) case gross weight	7.79 kg

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack

Management features

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes

Weight & dimensions

Width	138.7 mm
Depth	85 mm
Height	22.4 mm
Weight	270 g

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	17.47 BTU/h
