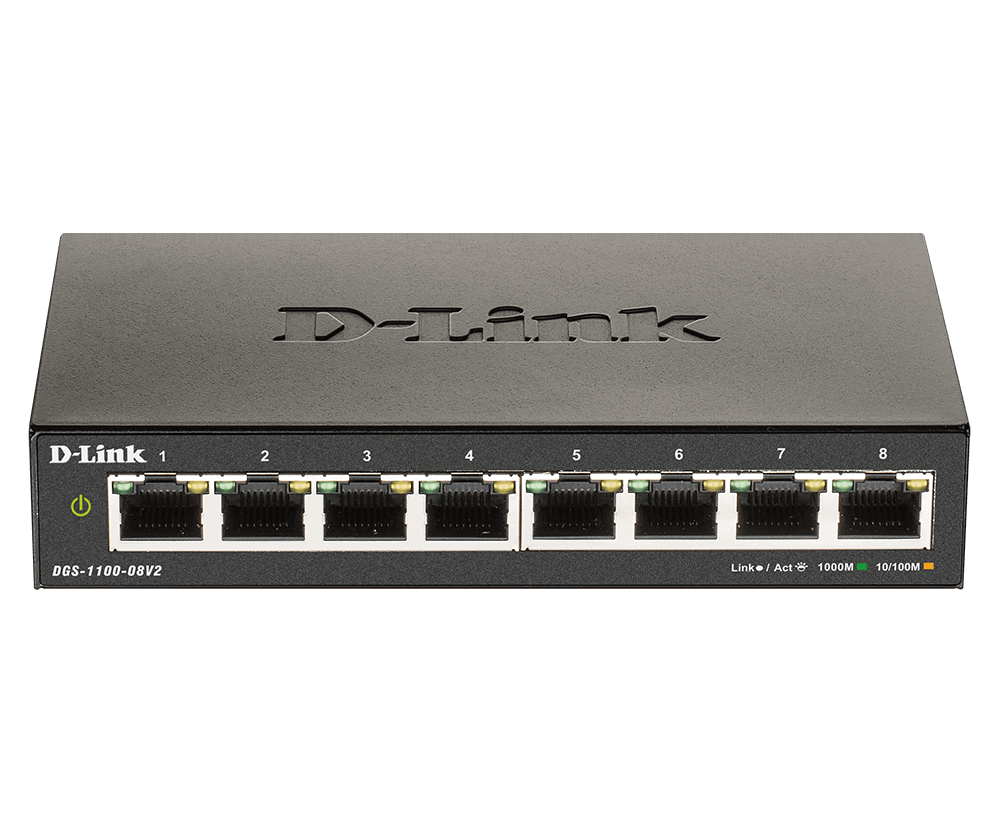

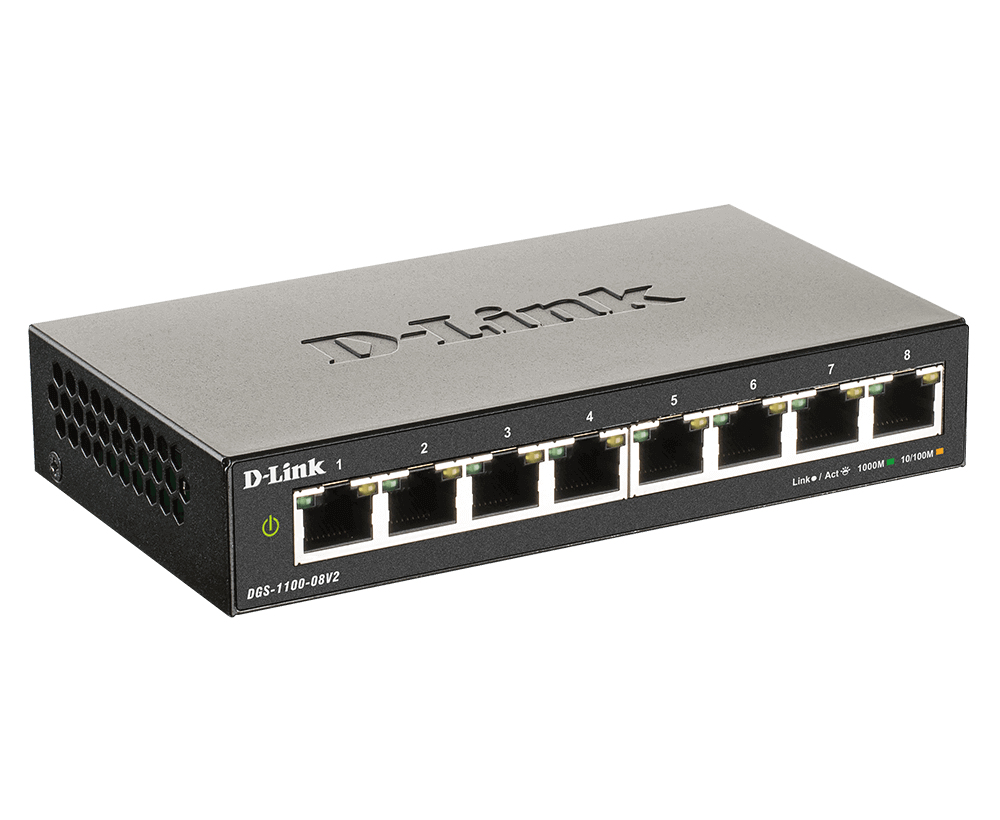

D-LINK DGS-1100-08V2 Switch
- Brand: D-Link
- Category: Switches
- SKU: DLDGS110008V2
- MPN: DGS-1100-08V2
D-Link
D-Link Gigabit Smart Managed Switches DGS-1100 Series
- SKU
- CNZ-DS-001247
- MPN
- DGS-1100-08V2
- Rating
- No reviews yet
−12%
Overview
Web UI
Easy to use web interface to access management features
VLANs
Segment your network into VLANs.
Easy deployment with automatic configuration
Simply connect the switch to your network and it detects D-Link and third-party devices for easy administration
Energy Efficient Design
Automatic power saving features to reduce power usage
Simple. Easy. Smart.
DGS-1100 Smart Switch Series provides an affordable solution for environments that require simple network management.
Smart Web UI
The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.
Free Nuclias Connect remote network management software.
Download our free Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform, or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100)4 provides hardware-based, centralised network management.
PoE and PoE+, with budgets up to 370W
The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
Easy to use web interface to access management features
VLANs
Segment your network into VLANs.
Easy deployment with automatic configuration
Simply connect the switch to your network and it detects D-Link and third-party devices for easy administration
Energy Efficient Design
Automatic power saving features to reduce power usage
Simple. Easy. Smart.
DGS-1100 Smart Switch Series provides an affordable solution for environments that require simple network management.
Smart Web UI
The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.
Free Nuclias Connect remote network management software.
Download our free Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform, or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100)4 provides hardware-based, centralised network management.
PoE and PoE+, with budgets up to 370W
The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
Key features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8
- Power connector: DC-in jack
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 1000BASE-T
- Port mirroring: Yes
- Full duplex: Yes
- Half duplex: Yes
- Flow control support: Yes
- Broadcast storm control: Yes
- Auto MDI/MDI-X: Yes
- Head-of-line (HOL) blocking: Yes
- Auto-negotiation: Yes
- VLAN support: Yes
- Virtual LAN features: Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
- Number of VLANs: 4094
- Switching capacity: 16 Gbit/s
- Forwarding rate: 11.9 Mpps
Specifications
Power
| Power source | DC |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 4.94 W |
Design
| Rack mounting | No |
|---|---|
| Product colour | Black |

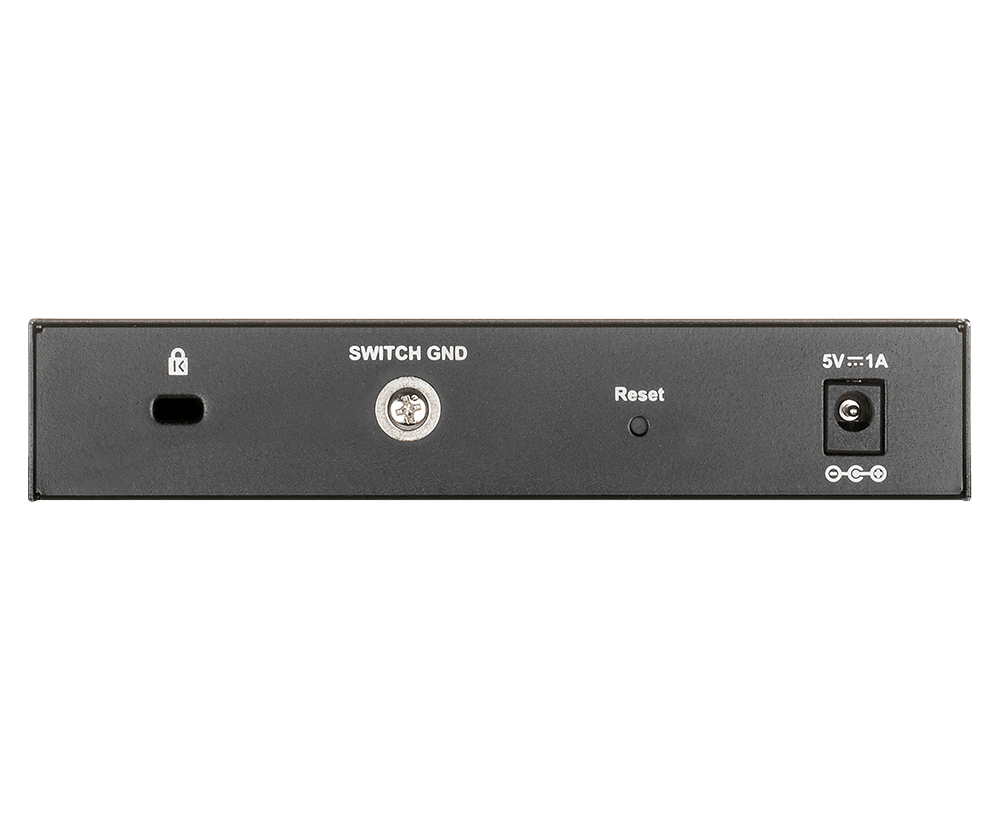

| Reset button | Yes |
| Number of fans | 0 fan(s) |
Network
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Head-of-line (HOL) blocking | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4094 |
Security
| IGMP snooping | Yes |
|---|---|
| IGMP entries | 128 |
| Static port security | Yes |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
Performance
| Noise level | 0 dB |
|---|---|
| Fanless | Yes |
| Mean time between failures (MTBF) | 1456992 h |
Certificates
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI, cUL |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Data transmission
| Switching capacity | 16 Gbit/s |
|---|---|
| Forwarding rate | 11.9 Mpps |
| MAC address table | 4000 entries |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 1.5 MB |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power connector | DC-in jack |
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Weight & dimensions
| Width | 145 mm |
|---|---|
| Depth | 82 mm |
| Height | 28 mm |
| Weight | 340 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
| Heat dissipation | 16.85 BTU/h |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
