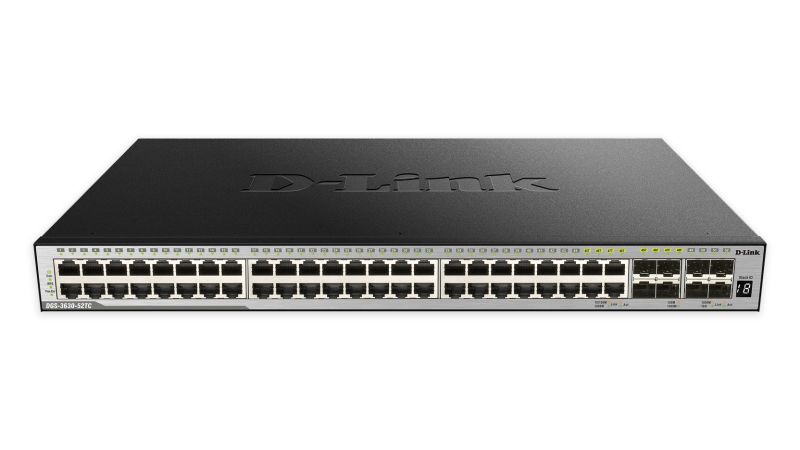

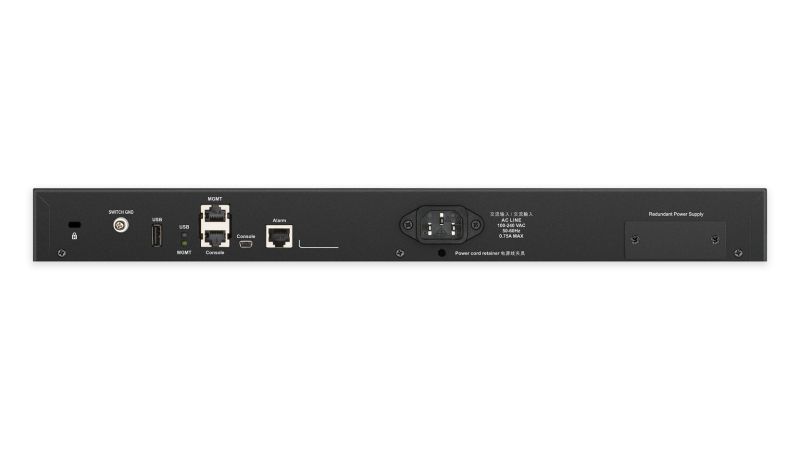

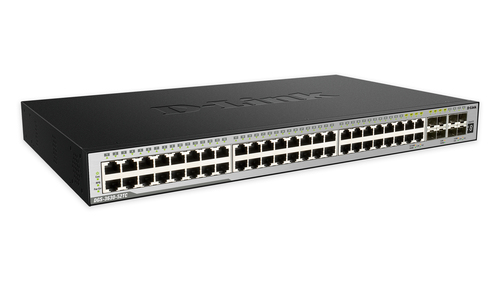

D-Link DGS-3630-52TC Switch

  • Brand: D-Link
  • Category: Switches
  • SKU: DLDGS363052TC
  • MPN: DGS-3630-52TC
D-Link

D-Link 48-port Layer 3 Stackable Managed Gigabit Switch including 4…

SKU
CNZ-DS-001284
MPN
DGS-3630-52TC

Overview

The DGS-3630 Series Gigabit L3 Stackable Managed Switches are a range of switches designed for Small to Medium Businesses (SMBs), Small to Medium Enterprises (SMEs), enterprises and ISPs. With Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches.

Stackable Managed Switches
- Designed for Small to Medium Businesses, Enterprises and ISPs
- Deliver high performance, flexibility, fault tolerance, and advanced software features
- Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches
- High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications
- DGS-3630-28PC and DGS-3630-52PC feature Power over Ethernet, which allows PoE-powered devices to be powered by the switch through a standard Ethernet cable.

Outperforming the competition
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.

Versatile Management

The DGS-3630 Series provides:

- Network Assistant Utility
- Industry-standard CLI
- Intuitive web-based management interface

Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.

A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.

High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.

Scale your network using just a stacking cable and without the need for stacking modules.

Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.

Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.

The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.

Key features

  • Switch type: Managed
  • Switch layer: L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Traffic classification: Yes
  • ARP inspection: Yes
  • System event log: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 44
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 44
  • Combo SFP ports quantity: 4
  • SFP+ module slots quantity: 4
  • Console port: RJ-45/Mini-USB
  • USB 2.0 ports quantity: 1
  • Power connector: AC-in jack
  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: Yes
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Routing entries: 16000
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes

Specifications

Power

Power sourceAC
Power supply includedYes
Redundant power supply (RPS) supportYes
Number of power supply units1
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)62 W
Surge protectionYes
Surge protection voltage6 kV

Design

Rack mountingYes
StackableYes
Form factor1U
Product colourBlack
LED indicatorsYes
Number of fans2 fan(s)
SafetycUL, CB, CE, CCC, BSM
Electromagnetic compatibilityCE, FCC Class A, C-Tick, VCCI, BSMI, CCC

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportYes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroringYes
Full duplexYes
Routing entries16000
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Spanning tree protocolYes
Ethernet Ring Protection Switching (ERPS)Yes
VLAN supportYes
Virtual LAN featuresIP subnet–based VLAN, MAC address-based VLAN, MVRP, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN
Number of VLANs4094

Security

DHCP featuresDHCP auto-config, DHCP client, DHCP guarding, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)Yes
IGMP snoopingYes
Security algorithms802.1x RADIUS, SSH, SSH-2, SSL/TLS
MAC address filteringYes
SSH/SSL supportYes
Loop protectionYes
BPDU filtering/protectionYes
AuthenticationGuest VLAN, Port-based authentication
Root protectionYes
Authentication typeIEEE 802.1x
Queue scheduling algorithmsSP, WRR+SP, Weighted Round Robin (WRR), Weighted random early detection (WRED)

Protocols

Management protocolsSNMP, NTPv3/v4, Telnet
Routing protocolsBGP4, OSPFv3, RIP, RIP-1, RIP-2, RIPng, VRRP
IP Source Guard (IPSG)Yes

Performance

Virtual stacking (units)32
Noise level53.9 dB
Dying GaspYes
Mean time between failures (MTBF)263936.78 h

Certificates

Compliance certificatesBSMI, CCC, CE, Federal Communications Commission (FCC), RoHS, VCCI

Logistics data

Harmonized System (HS) code85176990

Packaging data

Package width538 mm
Package depth560 mm
Package height170 mm
Package weight5.55 kg

Data transmission

Switching capacity176 Gbit/s
Forwarding rate130.95 Mpps
MAC address table68000 entries
Number of queues8
Static routeYes
Number of static routes512
Number of IP interfaces256
Jumbo frames supportYes
Jumbo frames12000
Packet buffer memory4 MB

Technical details

Shipping (inner) case height57.2 cm
Shipping (inner) case width36.2 cm
Shipping (inner) case length57.9 cm
Shipping (inner) case net weight14.3 kg
Products per shipping (inner) case3 pc(s)
Pallet gross weight (air)578.3 kg
Master (outer) cases per pallet (air)32 pc(s)
Products per pallet (air)96 pc(s)
Pallet gross length110 cm
Pallet gross width120 cm
Pallet height (air)193.5 cm
Pallet gross weight (sea)578.3 kg
Master (outer) cases per pallet (sea)32 pc(s)
Products per pallet (sea)96 pc(s)
Pallet height (sea)193.5 cm
Shipping (inner) case gross weight17.5 kg

Multicast features

Multicast supportYes
Multicast Listener Discovery (MLD) snoopingY

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity44
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity44
Combo SFP ports quantity4
SFP+ module slots quantity4
Console portRJ-45/Mini-USB
USB 2.0 ports quantity1
Power connectorAC-in jack

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
Traffic classificationYes
ARP inspectionYes
System event logYes

Weight & dimensions

Width441 mm
Depth259.8 mm
Height44 mm
Weight4.04 kg

Operational conditions

Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)5 - 95%
Heat dissipation212 BTU/h

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Questions

$8,861.89inc GST
