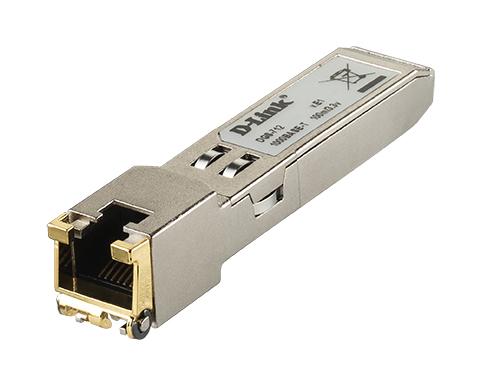

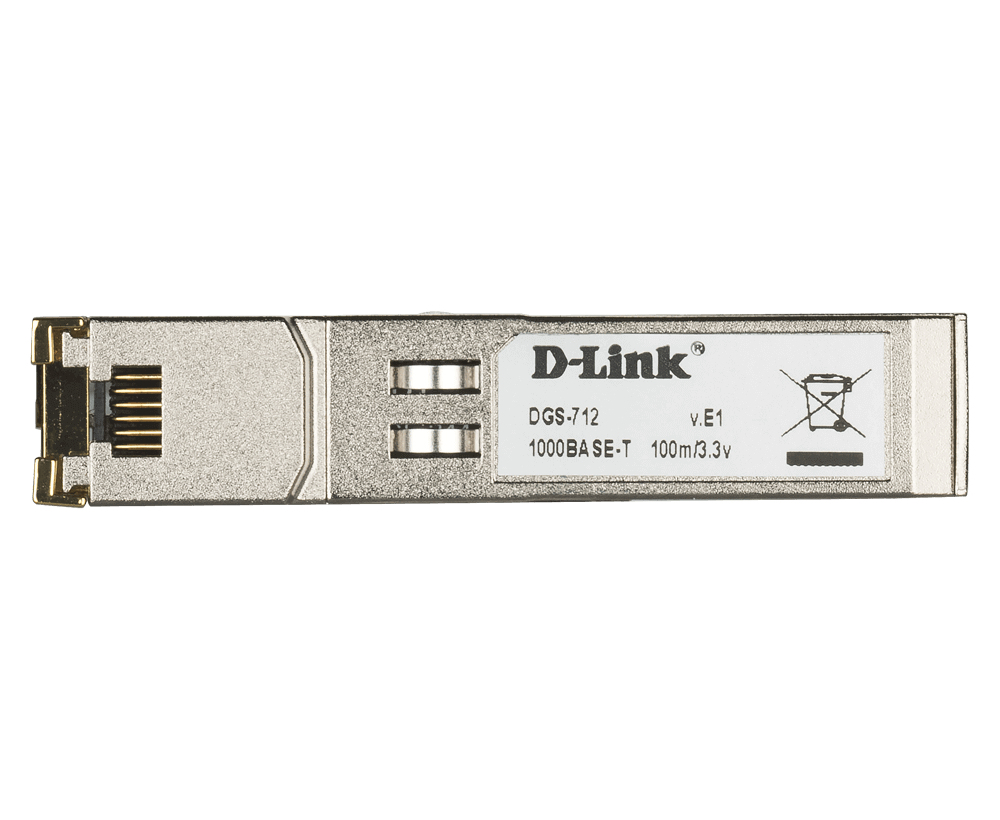

D-LINK DGS-712 Transceiver
- Brand: D-Link
- Category: Network Accessories
- SKU: DLDGS712
- MPN: DGS-712
D-Link
D-Link SFP 10/100/1000 BASE-T Copper Transceiver
- SKU
- CNZ-DS-001286
- MPN
- DGS-712
- Rating
- No reviews yet
−9%
Overview
Gigabit Ethernet connectivity for data centers, enterprise wiring closets, and service provider transport applications
The D-Link DGS-712 1000Base-T Copper SFP Transceiver Module is a hot-swappable SFP (Small Form-Factor Pluggable) transceiver that plugs into standard SFP slots on switches and supports Gigabit Ethernet. The DGS-712 offers a wide variety of Gigabit Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications. The DGS-712 is an external transceiver designed for insertion into SFP slots of network devices for transmission and reception of data signals from fiber ports. These transceivers provide Gigabit operation and physical compactness to deliver the speed, reliable data transfer, and deployment flexibility that today’s networks require.
The D-Link DGS-712 1000Base-T Copper SFP Transceiver Module is a hot-swappable SFP (Small Form-Factor Pluggable) transceiver that plugs into standard SFP slots on switches and supports Gigabit Ethernet. The DGS-712 offers a wide variety of Gigabit Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications. The DGS-712 is an external transceiver designed for insertion into SFP slots of network devices for transmission and reception of data signals from fiber ports. These transceivers provide Gigabit operation and physical compactness to deliver the speed, reliable data transfer, and deployment flexibility that today’s networks require.
Key features
- SFP transceiver type: Copper
- Maximum data transfer rate: 1000 Mbit/s
- Interface type: SFP
- SFP transceiver standard: T, TX
- Maximum transfer distance: 100 m
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
- Copper ethernet cabling technology: 10BASE, 100BASE, 1000BASE
- Product colour: Metallic
- Mean time between failures (MTBF): 5617000 h
- Maximum voltage: 3.3 V
- Safety: CSA, TUV
- Certification: FCC Class A CE Class A VCCI Class A
- Operating temperature (T-T): 0 - 85 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
- Width: 13.7 mm
- Depth: 70.2 mm
- Height: 13.4 mm
- Weight: 20 g
- Package width: 74 mm
- Package depth: 131 mm
Specifications
Power
| Maximum voltage | 3.3 V |
|---|
Features
| Product colour | Metallic |
|---|---|
| Mean time between failures (MTBF) | 5617000 h |
Performance
| SFP transceiver type | Copper |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| SFP transceiver standard | T, TX |
| Maximum transfer distance | 100 m |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE, 100BASE, 1000BASE |
Certificates
| Safety | CSA, TUV |
|---|---|
| Certification | FCC Class A CE Class A VCCI Class A |
Logistics data
| Shipping (inner) case length | 36 cm |
|---|---|
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case height | 31 cm |
| Shipping (inner) case net weight | 3.2 kg |
| Products per shipping (inner) case | 50 pc(s) |
| Pallet gross weight (air) | 246.8 kg |
| Master (outer) cases per pallet (air) | 54 pc(s) |
| Products per pallet (air) | 2700 pc(s) |
| Pallet gross length | 102 cm |
| Pallet gross width | 122 cm |
| Pallet height (air) | 199 cm |
| Pallet gross weight (sea) | 246.8 kg |
| Master (outer) cases per pallet (sea) | 54 pc(s) |
| Products per pallet (sea) | 2700 pc(s) |
| Pallet height (sea) | 199 cm |
| Shipping (inner) case gross weight | 4.2 kg |
| Harmonized System (HS) code | 85176990 |
Packaging data
| Package width | 74 mm |
|---|---|
| Package depth | 131 mm |
| Package height | 49 mm |
| Package weight | 64 g |
Weight & dimensions
| Width | 13.7 mm |
|---|---|
| Depth | 70.2 mm |
| Height | 13.4 mm |
| Weight | 20 g |
Operational conditions
| Operating temperature (T-T) | 0 - 85 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Questions
