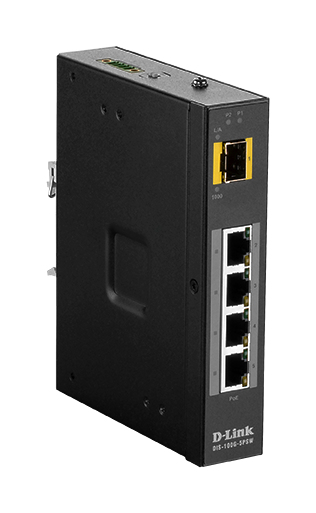

D-LINK DIS-100G-5PSW Switch

  • Brand: D-Link
  • Category: Switches
  • SKU: DLDIS100G5PSW
  • MPN: DIS-100G-5PSW
D-Link

D-Link 5-Port Unmanaged Switch with 4 x 10/100/1000BaseT(X) ports (4…

SKU
CNZ-DS-001298
MPN
DIS-100G-5PSW

Overview

Unmanaged Plug and Play with SFP and PoE
Plug in and go. The DIS-100G-5PSW reliably forwards Ethernet frames.

Gigabit Connectivity with PoE and SFP slots
Designed with 4 x 100/1000Base-T PoE ports and 1 x 100/1000Base SFP slot to suit a range of devices and network layouts.

Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

PoE Support
With its 120 W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.

Fast Deployment

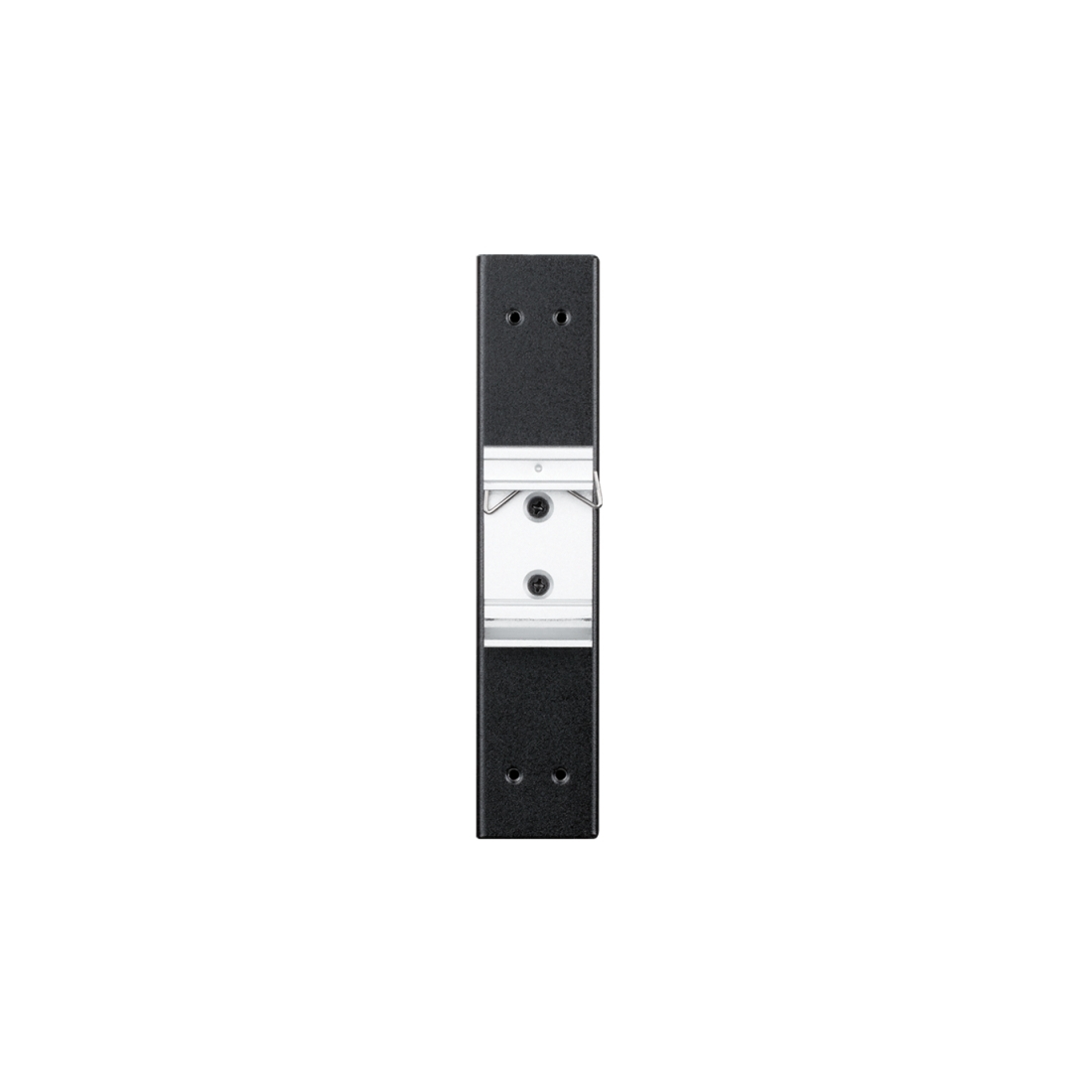

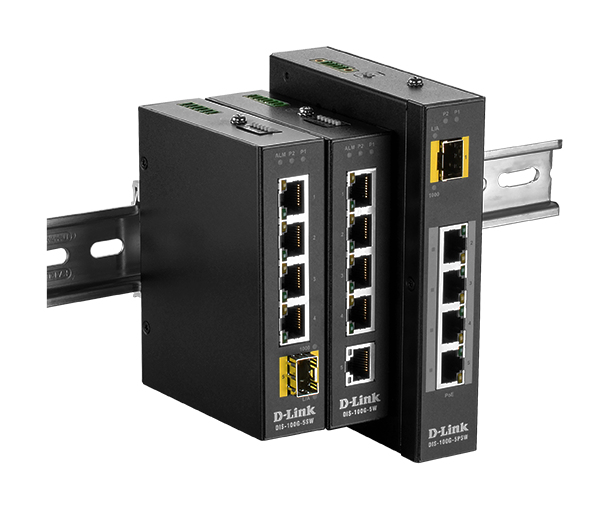

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 139 x 29 x 107 mm.

Key features

  • Switch type: Unmanaged
  • Switch layer: L2
  • Traffic shaping: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 4
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 1
  • Fiber optic connector: LC
  • Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: No
  • Full duplex: Yes
  • Flow control support: Yes
  • Broadcast storm control: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • Switching capacity: 10 Gbit/s
  • Forwarding rate: 7.44 Mpps
  • MAC address table: 2000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Multicast support: Yes
  • Rack mounting: No
  • Product colour: Black
  • LED indicators: LAN, PoE, Power

Specifications

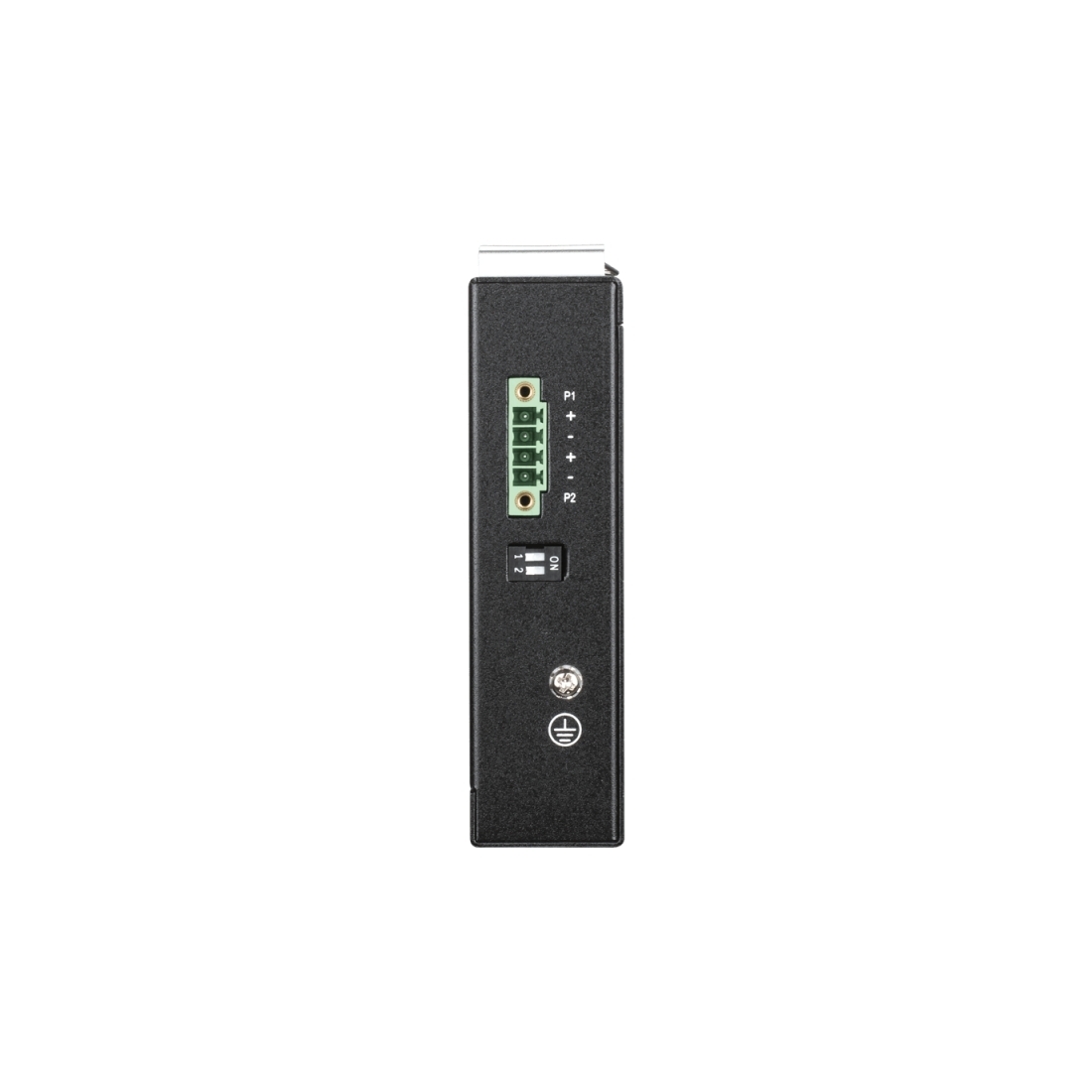

Power

DC input voltage12 - 58 V
Power consumption (max)120.2 W
Power protection featuresOver current, Reverse polarity

Design

Rack mountingNo
Product colourBlack
LED indicatorsLAN, PoE, Power
Wall mountableYes
DIN rail mountingYes
Electromagnetic compatibilityFCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)

Network

Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Full duplexYes
Flow control supportYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
Auto-negotiationYes

Certificates

CertificationIEC60068-2-6; IEC60068-2-27; IEC60068-2-32, UL 61010-1, UL C1D2, CE, FCC, RoHS, WEEE

Logistics data

Harmonized System (HS) code85176990

Packaging data

Package width181 mm
Package depth210 mm
Package height75 mm
Package weight700 g

Data transmission

Switching capacity10 Gbit/s
Forwarding rate7.44 Mpps
MAC address table2000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames9000

Technical details

Shipping (inner) case height24 cm
Shipping (inner) case width38 cm
Shipping (inner) case length39 cm
Shipping (inner) case net weight7 kg
Products per shipping (inner) case10 pc(s)
Pallet gross weight (air)251.3 kg
Master (outer) cases per pallet (air)30 pc(s)
Products per pallet (air)300 pc(s)
Pallet gross length120 cm
Pallet gross width110 cm
Pallet height (air)133.5 cm
Pallet gross weight (sea)391.9 kg
Master (outer) cases per pallet (sea)48 pc(s)
Products per pallet (sea)480 pc(s)
Pallet height (sea)2.06 m
Shipping (inner) case gross weight7.81 kg

Multicast features

Multicast supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity1
Fiber optic connectorLC

Management features

Switch typeUnmanaged
Switch layerL2
Traffic shapingYes

Weight & dimensions

Width139 mm
Depth29 mm
Height107 mm
Weight375 g

Operational conditions

Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)0 - 95%
Heat dissipation410.12 BTU/h

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Power over Ethernet (PoE) voltage range54 - 58 V
Total Power over Ethernet (PoE) budget120 W
