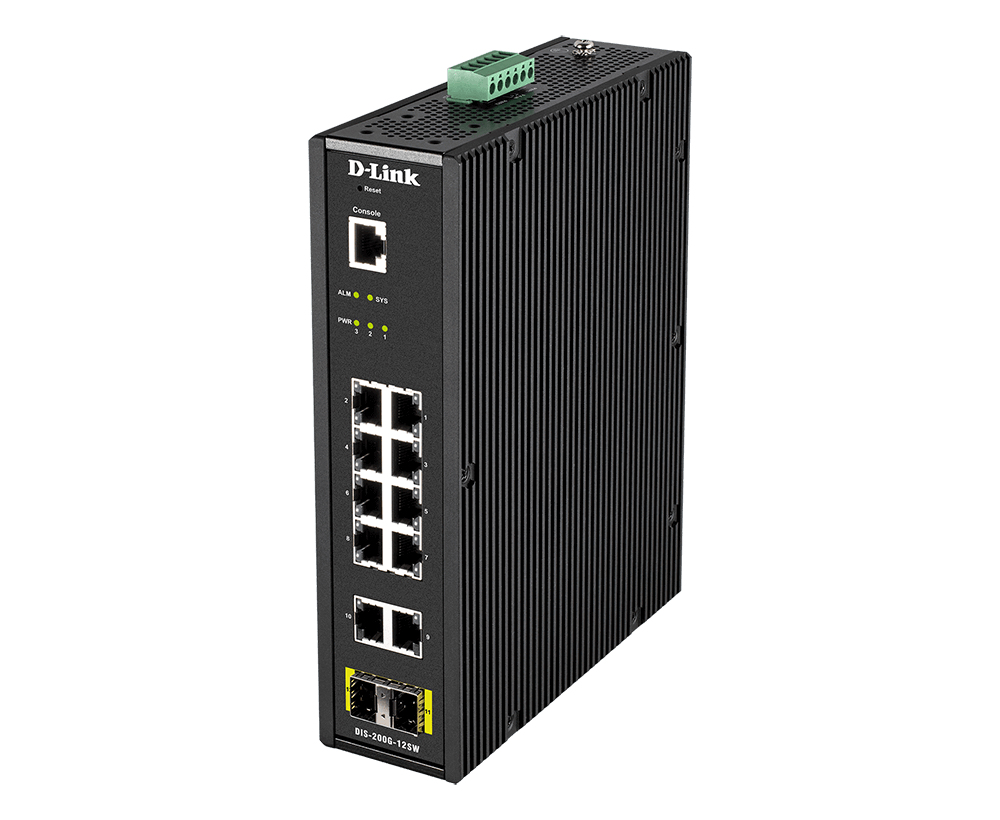

D-LINK DIS-200G-12SW Switch

  • Brand: D-Link
  • Category: Switches
  • SKU: DLDIS200G12SW
  • MPN: DIS-200G-12SW
D-Link

D-Link DIS-200G-12SW network switch Managed L2 Gigabit Ethernet…

SKU
CNZ-DS-001301
MPN
DIS-200G-12SW

Overview

Durable and Reliable Design
The DIS-200G Series switches are housed in a highly resistant IP30-rated metal casing to protect them from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-200G Series from unwanted effects when operating in environments with strong electromagnetic interference.

High Redundancy and Reliability
The DIS-200G Series supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the device continues to operate in the event of a primary power supply failure.

Surveillance Traffic Optimization
The DIS-200G Series supports the Auto-Surveillance VLAN (ASV) feature. This automatically detects surveillance devices and puts them into a dedicated surveillance VLAN, segmenting this type of traffic from the rest of the network.

Easy Troubleshooting
The DIS-200G Series features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port.

Limited Lifetime Warranty
D-Link offers a Limited Lifetime Warranty on the DIS-200G Series Gigabit Industrial Unmanaged Switches to further its commitment to product quality and long-term customer confidence.

Key features

  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Configuring Location Settings (CLI): Yes
  • System event log: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 10
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Gigabit Ethernet (copper) ports quantity: 10
  • Installed SFP modules quantity: 2
  • Console port: RJ-45
  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Port mirroring: Yes
  • Full duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Auto MDI/MDI-X: Yes
  • Spanning tree protocol: Yes
  • Auto-negotiation: Yes
  • Active link detection: Yes
  • VLAN support: Yes

Specifications

Power

Power sourcePoE
DC input voltage12 - 48 V
Power consumption (max)10.26 W

Design

Rack mountingYes
StackableNo
Product colourBlack
Housing materialMetal
LED indicatorsYes
International Protection (IP) codeIP30
Wall mountableNo
DIN rail mountingYes

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroringYes
Full duplexYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
Spanning tree protocolYes
Auto-negotiationYes
Active link detectionYes
VLAN supportYes
Virtual LAN featuresPort-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs4094

Security

DHCP featuresDHCP client
IGMP snoopingYes
Security algorithms802.1x RADIUS, SSL/TLS
AuthenticationPort-based authentication
Authentication typeRADIUS
Queue scheduling algorithmsSPQ, Weighted Round Robin (WRR)

Protocols

Management protocolsSNMP v1/v2c/v3, SNTP, Telnet

Performance

Mean time between failures (MTBF)219314 h

Certificates

CertificationCE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6

Data transmission

Switching capacity24 Gbit/s
Forwarding rate17.85 Mpps
MAC address table8000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames9600

Multicast features

Multicast supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity10
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity10
Installed SFP modules quantity2
Console portRJ-45

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
Configuring Location Settings (CLI)Yes
System event logYes

Weight & dimensions

Width171.2 mm
Depth53 mm
Height210 mm
Weight1.63 kg

Operational conditions

Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Heat dissipation35.01 BTU/h

Power over Ethernet (PoE)

Power over Ethernet (PoE)No
