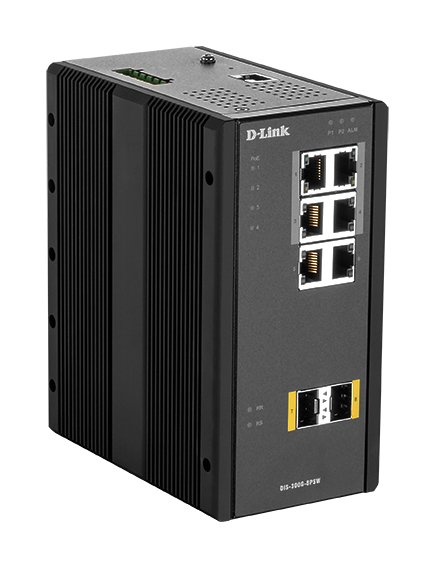

D-LINK DIS-300G-8PSW Switch

  • Brand: D-Link
  • Category: Switches
  • SKU: DLDIS300G8PSW
  • MPN: DIS-300G-8PSW
D-Link

D-Link 8-Port L2 Managed Switch with 6 x 10/100/1000BaseT(X) (4 PoE)…

SKU
CNZ-DS-001303
MPN
DIS-300G-8PSW

Overview

Managed Customization
Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-8PSW is easy to manage and provides the security and controls to guard and shape your network needs.

Gigabit Connectivity with PoE and SFP slots
Designed with 4 x 100/1000BaseT PoE ports, 2 x 100/1000BaseT ports, and 2 x 100/1000BaseSFP slots to suit a range of devices and network layouts.

Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

High Availability
Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.

PoE Support
With its 120 W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.

Fast Deployment

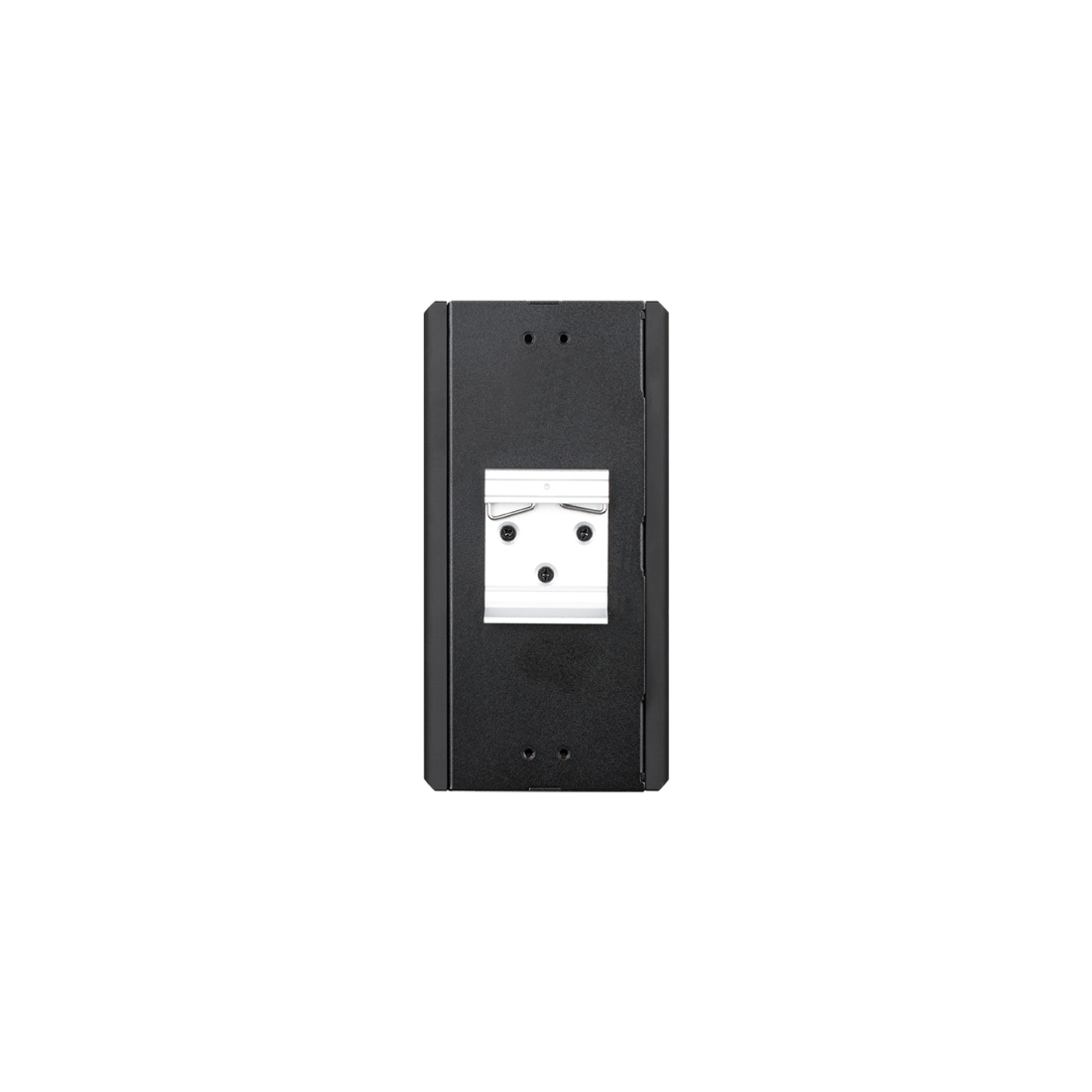

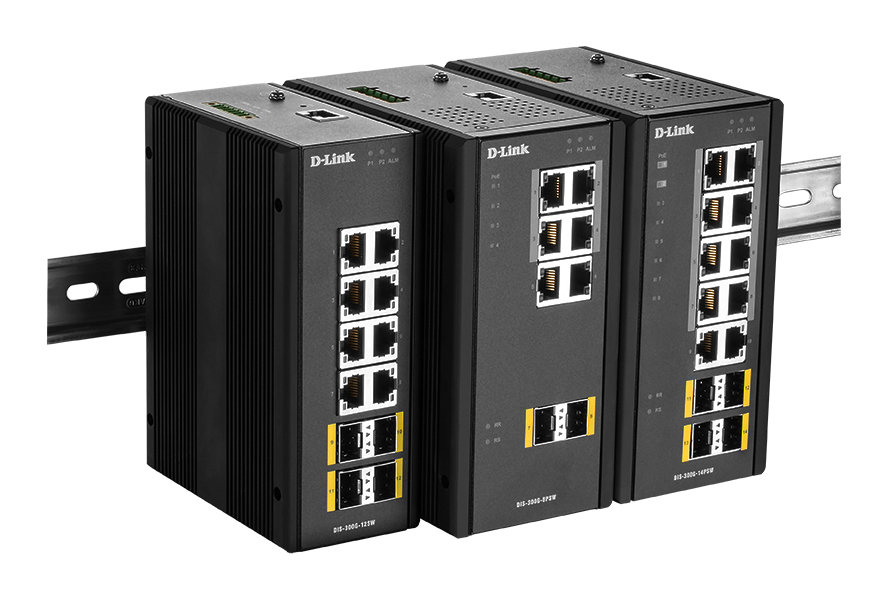

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design

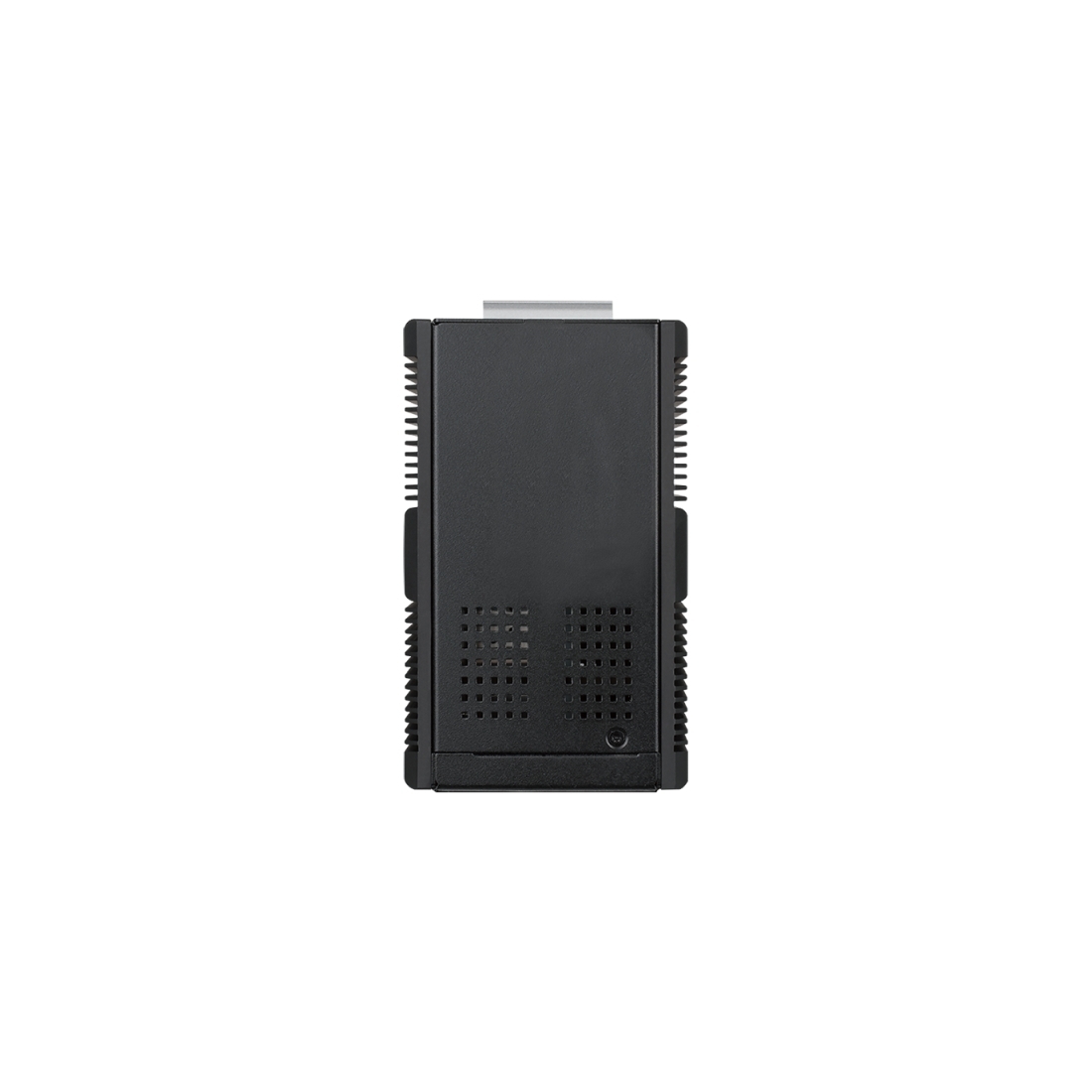

With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 77 x 154 x 128 mm.

Key features

  • Switch type: Managed
  • Switch layer: L2
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Traffic shaping: Yes
  • System event log: Yes
  • MIB support: RFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB
  • Basic switching RJ-45 Ethernet ports quantity: 6
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 2
  • Fiber optic connector: LC
  • Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
  • 10G support: No
  • Full duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Auto MDI/MDI-X: Yes
  • Spanning tree protocol: Yes
  • Auto-negotiation: Yes
  • VLAN support: Yes
  • Virtual LAN features: Tagged VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN
  • Number of VLANs: 1024
  • MAC address table: 8000 entries

Specifications

Power

DC input voltage48 - 58 V
Power consumption (typical)14 W
Power consumption (max)265 W
Power protection featuresOver current, Reverse polarity

Design

Rack mountingNo
Product colourBlack
LED indicatorsAlarm, LAN, PoE, Power
International Protection (IP) codeIP30
Wall mountableYes
DIN rail mountingYes
Electromagnetic compatibilityFCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6

Network

Networking standardsIEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G supportNo
Full duplexYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
Spanning tree protocolYes
Auto-negotiationYes
VLAN supportYes
Virtual LAN featuresTagged VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN
Number of VLANs1024

Security

DHCP featuresDHCP server, DHCP snooping, DHCP relay, DHCP client
Security algorithmsHTTPS, SNMP, SNMPv3, SSH
Authentication typeIEEE 802.1x, RADIUS
Queue scheduling algorithmsSPQ, Weighted Round Robin (WRR)

Performance

Firmware upgradeableYes

Certificates

CertificationIEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE

Logistics data

Harmonized System (HS) code85176990

Packaging data

Package width195 mm
Package depth242 mm
Package height138 mm
Package weight1.81 kg

Data transmission

MAC address table8000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames9000

Technical details

Shipping (inner) case height27 cm
Shipping (inner) case width40.5 cm
Shipping (inner) case length69.5 cm
Shipping (inner) case net weight18.1 kg
Products per shipping (inner) case10 pc(s)
Pallet gross weight (air)404.4 kg
Master (outer) cases per pallet (air)20 pc(s)
Products per pallet (air)200 pc(s)
Pallet gross length120 cm
Pallet gross width110 cm
Pallet height (air)148.5 cm
Pallet gross weight (sea)559.4 kg
Master (outer) cases per pallet (sea)28 pc(s)
Products per pallet (sea)280 pc(s)
Pallet height (sea)2.02 m
Shipping (inner) case gross weight19.4 kg

Multicast features

Multicast supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity6
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity2
Fiber optic connectorLC

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
Traffic shapingYes
System event logYes
MIB supportRFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB

Weight & dimensions

Width71 mm
Depth154 mm
Height128 mm
Weight1.31 kg

Operational conditions

Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Power over Ethernet (PoE) voltage range54 - 58 V
Power over Ethernet (PoE) power per port60 W
Total Power over Ethernet (PoE) budget120 W

Questions

$3,540.84inc GST
