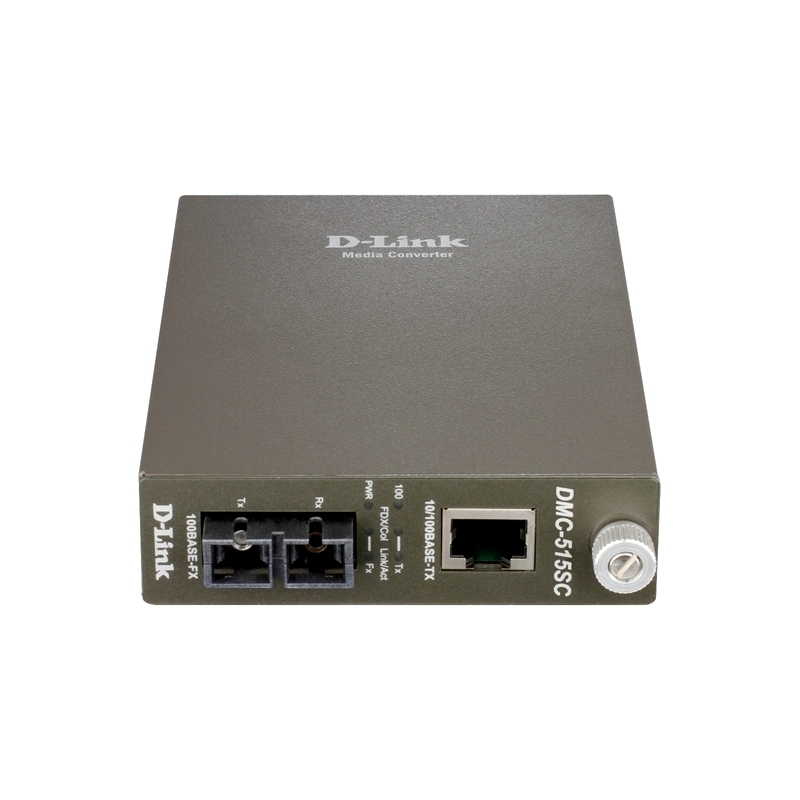

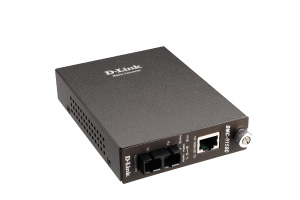

D-Link DMC-515SC Media Convrtr
- Brand: D-Link
- Category: Network Accessories
- SKU: DLDMC515SC
- MPN: DMC-515SC
D-Link
D-Link DMC-515SC Media Converters network media converter
- SKU
- CNZ-DS-001313
- MPN
- DMC-515SC
- Rating
- No reviews yet
−8%
Overview
These converters convert 10/100Mbps 10BASE-T/100BASE-TX Fast Ethernet twisted-pair signals to 100BASE-FX Fast Ethernet single-mode fiber signals. Maximum fiber cable distance is 15 - 60 km. 1 RJ-45 twisted-pair port and 1 fiber port (SC connector) are provided.
DMC-515SC: Supports maximum 15km fiber cable distance.
Product Features:
One-channel media conversion between 10BASE-T/ 100BASE-TX and 100BASE-FX
Fiber SC connector
Auto negotiation of speeds and duplex modes on twisted-pair port
Auto MDI-II and MDI-X
One slide switch for configuring fixed half/full duplex modes
Store-and-forward mechanism
Back-pressure & IEEE 802.3x Flow Control compliant
Full wire-speed forwarding rate
Front panel status LEDs
Can be used as a stand-alone device or with chassis
Hot-swappable when used with chassis
DMC-515SC: Supports maximum 15km fiber cable distance.
Product Features:
One-channel media conversion between 10BASE-T/ 100BASE-TX and 100BASE-FX
Fiber SC connector
Auto negotiation of speeds and duplex modes on twisted-pair port
Auto MDI-II and MDI-X
One slide switch for configuring fixed half/full duplex modes
Store-and-forward mechanism
Back-pressure & IEEE 802.3x Flow Control compliant
Full wire-speed forwarding rate
Front panel status LEDs
Can be used as a stand-alone device or with chassis
Hot-swappable when used with chassis
Key features
- Cabling technology: Fiber SC
- Connectivity technology: Wired
- Width: 120 mm
- Depth: 88 mm
- Height: 25 mm
- Weight: 292 g
- Package width: 208 mm
- Package depth: 274 mm
- Package height: 68 mm
- Package weight: 675.8 g
- Shipping (inner) case length: 37 cm
- Shipping (inner) case width: 29.1 cm
- Shipping (inner) case height: 45.2 cm
- Shipping (inner) case net weight: 6.98 kg
- Products per shipping (inner) case: 10 pc(s)
- Pallet gross weight (air): 265.6 kg
- Master (outer) cases per pallet (air): 33 pc(s)
- Products per pallet (air): 330 pc(s)
- Pallet gross length: 110 cm
- Pallet gross width: 120 cm
- Pallet height (air): 149.1 cm
- Pallet gross weight (sea): 348.2 kg
- Master (outer) cases per pallet (sea): 44 pc(s)
- Products per pallet (sea): 440 pc(s)
Specifications
Network
| Cabling technology | Fiber SC |
|---|
Logistics data
| Shipping (inner) case length | 37 cm |
|---|---|
| Shipping (inner) case width | 29.1 cm |
| Shipping (inner) case height | 45.2 cm |
| Shipping (inner) case net weight | 6.98 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 265.6 kg |
| Master (outer) cases per pallet (air) | 33 pc(s) |
| Products per pallet (air) | 330 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 149.1 cm |
| Pallet gross weight (sea) | 348.2 kg |
| Master (outer) cases per pallet (sea) | 44 pc(s) |
| Products per pallet (sea) | 440 pc(s) |
| Pallet height (sea) | 194.3 cm |
| Shipping (inner) case gross weight | 7.46 kg |
| Harmonized System (HS) code | 85176990 |
Other features
| I/O ports | 10BASE-T/ 100BASE-TX, 100BASE-FX |
|---|
Packaging data
| Package width | 208 mm |
|---|---|
| Package depth | 274 mm |
| Package height | 68 mm |
| Package weight | 675.8 g |
Ports & interfaces
| Connectivity technology | Wired |
|---|
Weight & dimensions
| Width | 120 mm |
|---|---|
| Depth | 88 mm |
| Height | 25 mm |
| Weight | 292 g |
Questions
$254.14inc GST
