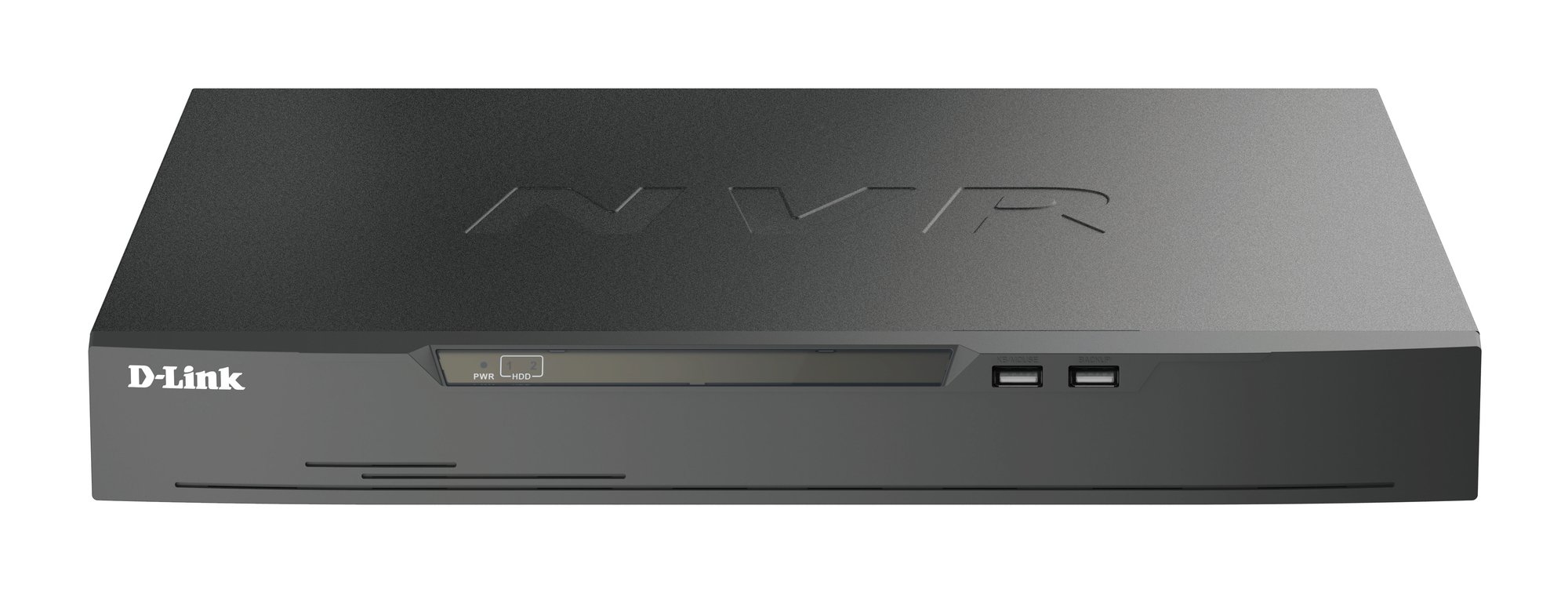

D-LINK DNR-4020-16P NVR
- Brand: D-Link
- Category: Network Accessories
- SKU: DLDNR402016P
- MPN: DNR-4020-16P
D-Link
D-Link DNR 4020 16P JustConnect 16 Channel H 265 PoE Network Video…
- SKU
- CNZ-DS-001317
- MPN
- DNR-4020-16P
- Rating
- No reviews yet
−7%
Overview
IP surveillance in a box.
All-in-one solution that allows businesses to connect and power up to 16 cameras, and simultaneously record and view real-time video streams from a local network or remotely over the Internet.
All-In-One Solution
Standalone NVR solution with no need for additional computer or software
16-Channels
Simultaneously record and view real-time video streams from up to 16 cameras
PoE Capable
16 x 802.3af PoE ports with a total PoE power budget of 120 W
High Efficiency Video Coding
Support for the latest H.265 standard to significantly reduce bandwidth and storage requirements
Dual Bay SATA
Up to 16 TB storage with 2 x SATA 3.5” HDD interface, each supporting up to 8 TB capacity
User-Friendly Interface
Provides 16 channels of simultaneous live view, recording, playback, and PTZ control
JustConnect+ App
Mobile app allows easy and remote access on a mobile device
Automated Surveillance.
The DNR-4020-16P supports multiple recording modes including continuous, scheduled and event-based recording. Motion detection or sensors, such as on a door or window, connected to the Alarm In ports can automatically initiate event-based video recording.
User-defined scheduled recording and continuous recording will automatically overwrite the oldest footage to ensure the surveillance system continues to record the most up-to-date footage.
User‑Friendly Interface.
Manage your surveillance network of up to 16 cameras from an easy-to-use GUI that provides real-time monitoring and controls.

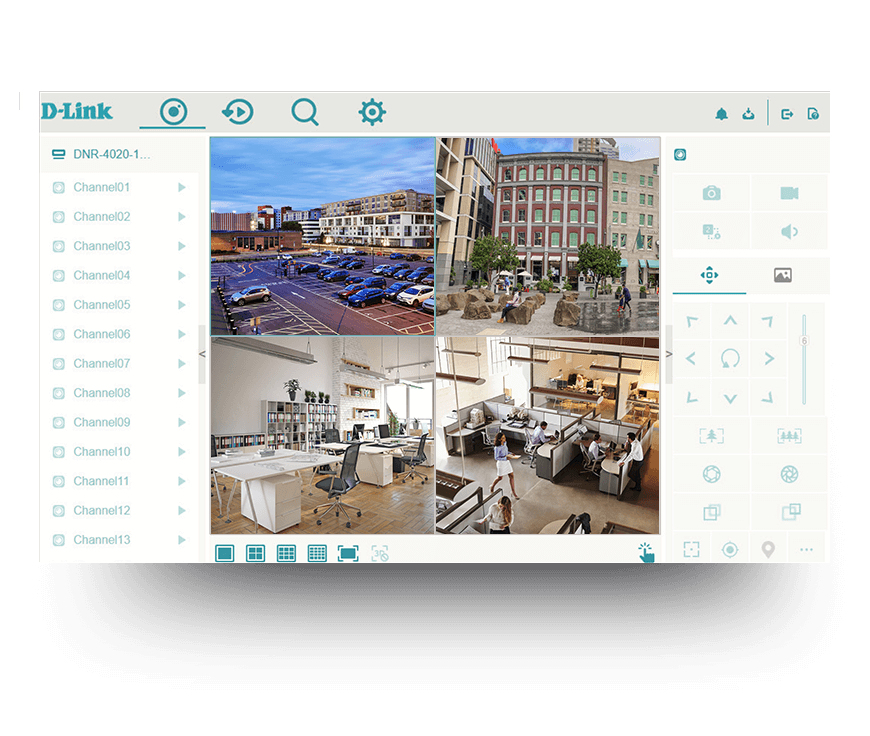

The flexible Live View options allow you to see multiple cameras simultaneously with the option to view a single camera on full screen with two-way audio support. Advanced search features help administrators to find the specific footage they need quickly.
Extensive Monitoring and Recording Features.

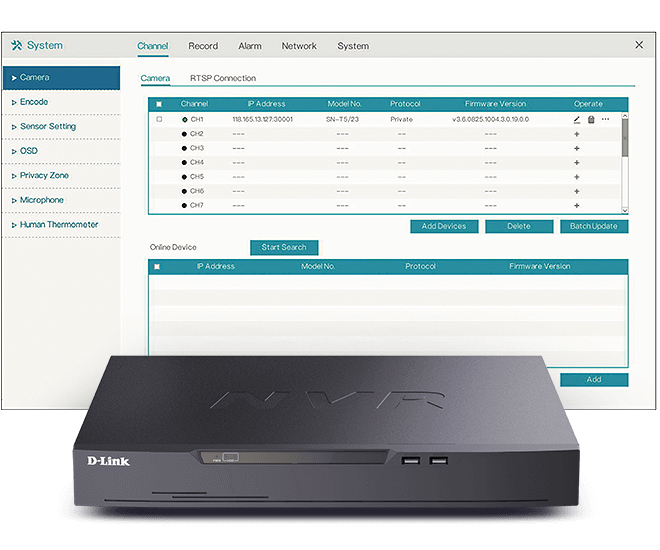

The DNR-4020-16P’s intuitive interface allows for easy configuration including compression, resolution, and frame rate for all connected cameras. Support for multiple encoding formats provides administrators with the flexibility to prioritise storage space and video quality.
Remote Access with Computer or Mobile Device.
The DNR-4020-16P allows users to remotely view and manage the surveillance system over the Internet via the web, giving administrators access to live view, recording, playback, and camera control.
The free JustConnect+ mobile app allows anywhere access straight from your smartphone or tablet.
All-in-one solution that allows businesses to connect and power up to 16 cameras, and simultaneously record and view real-time video streams from a local network or remotely over the Internet.
All-In-One Solution
Standalone NVR solution with no need for additional computer or software
16-Channels
Simultaneously record and view real-time video streams from up to 16 cameras
PoE Capable
16 x 802.3af PoE ports with a total PoE power budget of 120 W
High Efficiency Video Coding
Support for the latest H.265 standard to significantly reduce bandwidth and storage requirements
Dual Bay SATA
Up to 16 TB storage with 2 x SATA 3.5” HDD interface, each supporting up to 8 TB capacity
User-Friendly Interface
Provides 16 channels of simultaneous live view, recording, playback, and PTZ control
JustConnect+ App
Mobile app allows easy and remote access on a mobile device
Automated Surveillance.
The DNR-4020-16P supports multiple recording modes including continuous, scheduled and event-based recording. Motion detection or sensors, such as on a door or window, connected to the Alarm In ports can automatically initiate event-based video recording.
User-defined scheduled recording and continuous recording will automatically overwrite the oldest footage to ensure the surveillance system continues to record the most up-to-date footage.
User‑Friendly Interface.
Manage your surveillance network of up to 16 cameras from an easy-to-use GUI that provides real-time monitoring and controls.
The flexible Live View options allow you to see multiple cameras simultaneously with the option to view a single camera on full screen with two-way audio support. Advanced search features help administrators to find the specific footage they need quickly.
Extensive Monitoring and Recording Features.
The DNR-4020-16P’s intuitive interface allows for easy configuration including compression, resolution, and frame rate for all connected cameras. Support for multiple encoding formats provides administrators with the flexibility to prioritise storage space and video quality.
Remote Access with Computer or Mobile Device.
The DNR-4020-16P allows users to remotely view and manage the surveillance system over the Internet via the web, giving administrators access to live view, recording, playback, and camera control.
The free JustConnect+ mobile app allows anywhere access straight from your smartphone or tablet.
Key features
- Video input channels: 16 channels
- Alarm input channels: 8
- Alarm output channels: 2
- Maximum resolution: 3840 x 2160 pixels
- Audio formats supported: AAC, G.711
- Video formats supported: H.264, H.265
- PTZ control: Yes
- Playback modes: Backup selection, Forward, Frame by Frame, Play, Reverse, Stop
- Number of fans: 1 fan(s)
- Recording modes: Event, Manual, Schedule
- Wi-Fi: No
- HDD capacity: 0 GB
- Number of HDDs supported: 2
- Maximum storage capacity: 16 TB
- HDD interface: SATA, SATA II, SATA III
- HDD size: 3.5"
- Ethernet LAN (RJ-45) ports: 1
- Power over Ethernet (PoE): Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Power over Ethernet (PoE) ports quantity: 16
- HDMI output: Yes
- HDMI ports quantity: 1
- VGA (D-Sub) output ports: 1
- USB 2.0 ports quantity: 3
Specifications
Power
| Power consumption (max) | 143 W |
|---|---|
| AC input voltage | 100 - 240 V |
| Output current | 5 A |
| Output voltage | 52 V |
| Power over Ethernet (PoE) power per port | 15 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Features
| Product colour | Black |
|---|
Hard drive
| HDD capacity | 0 GB |
|---|---|
| Number of HDDs supported | 2 |
| Maximum storage capacity | 16 TB |
| HDD interface | SATA, SATA II, SATA III |
| HDD size | 3.5" |
Performance
| Video input channels | 16 channels |
|---|---|
| Alarm input channels | 8 |
| Alarm output channels | 2 |
| Maximum resolution | 3840 x 2160 pixels |
| Audio formats supported | AAC, G.711 |
| Video formats supported | H.264, H.265 |
| PTZ control | Yes |
| Playback modes | Backup selection, Forward, Frame by Frame, Play, Reverse, Stop |
| Number of fans | 1 fan(s) |
| Recording modes | Event, Manual, Schedule |
Logistics data
| Harmonized System (HS) code | 85219000 |
|---|
Technical details
| Compliance certificates | CE, RoHS |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 16 |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 3 |
| Audio output | 3.5 mm |
| Microphone in | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Supported network protocols | HTTP/HTTPS, RTP, RTSP, RTCP, SNMP v1/v2c/v3, IPv4, ARP, TCP, UDP, ICMP |
System requirements
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
|---|
Weight & dimensions
| Width | 372 mm |
|---|---|
| Depth | 310.5 mm |
| Height | 46.5 mm |
| Weight | 2.8 kg |
Wireless LAN features
| Wi-Fi | No |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
