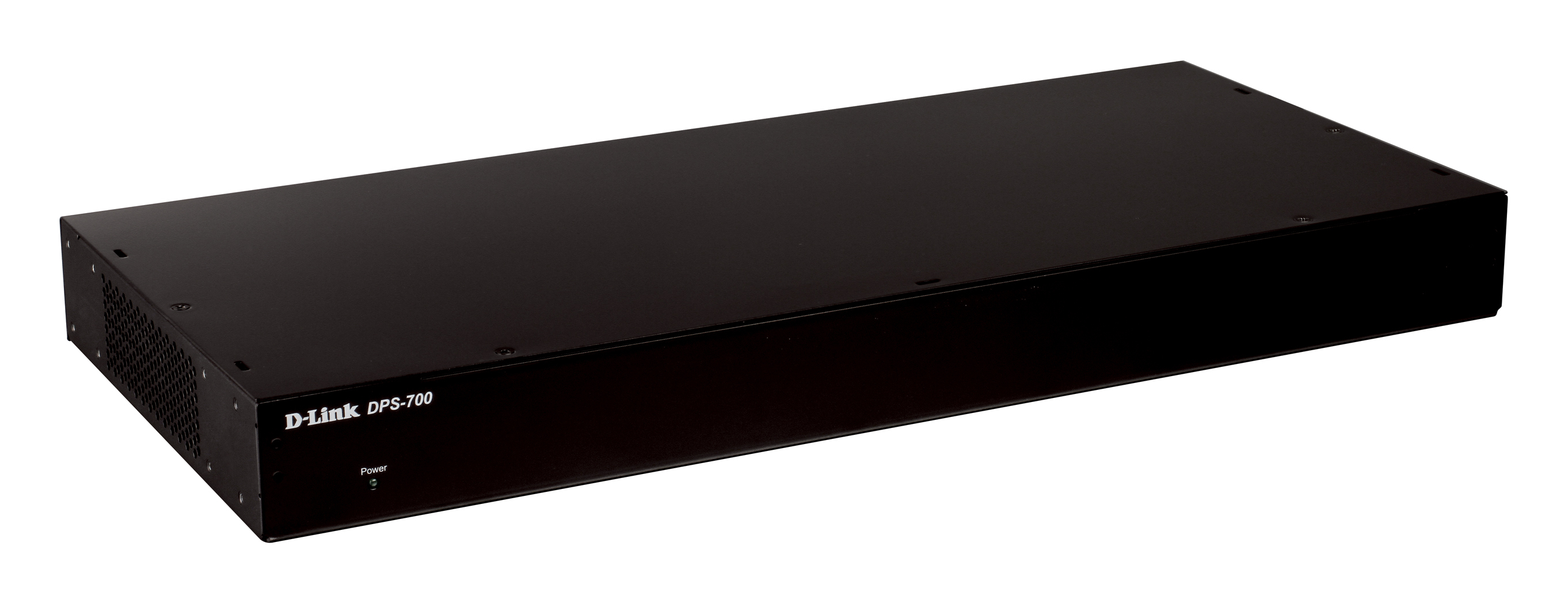

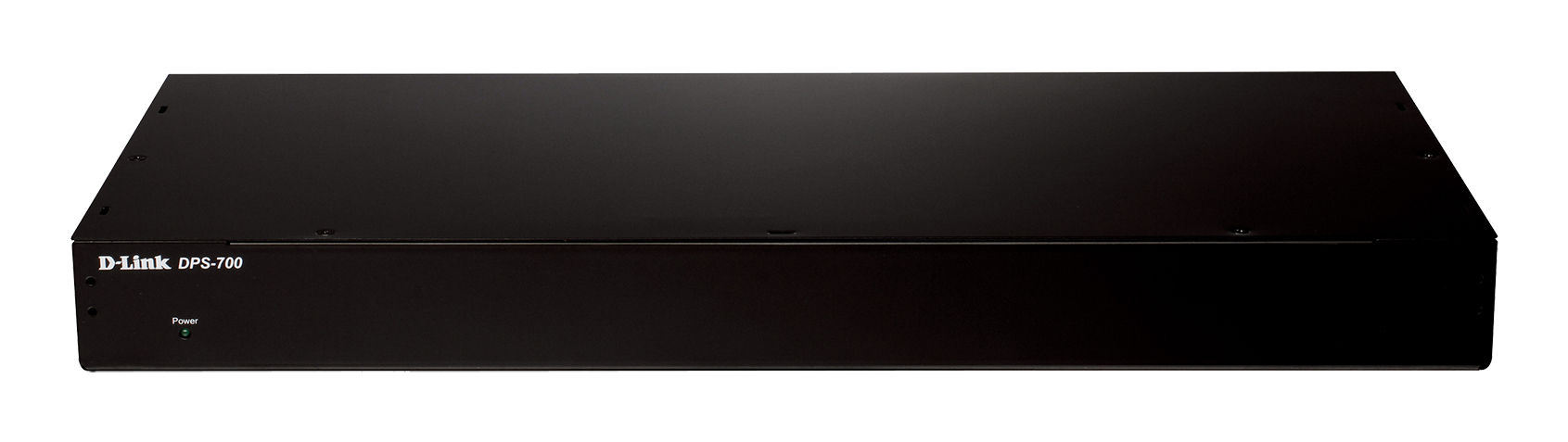

D-Link DPS-700 Power Supply
- Brand: D-Link
- Category: Network Accessories
- SKU: DLDPS700
- MPN: DPS-700
−7%
Overview
The combination of D-Link’s fully managed switch line and DPS Series of Redundant Power Supplies enables today’s business networks with unmatched flexibility, performance, scalability, and availability. When paired with a supported D-Link switch, the DPS-700 provides uninterrupted fail-over in the unlikely event of a mechanical power supply failure. Additionally, the DPS-700 supports a 1+1 power budget allowing you to double the PoE budget on supported switches.
Key features
- Product type: Power supply
- Product colour: Black
- LED indicators: Yes
- Mean time between failures (MTBF): 624961 h
- Compatibility: DGS-1510-52XMP DGS-1520-28MP DGS-1520-52MP DGS-3120-48PC DGS-3120-24PC DGS-3130-30PS/SI DGS-3130-54PS/SI DGS-3420-28PC DGS-3420-52PC DGS-3620-28PC DGS-3620-52PC DGS-3630-28PC DGS-3630-52PC
- Total power: 589 W
- AC input voltage: 90 - 264 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 7.5 A
- Safety: UL 60950 3rd Edition, CSA 22.2 NO.234, EN 60 950
- Certification: UL CUL FCC Class B CE
- Operating temperature (T-T): 0 - 65 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 195 mm
- Depth: 196 mm
- Height: 50 mm
- Weight: 3.7 kg
- Package width: 344 mm
- Package depth: 559 mm
- Package height: 132 mm
- Package weight: 5.6 kg
- Harmonized System (HS) code: 85177900
- Shipping (inner) case length: 57.7 cm
Specifications
Power
| Total power | 589 W |
|---|---|
| AC input voltage | 90 - 264 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 7.5 A |
Features
| Product type | Power supply |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 624961 h |
| Compatibility | DGS-1510-52XMP DGS-1520-28MP DGS-1520-52MP DGS-3120-48PC DGS-3120-24PC DGS-3130-30PS/SI DGS-3130-54PS/SI DGS-3420-28PC DGS-3420-52PC DGS-3620-28PC DGS-3620-52PC DGS-3630-28PC DGS-3630-52PC |
Certificates
| Safety | UL 60950 3rd Edition, CSA 22.2 NO.234, EN 60 950 |
|---|---|
| Certification | UL CUL FCC Class B CE |
Logistics data
| Harmonized System (HS) code | 85177900 |
|---|---|
| Shipping (inner) case length | 57.7 cm |
| Shipping (inner) case width | 42.4 cm |
| Shipping (inner) case height | 37.6 cm |
| Shipping (inner) case net weight | 16.8 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 238.4 kg |
| Master (outer) cases per pallet (air) | 12 pc(s) |
| Products per pallet (air) | 36 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 100 cm |
| Pallet height (air) | 126.3 cm |
| Pallet gross weight (sea) | 384 kg |
| Master (outer) cases per pallet (sea) | 20 pc(s) |
| Products per pallet (sea) | 60 pc(s) |
| Pallet height (sea) | 2.02 m |
| Shipping (inner) case gross weight | 18.2 kg |
Packaging data
| Package width | 344 mm |
|---|---|
| Package depth | 559 mm |
| Package height | 132 mm |
| Package weight | 5.6 kg |
Weight & dimensions
| Width | 195 mm |
|---|---|
| Depth | 196 mm |
| Height | 50 mm |
| Weight | 3.7 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 65 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
