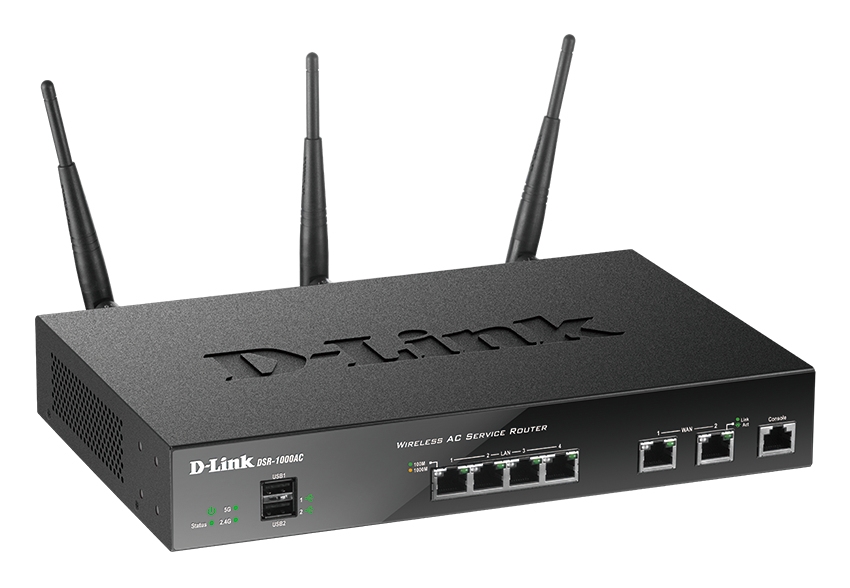

D-LINK DSR-1000AC Router
- Brand: D-Link
- Category: Routers
- SKU: DLDSR1000AC
- MPN: DSR-1000AC
D-Link
D-Link DSR-1000AC wireless router Gigabit Ethernet Dual-band (2.4…
- SKU
- CNZ-DS-001332
- MPN
- DSR-1000AC
- Rating
- No reviews yet
−8%
Overview
The DSR-1000AC Wireless AC Unified Services VPN Router provides a secure, high-performance networking solutions to address the growing needs of small and medium businesses. Next generation wireless performance provides wireless speeds of up to 1300 Mbps.
Comprehensive Management Capabilities
The DSR-1000AC includes dual WAN Gigabit Ethernet ports to provide high availability for your WAN or Internet connections. Traffic can be load-balanced across the links with Outbound Load Balancing, increasing the performance and availability of business applications. It supports mobile broadband networks via an optional USB modem1, such as 3G or 4G2 dongles.
Web Authentication Capabilities
Captive Portal allows employees and guest users to be easily authenticated and authorised by accessing a customised landing page. Users can be authenticated by a local database, RADIUS, LDAP, Microsoft Windows Active Directory, NT Domain and POP3 server. A maximum of four servers can be configured at any one time.
Complete and Robust VPN Features
A fully featured virtual private network (VPN) provides your mobile workers and branch offices with a secure link to your network. The DSR-1000AC is capable of Secure Sockets Layer (SSL) VPN tunnels, as well as Generic Routing Encapsulation (GRE) tunnels, empowering your mobile users by providing remote access to a central corporate database. Site-to-site VPN tunnels use IP Security (IPSec) Protocol, Point-to-Point Tunneling Protocol (PPTP), or Layer 2 Tunneling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links. OpenVPN allows mobile users to connect to the intranet via encrypted links with their PC, laptops or mobile devices.
Web Content Filtering for HTTP/HTTPs
The DSR-1000AC also provides a web content filtering feature to help administrators monitor, manage and control employees' Internet usage. Static web content filtering helps to remove malicious objects such as Java applets, ActiveX, and cookies, or to block URLs by keyword.
Comprehensive Management Capabilities
The DSR-1000AC includes dual WAN Gigabit Ethernet ports to provide high availability for your WAN or Internet connections. Traffic can be load-balanced across the links with Outbound Load Balancing, increasing the performance and availability of business applications. It supports mobile broadband networks via an optional USB modem1, such as 3G or 4G2 dongles.
Web Authentication Capabilities
Captive Portal allows employees and guest users to be easily authenticated and authorised by accessing a customised landing page. Users can be authenticated by a local database, RADIUS, LDAP, Microsoft Windows Active Directory, NT Domain and POP3 server. A maximum of four servers can be configured at any one time.
Complete and Robust VPN Features
A fully featured virtual private network (VPN) provides your mobile workers and branch offices with a secure link to your network. The DSR-1000AC is capable of Secure Sockets Layer (SSL) VPN tunnels, as well as Generic Routing Encapsulation (GRE) tunnels, empowering your mobile users by providing remote access to a central corporate database. Site-to-site VPN tunnels use IP Security (IPSec) Protocol, Point-to-Point Tunneling Protocol (PPTP), or Layer 2 Tunneling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links. OpenVPN allows mobile users to connect to the intranet via encrypted links with their PC, laptops or mobile devices.
Web Content Filtering for HTTP/HTTPs
The DSR-1000AC also provides a web content filtering feature to help administrators monitor, manage and control employees' Internet usage. Static web content filtering helps to remove malicious objects such as Java applets, ActiveX, and cookies, or to block URLs by keyword.
Key features
- Ethernet WAN: Yes
- Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- WLAN data transfer rate (max): 1300 Mbit/s
- Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- Ethernet LAN: Yes
- Ethernet LAN interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Cabling technology: 10/100/1000Base-T(X)
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.1Q
- Flow control support: Yes
- VPN tunnels quantity: 155
- VPN support: 3DES
- Ethernet LAN (RJ-45) ports: 4
- USB port: Yes
- USB 2.0 ports quantity: 2
- Security algorithms: WEP, WPA, WPA-EAP, WPA2, WPS
- Firewall: Yes
- Guest access: Yes
- Port-based Network Access Control (PNAC): Yes
- DoS attack prevention: Yes
- Filtering: Yes
- IP address filtering: Yes
- URL filtering: Yes
Specifications
Power
| Output voltage | 12 V |
|---|---|
| Output current | 3 A |
| Power consumption (typical) | 23.1 W |
Design
| Product colour | Black |
|---|---|
| Product type | Tabletop router |
Antenna
| Antenna design | External |
|---|---|
| Antenna gain level (max) | 2 dBi |
| Antennas quantity | 3 |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h, IEEE 802.1Q |
| Flow control support | Yes |
| VPN tunnels quantity | 155 |
| VPN support | 3DES |
Features
| Mean time between failures (MTBF) | 360000 h |
|---|
Security
| Security algorithms | WEP, WPA, WPA-EAP, WPA2, WPS |
|---|---|
| Firewall | Yes |
| Guest access | Yes |
| Port-based Network Access Control (PNAC) | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| Network address translation (NAT) | Yes |
Protocols
| DHCP client | Yes |
|---|---|
| DHCP server | Yes |
Logistics data
| Shipping (inner) case height | 42.8 cm |
|---|---|
| Shipping (inner) case width | 29.6 cm |
| Shipping (inner) case length | 35.4 cm |
| Shipping (inner) case net weight | 10.5 kg |
| Products per shipping (inner) case | 4 pc(s) |
| Pallet gross weight (air) | 429.8 kg |
| Master (outer) cases per pallet (air) | 36 pc(s) |
| Products per pallet (air) | 144 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 141.9 cm |
| Pallet gross weight (sea) | 565.8 kg |
| Master (outer) cases per pallet (sea) | 48 pc(s) |
| Products per pallet (sea) | 192 pc(s) |
| Pallet height (sea) | 184.2 cm |
| Shipping (inner) case gross weight | 11.3 kg |
| Harmonized System (HS) code | 85176990 |
Other features
| WLAN data transfer rates supported | 1300 Mbit/s |
|---|---|
| Bandwidth (first) | 2.4 GHz |
| Bandwidth (second) | 5 GHz |
Packaging data
| Package width | 273 mm |
|---|---|
| Package depth | 396 mm |
| Package height | 80 mm |
| Package weight | 2.63 kg |
WAN connection
| Ethernet WAN | Yes |
|---|
Packaging content
| AC adapter included | No |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 4 |
|---|---|
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
Weight & dimensions
| Width | 280 mm |
|---|---|
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.73 kg |
Wireless LAN features
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Questions
