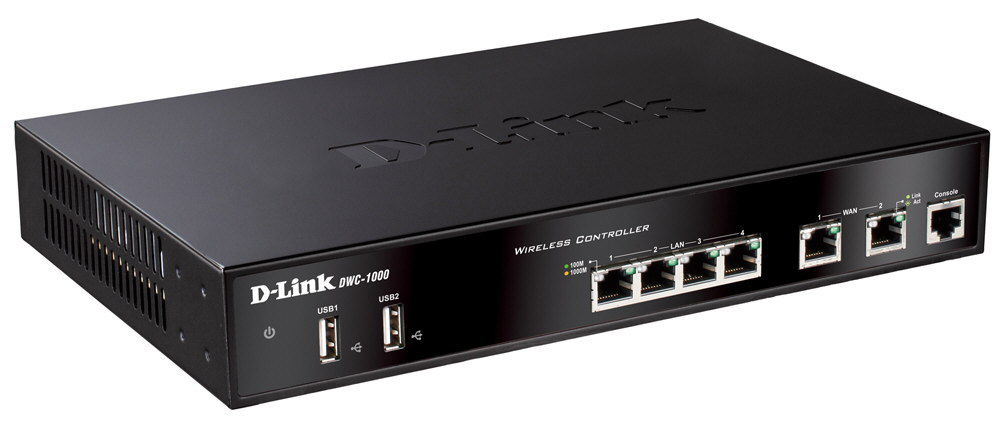

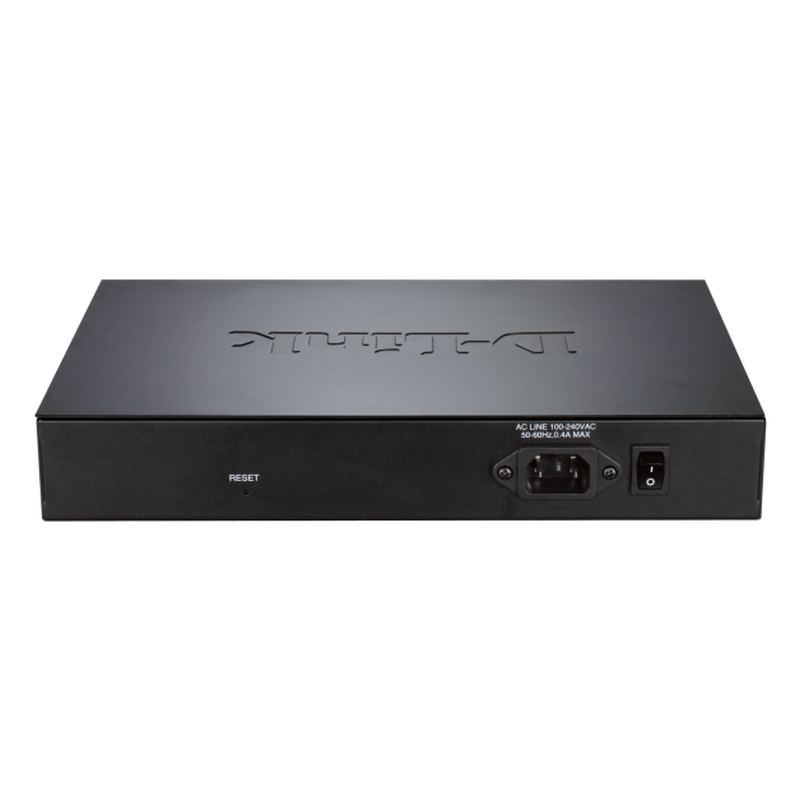

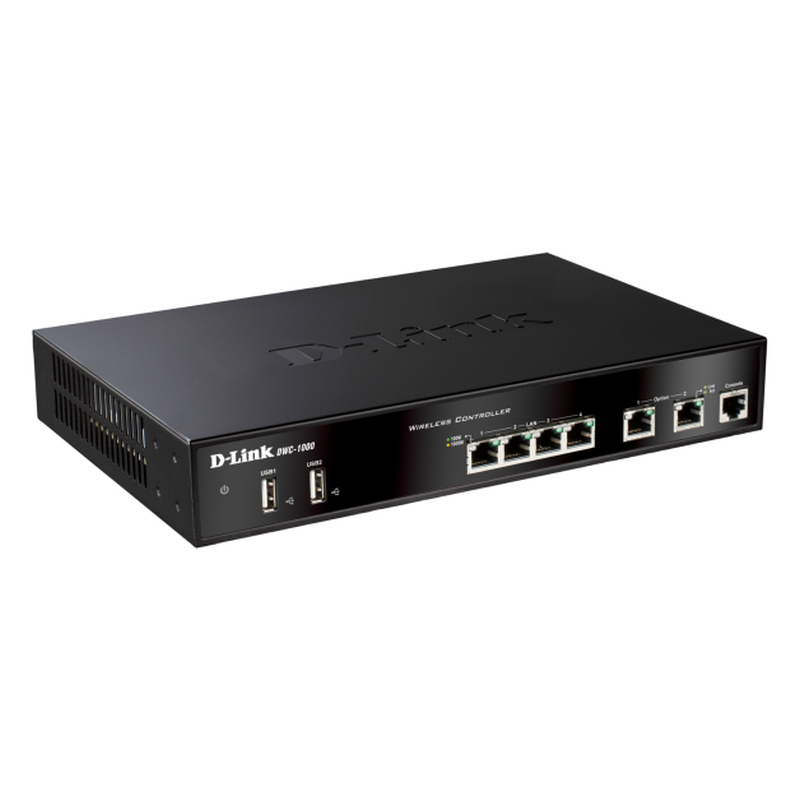

D-LINK DWC-1000 Access Point

  • Brand: D-Link
  • Category: Access Points (WiFi)
  • SKU: DLDWC1000
  • MPN: DWC-1000
D-Link

D-Link DWC-1000 network management device Ethernet LAN Wi-Fi

SKU
CNZ-DS-001340
MPN
DWC-1000

Overview

The D-Link DWC-1000 Wireless Controller is a centralised wireless LAN manager developed specifically for campuses, branch offices, and businesses that are looking for an easy to use, scalable solution to manage and configure their wireless network. With the ability to manage up to six wireless Access Points (upgradable to 24) and a maximum of 96 wireless Access Points in a Controller Cluster, the DWC-1000 is a cost-effective mobility solution for small to medium-scale environments. Its auto-managed AP discovery and single point management allow customers to acquire an enterprise class system without the burden of executing massive and complex configurations. With a robust and comprehensive security detection system, the DWC-1000 also enables managed APs to block potential attacks from unauthorised users and devices, especially for wireless environments.

Key features

  • Number of managed Wi-Fi Access Points (max): 12
  • Ethernet LAN: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • Networking standards: IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u
  • Wi-Fi: Yes
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g
  • Security algorithms: 3DES, DES, WEP, WPA, WPA2
  • Ethernet LAN (RJ-45) ports: 4
  • USB 2.0 ports quantity: 2
  • Power consumption (typical): 19.3 W
  • Built-in display: No
  • Power LED: Yes
  • Certification: FCC B, CE B, VCCI, C-tick, IC, cUL, LVD (EN60950-1)
  • Operating temperature (T-T): 0 - 40 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Dimensions (WxDxH): 280 x 180 x 44 mm
  • Package width: 273 mm
  • Package depth: 396 mm
  • Package height: 80 mm
  • Package weight: 2.5 kg
  • Power requirements: DC 12V/2.5A
  • Shipping (inner) case length: 35.4 cm
  • Shipping (inner) case width: 29.6 cm
  • Shipping (inner) case height: 42.8 cm

Specifications

Power

Power consumption (typical)19.3 W

Design

Built-in displayNo
Power LEDYes
CertificationFCC B, CE B, VCCI, C-tick, IC, cUL, LVD (EN60950-1)

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g

Security

Security algorithms3DES, DES, WEP, WPA, WPA2

Performance

Number of managed Wi-Fi Access Points (max)12

Logistics data

Shipping (inner) case length35.4 cm
Shipping (inner) case width29.6 cm
Shipping (inner) case height42.8 cm
Shipping (inner) case net weight10 kg
Products per shipping (inner) case4 pc(s)
Pallet gross weight (air)415.2 kg
Master (outer) cases per pallet (air)36 pc(s)
Products per pallet (air)144 pc(s)
Pallet gross length110 cm
Pallet gross width120 cm
Pallet height (air)141.9 cm
Pallet gross weight (sea)545.6 kg
Master (outer) cases per pallet (sea)48 pc(s)
Products per pallet (sea)192 pc(s)
Pallet height (sea)184.7 cm
Shipping (inner) case gross weight10.8 kg

Other features

Power requirementsDC 12V/2.5A

Packaging data

Package width273 mm
Package depth396 mm
Package height80 mm
Package weight2.5 kg

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB 2.0 ports quantity2

Weight & dimensions

Dimensions (WxDxH)280 x 180 x 44 mm

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%

Questions

$1,248.89inc GST
