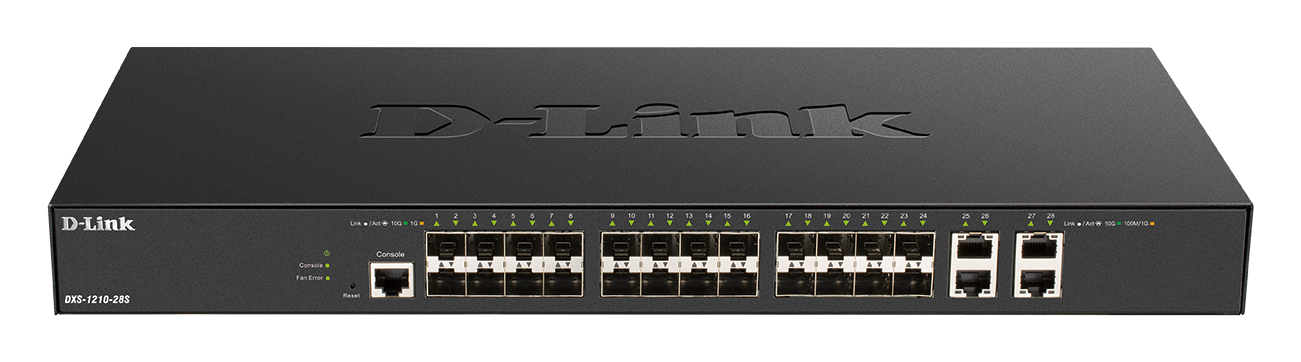

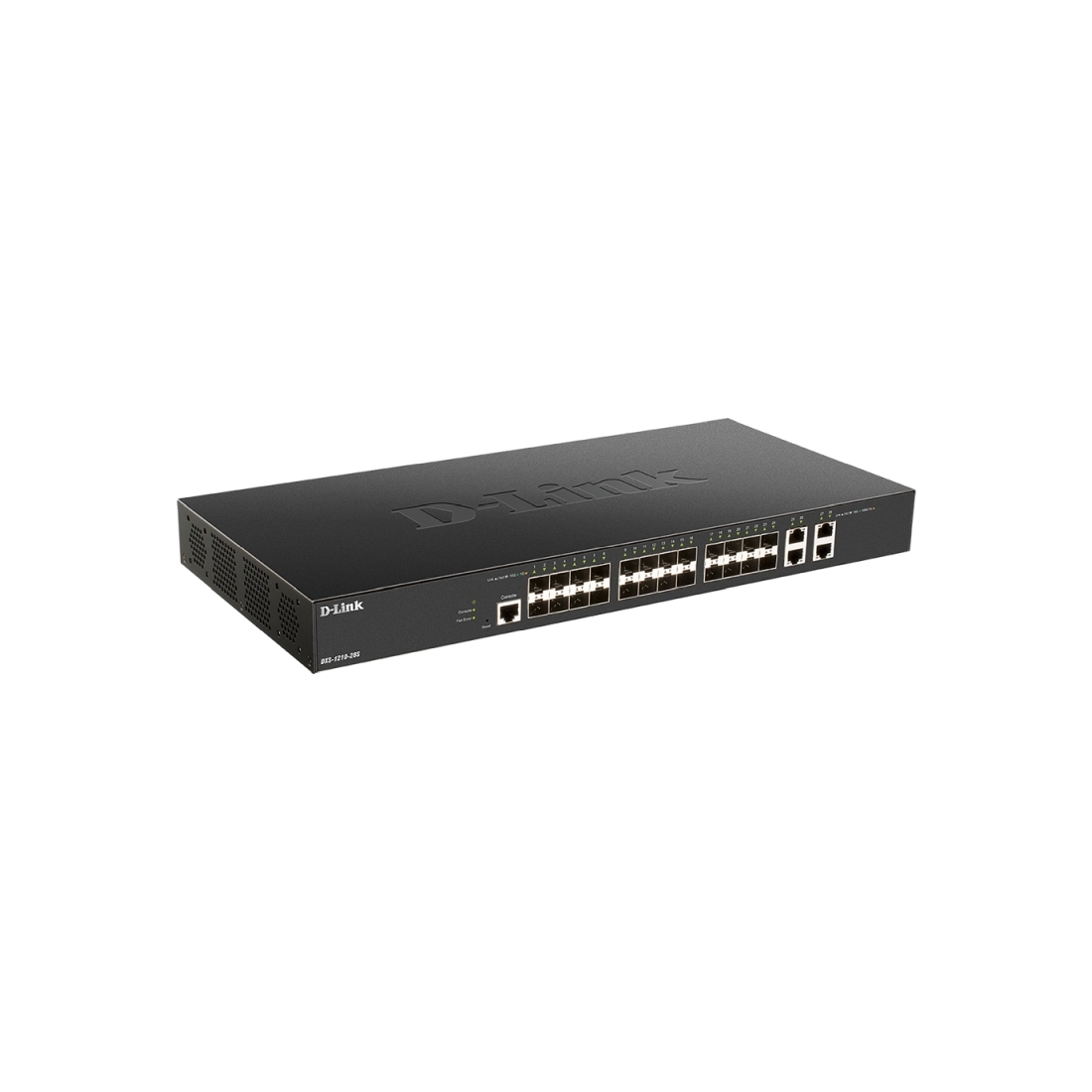

D-LINK DXS-1210-28S Switch
- Brand: D-Link
- Category: Switches
- SKU: DLDXS121028S
- MPN: DXS-1210-28S
D-Link
D-Link 24-port 10G SFP+, 4-port 10GBASE-T Smart Managed Switch
- SKU
- CNZ-DS-001362
- MPN
- DXS-1210-28S
- Rating
- No reviews yet
−7%
Overview
The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.
Key features
- Switch type: Managed
- Switch layer: L2/L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
- 10G Ethernet (copper) ports quantity: 4
- SFP+ module slots quantity: 24
- Console port: RJ-45
- Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
- 10G support: Yes
- Cable types supported: Cat6, Cat6a, Cat7
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Number of VLANs: 4094
- Switching capacity: 560 Gbit/s
- Throughput: 416.64 Mpps
- MAC address table: 32000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
Specifications
Power
| AC input voltage | 100 - 240 V |
|---|---|
| Power consumption (max) | 85.7 W |
Design
| Rack mounting | Yes |
|---|---|
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Link, Speed |
| Number of fans | 2 fan(s) |
Network
| Networking standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
|---|---|
| 10G support | Yes |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
Security
| Access Control List (ACL) | Yes |
|---|---|
| Access Control List (ACL) rules | 256 |
| IGMP snooping | Yes |
Protocols
| Management protocols | SNMP v1/v2c/v3 |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
Certificates
| Certification | CE Class A FCC Class A VCCI Class A IC BSMI |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Data transmission
| Switching capacity | 560 Gbit/s |
|---|---|
| Throughput | 416.64 Mpps |
| MAC address table | 32000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Packaging content
| Manual | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 4 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 4 |
| SFP+ module slots quantity | 24 |
| Console port | RJ-45 |
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Weight & dimensions
| Width | 441 mm |
|---|---|
| Depth | 209.5 mm |
| Height | 44 mm |
| Weight | 3.27 kg |
Operational conditions
| Operating temperature (T-T) | -5 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Questions
