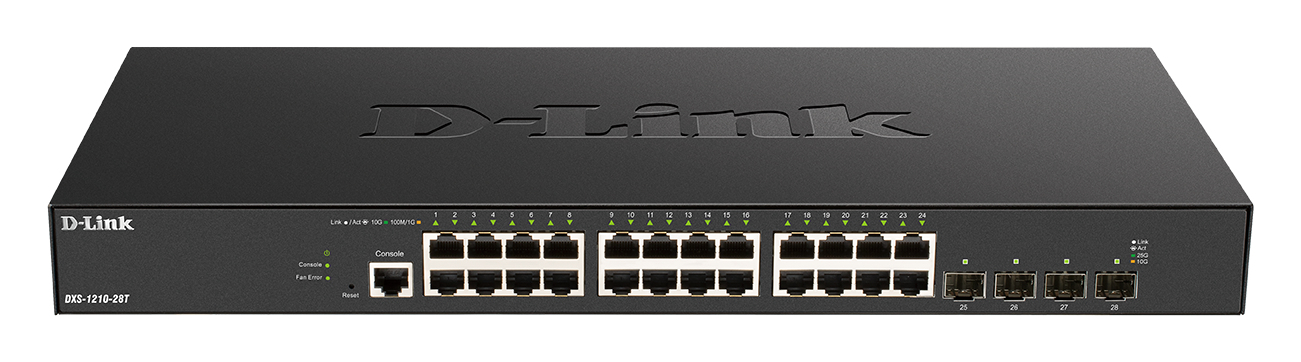

D-LINK DXS-1210-28T Switch

  • Brand: D-Link
  • Category: Switches
  • SKU: DLDXS121028T
  • MPN: DXS-1210-28T
D-Link

D-Link 24-port 10GBASE-T + 4-port 10/25G SFP28 Smart Managed Switch

SKU
CNZ-DS-001363
MPN
DXS-1210-28T

Overview

The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.

Key features

  • Switch type: Managed
  • Switch layer: L2/L3
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
  • 10G Ethernet (copper) ports quantity: 24
  • Console port: RJ-45
  • SFP28 ports quantity: 4
  • Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
  • Cable types supported: Cat6, Cat6a, Cat7
  • Port mirroring: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Auto MDI/MDI-X: Yes
  • Spanning tree protocol: Yes
  • VLAN support: Yes
  • Number of VLANs: 4094
  • Switching capacity: 680 Gbit/s
  • Forwarding rate: 505.92 Mpps
  • MAC address table: 32000 entries
  • Store-and-forward: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000

Specifications

Power

AC input voltage100 - 240 V
Power consumption (max)87.3 W

Design

Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsActivity, Link, Speed
Number of fans2 fan(s)

Network

Networking standardsIEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Cable types supportedCat6, Cat6a, Cat7
Port mirroringYes
Flow control supportYes
Link aggregationYes
Auto MDI/MDI-XYes
Spanning tree protocolYes
VLAN supportYes
Number of VLANs4094

Security

Access Control List (ACL)Yes
Access Control List (ACL) rules256
IGMP snoopingYes

Protocols

Management protocolsSNMP v1/v2c/v3
GARP VLAN Registration Protocol (GVRP)Yes

Performance

Noise level51.9 dB

Certificates

CertificationCE Class A FCC Class A VCCI Class A IC BSMI

Logistics data

Harmonized System (HS) code85176990

Data transmission

Switching capacity680 Gbit/s
Forwarding rate505.92 Mpps
MAC address table32000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames9000

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity24
Console portRJ-45
SFP28 ports quantity4

Management features

Switch typeManaged
Switch layerL2/L3
Quality of Service (QoS) supportYes
Web-based managementYes

Weight & dimensions

Width441 mm
Depth209.5 mm
Height44 mm
Weight3.07 kg

Operational conditions

Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Questions

$5,341.74inc GST
