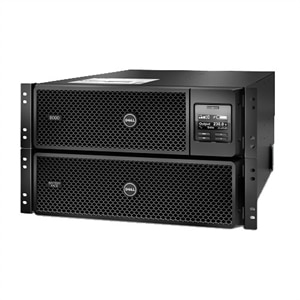

DELL DLRT8KRMXLI SRT8KRMXLI SMART-UPS 8000 WATTS / 8000 VA 3YR
Power & UPS > UPS Systems
- Brand: DELL
- Category: UPS Systems
- SKU: A8492702
- MPN: DLRT8KRMXLI
DELL
DELL DLRT8KRMXLI uninterruptible power supply (UPS)…
- SKU
- CNZ-DD-047567
- MPN
- DLRT8KRMXLI
- Rating
- No reviews yet
−12%
Overview
DELL DLRT8KRMXLI. UPS topology: Double-conversion (Online), Output power capacity: 8 kVA, Output power: 8000 W. AC outlet types: C13 coupler, C19 coupler, Hard Wire 3-wire (2PH + G), Hard Wire 5-wire (3PH + N + G), AC outlets quantity: 12 AC outlet(s), Cabling technology: 10/100Base-T. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 1728 Ah, Battery life (max): 5 year(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 6U. Compliance certificates: RoHS, Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH
Key features
- UPS topology: Double-conversion (Online)
- Output power capacity: 8 kVA
- Output power: 8000 W
- Waveform: Sine
- Input operation voltage (min): 230 V
- Input operation voltage (max): 400 V
- Input frequency: 40/70 Hz
- Output operation voltage (max): 230 V
- Output frequency: 50/60 Hz
- Surge energy rating: 480 J
- Number of input phases: 3
- Crest factor: 3:1
- Emergency Power Off (EPO): Yes
- Output voltage Total Harmonic Distortion (THD): 2%
- Noise level: 55 dB
- Audible alarm(s): Yes
- Audible alarm modes: Fault
- Auto-restart: Yes
- AC outlet types: C13 coupler, C19 coupler, Hard Wire 3-wire (2PH + G), Hard Wire 5-wire (3PH + N + G)
- AC outlets quantity: 12 AC outlet(s)
- Number of output IEC jumpers: 3
- USB port: Yes
- Serial interface: Yes
- Serial ports quantity: 1
Specifications
Design
| Form factor | Rackmount |
|---|---|
| Rack capacity | 6U |
| Product colour | Black |
| Display type | LCD |
| International Protection (IP) code | IP20 |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 1728 Ah |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 1.5 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Replacement battery cartridge | APCRBC140 |
Features
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 8 kVA |
| Output power | 8000 W |
| Waveform | Sine |
| Input operation voltage (min) | 230 V |
| Input operation voltage (max) | 400 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 480 J |
| Number of input phases | 3 |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Audible alarm modes | Fault |
| Auto-restart | Yes |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH |
Packaging data
| Package width | 600 mm |
|---|---|
| Package depth | 1000 mm |
| Package height | 461 mm |
| Package weight | 130 kg |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Ports & interfaces
| AC outlet types | C13 coupler, C19 coupler, Hard Wire 3-wire (2PH + G), Hard Wire 5-wire (3PH + N + G) |
|---|---|
| AC outlets quantity | 12 AC outlet(s) |
| Number of output IEC jumpers | 3 |
| USB port | Yes |
| Serial interface | Yes |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T |
| Emergency Power Off (EPO) connector | Yes |
| SmartSlot | Yes |
Weight & dimensions
| Width | 432 mm |
|---|---|
| Depth | 715 mm |
| Height | 263 mm |
| Weight | 111.8 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
