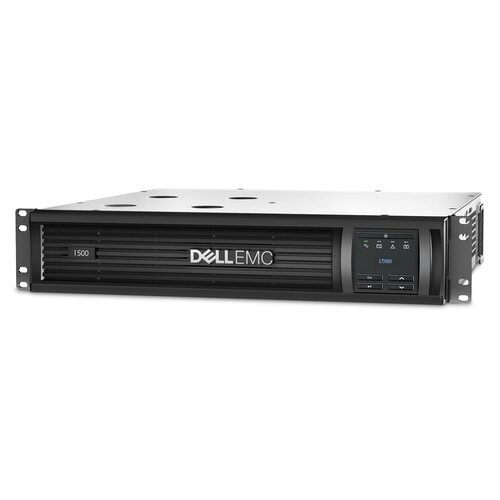

In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery.
Key features
UPS topology: Line-Interactive
Output power capacity: 1.5 kVA
Output power: 1000 W
Waveform: Sine
Input operation voltage (min): 150 V
Input operation voltage (max): 300 V
Input frequency: 50/60 Hz
Output operation voltage (min): 230 V
Output operation voltage (max): 230 V
Output frequency: 50/60 Hz
Surge energy rating: 459 J
Noise level: 46 dB
Audible alarm(s): Yes
AC outlet types: C13 coupler, IEC Jumpers
Power plug: C14 coupler
AC outlets quantity: 4 AC outlet(s)
USB port: Yes
Serial interface: Yes
Serial interface type: RJ-45
Serial ports quantity: 1
RS-232 ports: 1
SmartSlot: Yes
Battery technology: Sealed Lead Acid (VRLA)
Number of batteries supported: 1
Specifications
Design
Form factor
Rackmount
Rack capacity
2U
Cable length
2.4 m
Product colour
Black
Display type
LCD
Battery
Battery technology
Sealed Lead Acid (VRLA)
Number of batteries supported
1
Features
UPS topology
Line-Interactive
Output power capacity
1.5 kVA
Output power
1000 W
Waveform
Sine
Input operation voltage (min)
150 V
Input operation voltage (max)
300 V
Input frequency
50/60 Hz
Output operation voltage (min)
230 V
Output operation voltage (max)
230 V
Output frequency
50/60 Hz
Surge energy rating
459 J
Noise level
46 dB
Audible alarm(s)
Yes
Certificates
Certification
C-Tick, GOST, VDE, RoHS, EN 60950-1, REACH, EN 62040-2, EN 62040-1:2008
