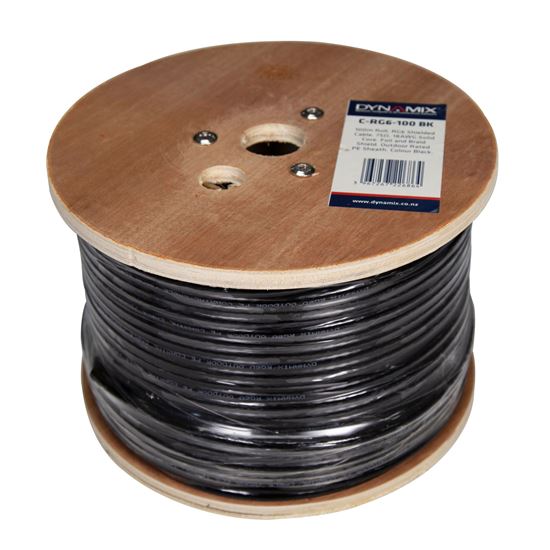

DYNAMIX 100m Roll RG6 Shielded Cable. Black. 75ohm. 18AWG solid
DYNAMIX 100m Roll RG6 Shielded Cable. Black. 75ohm. 18AWG solid core. Foil and braid shield.
- Brand: Dynamix
- Category: Audio & Video
- SKU: C-RG6-100-BK
- MPN: C-RG6-100-BK
DynamixDYNAMIX 100m Roll RG6 Shielded Cable. Black. 75ohm. 18AWG solid
Overview
DYNAMIX 100m Roll RG6 Shielded Cable. Black. 75ohm. 18AWG solid core. Foil and braid shield.
Specifications
Material
| Material | Copper Covered Steel |
|---|
Color (16)
| Color (16) | PHYSICAL PROPERTIES |
|---|
Construction
| Construction | Solid (1/1.02mm) |
|---|
Material (9)
| Material (9) | Bond Al. Foil, 100% Coverage |
|---|
Material (11)
| Material (11) | Aluminium Wire Braiding,40% Coverage |
|---|
Construction (5)
| Construction (5) | Insulation |
|---|
Operating Temperature
| Operating Temperature | -15°C to 70°C |
|---|
Min. Insulation Resistance
| Min. Insulation Resistance | 1000MΩ.km |
|---|
Operating Temperature (20)
| Operating Temperature (20) | ELECTRICAL PROPERTIES |
|---|
Nom. Characteristic Impedance
| Nom. Characteristic Impedance | 75±3Ω |
|---|
Voltage test: Core to Shielding
| Voltage test: Core to Shielding | 1000V a.c/1min |
|---|
Nom. Conductor DC Resistance @20°C
| Nom. Conductor DC Resistance @20°C | 100Ω/km |
|---|
$78.19inc GST
