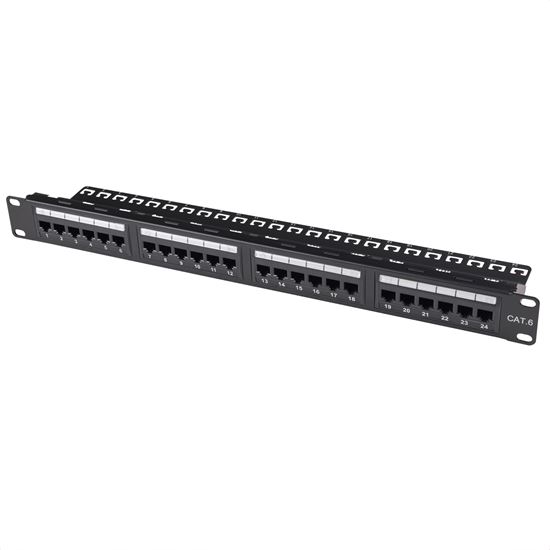

DYNAMIX 24 Port 19'' Cat6 UTP Patch Panel with plastic labelling kit. Rear Support Bar. T568A & T568B Wiring. Dual 110/Krone IDC.
Specifications
Spec
Spec
PRODUCT SPECIFICATIONS
Colour
Colour
Black
Material
Material
1.6mm Steel plate
Conductor
Conductor
22-26AWG
Jack wiring
Jack wiring
8p 100 micron inch Gold plated over 100 micron inch nickel
Installation
Installation
19 inch frame/cabine
Insertion force
Insertion force
20N max
IDC insertion life
IDC insertion life
200 cycles min
Retention strength
Retention strength
7.7kg between jack and plug
Plug insertion life
Plug insertion life
750 cycles min
Compliance Standards
Compliance Standards
UL, ETL and 3P certified, ANSI/TIA-568-C.2, ISO/IEC 11801 CAT6 with the applicable electrical transmission characteristics. ETL verified to ANSI/TIA- 568-C.2 and ISO /IEC 11801 CAT6 and teh prodyct model(s) and or brand name.
