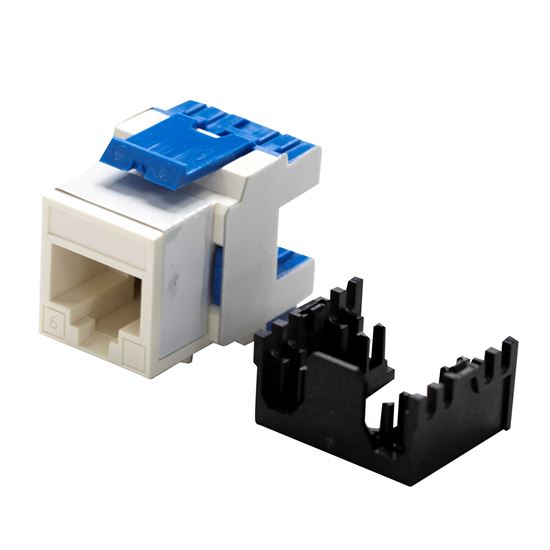

DYNAMIX Cat6 180 Unshielded Keystone Jack, Dual IDC.
Cat6 180 Unshielded Keystone Jack Dual IDC White
- Brand: Dynamix
- Category: Tools & Installation
- SKU: FP-C6-180WH
- MPN: FP-C6-180WH
DynamixDYNAMIX Cat6 180 Unshielded Keystone Jack, Dual IDC.
- SKU
- CNZ-CD-004215
- MPN
- FP-C6-180WH
Overview
DYNAMIX Cat6 180 Unshielded Keystone Jack, Dual IDC. Colour White
Specifications
UL
| UL | 1863ETL CertifiedSupports POE+US PATENT |
|---|
Contact Resistance
| Contact Resistance | max. 20mΩ |
|---|
Material - Housing
| Material - Housing | ABS UL94V-0 flame retardancy |
|---|
Operating Humidity
| Operating Humidity | 10% ~ -90%RH |
|---|
Storage Temperature
| Storage Temperature | -40° ~ 68° |
|---|
Material - IDC Block
| Material - IDC Block | High-impact Polycarbonate UL94V-2 flameretardancy |
|---|
Plug Retention Force
| Plug Retention Force | min. 30lbs |
|---|
Insulation Resistance
| Insulation Resistance | min. 500mΩ |
|---|
Operating Temperature
| Operating Temperature | -10° ~ 60° |
|---|
Material - Spring Wire
| Material - Spring Wire | Phosphor bronze 0.35t, plated with 50u” gold atcontact area over 60u” nickel undercoat |
|---|
Material - IDC Terminals
| Material - IDC Terminals | Phosphor bronze 0.5t, plated with 100u” nickel |
|---|
Transmission Performance
| Transmission Performance | 10GBase-T |
|---|
Plug and Jack Contact Force
| Plug and Jack Contact Force | min. 100g using FCC approved plug |
|---|
Plug Insertion Life (Mating)
| Plug Insertion Life (Mating) | 750 cycles with FCC compliant plug |
|---|
Solid Wire Range - Cable Diameter
| Solid Wire Range - Cable Diameter | 5mm - 9mm |
|---|
Solid Wire Range - Conductor Diameter
| Solid Wire Range - Conductor Diameter | 24AWG - 22AWG |
|---|
Solid Wire Range - Insulation Diameter
| Solid Wire Range - Insulation Diameter | 0.8mm - 1.1mm |
|---|
$28.74inc GST
