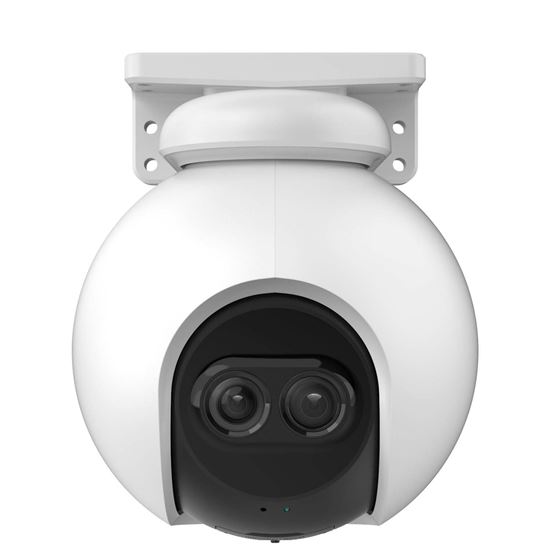

EZVIZ C8PF 2MP Outdoor WiFi PTZ Security Camera with 360-Degree
C8PF 2MP Outdoor WiFi PTZ Security Camera w/ 360-Degree FoV. 1/2.7'' Progressive Scan
- Brand: Ezviz
- Category: CCTV Cameras
- SKU: C8PF
- MPN: C8PF
EzvizEZVIZ C8PF 2MP Outdoor WiFi PTZ Security Camera with 360-Degree
- SKU
- CNZ-CD-004344
- MPN
- C8PF
Overview
EZVIZ C8PF 2MP Outdoor WiFi PTZ Security Camera with 360-Degree FoV. 1/2.7" Progressive Scan CMOS, 4mm Lens. IR 30m, 3D DNR, Digital WDR, Supports 512GB SD Card, 30fps, SEPT Stock Clearance
Specifications
Lens
| Lens | 2.8mm @ F1.6 + 12mm @ F1.6 |
|---|
IP Grade
| IP Grade | Weatherproof design |
|---|
PT Angle
| PT Angle | Pan: 340°, Tilt: 80° |
|---|
Protocol
| Protocol | EZVIZ Cloud Proprietary Protocol |
|---|
Security
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
|---|
Dimensions
| Dimensions | 154 × 116 × 164mm |
|---|
Frame Rate
| Frame Rate | Max. 15fps, self-adaptive during network transmission |
|---|
Day & Night
| Day & Night | IR-cut filter with auto-switching |
|---|
Smart Alarm
| Smart Alarm | AI-powered Human Shape Detection |
|---|
Weight (46)
| Weight (46) | With package: 938g |
|---|
Image sensor
| Image sensor | Dual-1/2.7" Progressive Scan CMOS |
|---|
Cloud Storage
| Cloud Storage | EZVIZ cloud storage |
|---|
Local Storage
| Local Storage | MicroSD card slot (Max. 512GB) |
|---|
Shutter Speed
| Shutter Speed | Self-adaptive shutter |
|---|
Wired Network
| Wired Network | RJ45 × 1 (10M/100M Adaptive Ethernet Port) |
|---|
Audio Bit Rate
| Audio Bit Rate | Self-Adaptive |
|---|
Max Resolution
| Max Resolution | 1920 × 1080 |
|---|
Video Bit Rate
| Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate. |
|---|
Wi-Fi Standard
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
|---|
Frequency Range
| Frequency Range | 2.4GHz~2.4835GHz |
|---|
In the box (49)
| In the box (49) | - 1.5-Meter Power Adapter |
|---|
In the box (50)
| In the box (50) | - Screw Kit |
|---|
In the box (51)
| In the box (51) | - Waterproof Kit |
|---|
In the box (52)
| In the box (52) | - Drill Template |
|---|
In the box (53)
| In the box (53) | - Regulatory Information |
|---|
In the box (54)
| In the box (54) | - Quick Start Guide |
|---|
General Function
| General Function | Anti-flicker, dual-stream, heartbeat, password protection, watermark |
|---|
Channel Bandwidth
| Channel Bandwidth | Supports 20MHz |
|---|
Power Consumption
| Power Consumption | MAX. 12W |
|---|
Transmission Rate
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps |
|---|
Video Compression
| Video Compression | H.265 / H.264 |
|---|
Cloud Storage (38)
| Cloud Storage (38) | General |
|---|
Interface Protocol
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
|---|
Wired Network (30)
| Wired Network (30) | Function |
|---|
Minimum Illumination
| Minimum Illumination | 0.05Lux @ (F1.6 AGC ON), 0 Lux with IR |
|---|
Operating Conditions
| Operating Conditions | -30ºC~60ºC, humidity 95% or less (non-condensing) |
|---|
Packaging Dimensions
| Packaging Dimensions | 197 × 185 × 205mm |
|---|
Customized Alert Area
| Customized Alert Area | Supports |
|---|
General Function (35)
| General Function (35) | Storage |
|---|
Black & White Night (12)
| Black & White Night (12) | Video & Audio |
|---|
$149.49inc GST
