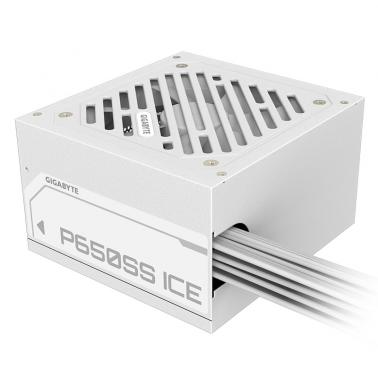

Gigabyte P650SS Ice 650W 80 Plus Silver Power Supply Support Intel ATX 3.0 Standard - White
- Brand: Gigabyte
- Category: Power Supplies
- SKU: GP-P650SS ICE
- MPN: GP-P650SS ICE
Gigabyte
Gigabyte P650SS Ice 650W 80 Plus Silver Power Supply Support Intel ATX 3.0 Standard - White
- Our SKU
- MPN
- Rating
- No reviews yet
−19%
Overview
SPECIFICATIONS:TypeIntel Form Factor ATX 12V v3.0 (compatible with ATX 3.1) PFCActive PFC (>0.9 typical) Input Voltage155-240 Vac Input Current6.3A Input Frequency60-50 Hz Output Capacity650W Dimension150 x 140 x 86 mm Fan Type120mm Fluid Dynamic Bearing (FDB) fan 80 PLUSSilver Efficiency90% at typical load (230V EU) MTBF>100,000 hours ProtectionOVP/OPP/SCP/UVP/OCP/OTP Power Good Signal100-150ms Hold Up Time>16ms Cable TypeFlat, All white ConnectorsATX/MB 20+4 Pin x 1 : 600mm*1CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1 PCI-e 6+2 Pin x 2 : 600mm*2 SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
Specifications
PFC
| PFC | Active PFC (>0.9 typical) |
|---|
MTBF
| MTBF | > 100,000 hours |
|---|
Type
| Type | Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1) |
|---|
Model
| Model | GP-P650SS ICE: |
|---|
80 PLUS
| 80 PLUS | Silver |
|---|
Fan Type
| Fan Type | 120mm Fluid Dynamic Bearing (FDB) fan |
|---|
Cable Type
| Cable Type | Flat, All white |
|---|
Dimensions
| Dimensions | 150 x 140 x 86 mm |
|---|
Efficiency
| Efficiency | 90% at typical load (230V EU) |
|---|
Protections
| Protections | OVP/OPP/SCP/UVP/OCP/OTP |
|---|
Hold Up Time
| Hold Up Time | > 16ms |
|---|
Input Current
| Input Current | 6.3A |
|---|
Input Voltage
| Input Voltage | 155-240 Vac |
|---|
Input Frequency
| Input Frequency | 60-50 Hz |
|---|
Output Capacity
| Output Capacity | 650W |
|---|
PCI-e 6+2 Pin x 2
| PCI-e 6+2 Pin x 2 | 600mm*2 |
|---|
Power Good Signal
| Power Good Signal | 100-150ms |
|---|
ATX/MB 20+4 Pin x 1
| ATX/MB 20+4 Pin x 1 | 600mm*1 |
|---|
CPU/EPS 4+4 Pin x 2
| CPU/EPS 4+4 Pin x 2 | 650mm+120mm*1 |
|---|
SATA x 2 + 4 Pin Peripheral x 2
| SATA x 2 + 4 Pin Peripheral x 2 | 500mm+120mm+120mm+120mm*1 |
|---|
SATA x 3 + 4 Pin Peripheral x 1
| SATA x 3 + 4 Pin Peripheral x 1 | 500mm+120mm+120mm+120mm*1 |
|---|
Questions
$103.49inc GST
