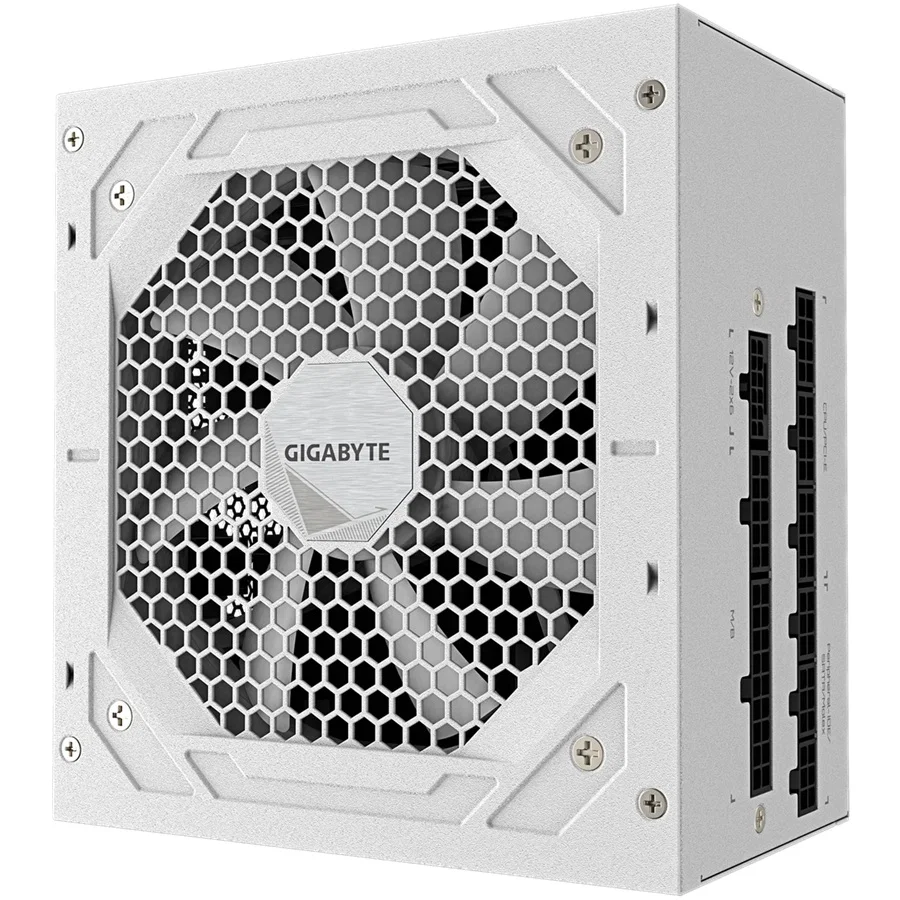

Gigaybte Gp-UD850GM PG5 V2 Ice Power Supply
- Brand: Gigabyte
- Category: Power Supplies
- SKU: GP-UD850GM PG5 V2 ICE
- MPN: GP-UD850GM PG5 V2 ICE
Gigabyte
Gigabyte Gigaybte Gp-UD850GM PG5 V2 Ice Power Supply
- SKU
- CNZ-SX-000574
- MPN
- GP-UD850GM PG5 V2 ICE
- Rating
- No reviews yet
−14%
Overview
The supplier has not provided a description for this product yet.
Specifications
PFC
| PFC | Active PFC ( > 0.9 typical) |
|---|
MTBF
| MTBF | > 100,000 hours |
|---|
Type
| Type | Intel Form Factor ATX 12V v3.1 |
|---|
Model
| Model | GP-UD850GM PG5 ICE: |
|---|
80 PLUS
| 80 PLUS | Gold |
|---|
Fan Type
| Fan Type | 120mm Hydraulic Bearing(HYB) Fan |
|---|
SATA x 8
| SATA x 8 | 600mm+150mm+150mm+150mm*2 |
|---|
Cable Type
| Cable Type | Embossed, All white |
|---|
Dimensions
| Dimensions | 150 x 140 x 86 mm |
|---|
Efficiency
| Efficiency | 90% at typical load |
|---|
Protections
| Protections | OVP/OPP/SCP/UVP/OCP/OTP |
|---|
Hold Up Time
| Hold Up Time | >16ms |
|---|
Input Current
| Input Current | 15-6.5A |
|---|
Input Voltage
| Input Voltage | 100-240 Vac (full range) |
|---|
Input Frequency
| Input Frequency | 60-50 Hz |
|---|
Output Capacity
| Output Capacity | 850W |
|---|
PCI-e 6+2 Pin x 4
| PCI-e 6+2 Pin x 4 | 600mm+150mm*2 |
|---|
Power Good Signal
| Power Good Signal | 100-150ms |
|---|
PCI-e 12+4 Pin x 1
| PCI-e 12+4 Pin x 1 | 700mm*1 |
|---|
ATX/MB 20+4 Pin x 1
| ATX/MB 20+4 Pin x 1 | 610mm*1 |
|---|
CPU/EPS 4+4 Pin x 2
| CPU/EPS 4+4 Pin x 2 | 650mm+200mm*1 |
|---|
4 Pin Peripheral x 3+4-Pin Floppy x 1
| 4 Pin Peripheral x 3+4-Pin Floppy x 1 | 500mm+150mm+150mm+150mm*1 |
|---|
Questions
$197.79inc GST
