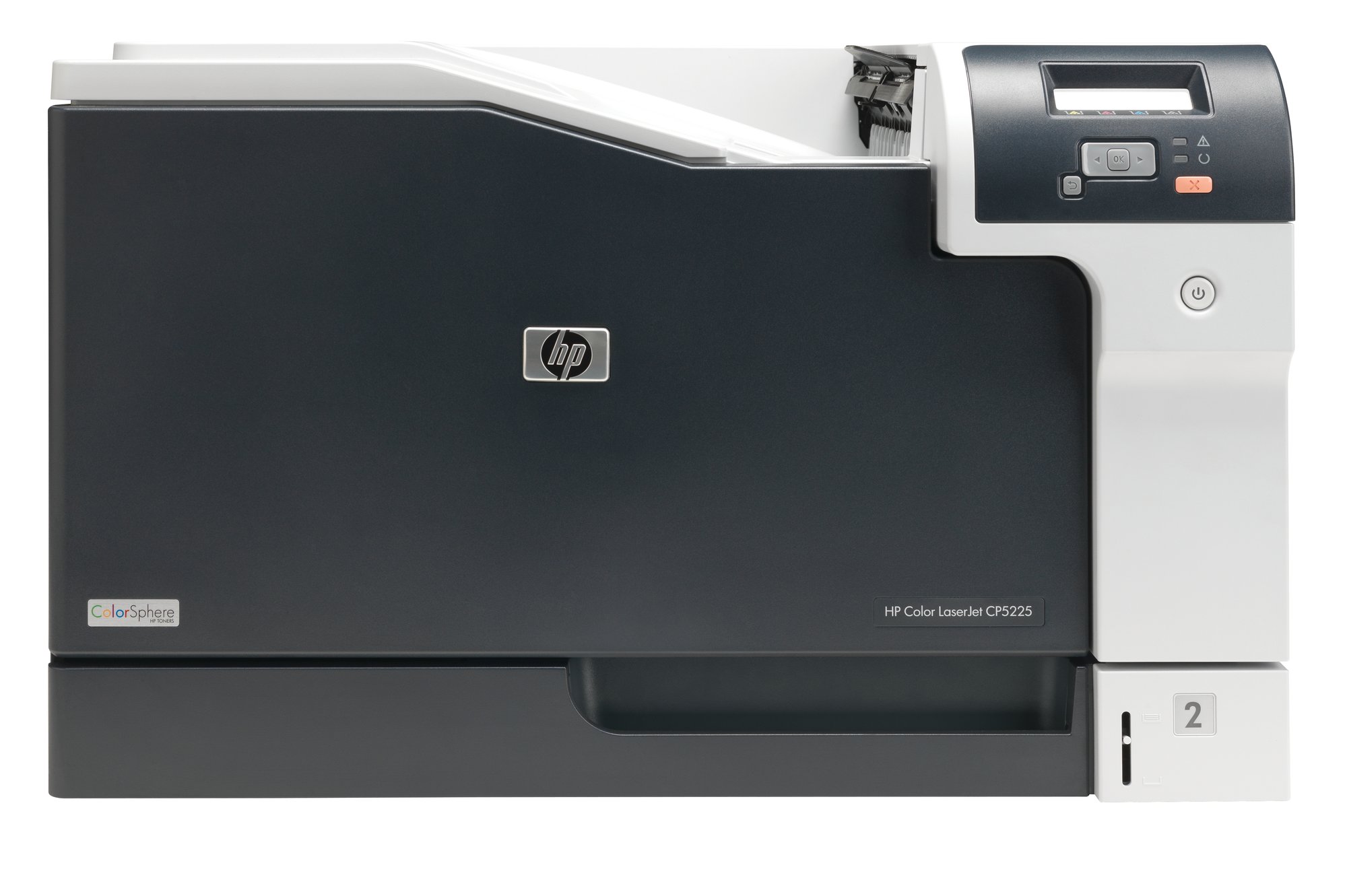

HP Color LaserJet Professional LaserJet Pro CP5225dn Multifunction Color Printer, Ethernet Only; Copier, Scanner. Print technology: Laser, Colour. Number of print cartridges: 4, Maximum duty cycle: 75000 pages per month. Maximum resolution: 600 x 600 DPI. Maximum ISO A-series paper size: A3. Print speed (black, normal quality, A4/US Letter): 20 ppm, Duplex printing. Display: LED, Product colour: Black
Key features
Duplex printing mode: Auto
Print resolution colour: 600 x 600 DPI
Print resolution black: 600 x 600 DPI
Print speed (colour, normal quality, A4/US Letter): 20 ppm
Colour: Yes
Print technology: Laser
Duplex printing: Yes
Maximum resolution: 600 x 600 DPI
Print speed (black, normal quality, A4/US Letter): 20 ppm
Print speed (black, normal quality, A3): 10 ppm
Print speed (colour, normal quality, A3): 10 ppm
Time to first page (black, normal): 16 s
Time to first page (colour, normal): 17 s
Maximum duty cycle: 75000 pages per month
Recommended duty cycle: 1500 - 5000 pages per month
CISPR 22: 2005/EN 55022:2006 Class A; EN 61000-3-2:2006; EN 61000-3-3: 1995+A1+A2; EN 55024:1998+A1+A2, GB9254-1998; EMC Directive 2004/108/EC with CE Marking (Europe), other EMC approvals as required by individual countries
Network
Wi-Fi
No
Ethernet LAN
Yes
Cabling technology
10/100Base-T(X)
Ethernet LAN data rates
10,100 Mbit/s
Security algorithms
SNMP
Mobile printing technologies
Not supported
Features
Maximum duty cycle
75000 pages per month
Recommended duty cycle
1500 - 5000 pages per month
Number of print cartridges
4
Page description languages
PostScript 3, PCL 5, PCL 6
Printer fonts
Scalable, TrueType
Country of origin
China, Vietnam
HP segment
Business
Printing
Duplex printing mode
Auto
Print resolution colour
600 x 600 DPI
Print resolution black
600 x 600 DPI
Print speed (colour, normal quality, A4/US Letter)
20 ppm
Colour
Yes
Print technology
Laser
Duplex printing
Yes
Maximum resolution
600 x 600 DPI
Print speed (black, normal quality, A4/US Letter)
20 ppm
Print speed (black, normal quality, A3)
10 ppm
Print speed (colour, normal quality, A3)
10 ppm
Time to first page (black, normal)
16 s
Time to first page (colour, normal)
17 s
Performance
Internal memory
192 MB
Maximum internal memory
448 MB
Built-in processor
Yes
Processor family
NXP ColdFire V5x
Processor frequency
540 MHz
Sound pressure level (printing)
49 dB
Sound power level (printing)
6.3 dB
Logistics data
Harmonized System (HS) code
84433210
Pallet gross weight
195 kg
Other features
Recommended system requirements
Windows 10; Windows 8 through the HP Universal Print Driver; Windows 7 through the HP Universal Print Driver; Windows Vista (32-bit/64-bit); 1 GHz processor; 512 MB RAM; 250 MB available hard disk space; Windows Server 2003 (print driver only); any Pentium II processor or higher; 64 MB RAM; 250 MB available hard disk space; SVGA 800 x 600 with 16-bit colour display; Internet Explorer 5.5 or higher; CD-ROM drive; USB or Ethernet port.
Mac OS X v10.3 or higher; PowerPC G3; G4; G5; or Intel Core processor; 150 MB available hard disk space; CD-ROM drive; USB or Ethernet port.
Recommended humidity operating range
20 - 60%
Power supply type
Built-in power supply
Recommended operating temperature range (T-T)
15 - 27 °C
Custom media sizes
Tray 1: 76 x 127 to 320 x 457 mm; 250-sheet input Tray 2: 148 x 182 to 297 x 432 mm; optional 500-sheet input Tray 3: 148 x 210 to 297 x 432 mm
Electromagnetic compatibility
CISPR 22: 2005/EN 55022:2006 Class A; EN 61000-3-2:2006; EN 61000-3-3: 1995+A1+A2; EN 55024:1998+A1+A2, GB9254-1998; EMC Directive 2004/108/EC with CE Marking (Europe), other EMC approvals as required by individual countries
Compatible operating systems
Windows 10 (for more information go to http://support.hp.com/us-en/document/c04658195), Windows 8 through the HP Universal Print Driver (for more information go to http://h20000.www2.hp.com/bizsupport/TechSupport/Document.jsp?objectID=c03365145), Windows 7 through the HP Universal Print Driver (for more information go to http://h20000.www2.hp.com/bizsupport/TechSupport/Document.jsp?objectID=c03737332), Windows Vista, Windows Server 2003; Mac OS X v10.3, v10.4, v10.5, v10.6; Linux (see http://www.hplip.net)
UNSPSC-code
43212105
Box contents
HP Color LaserJet Professional CP5225dn Printer; Power cord; Getting Started Guide; CD with software and documentation; Pre-installed black (~7,000 pages) and cyan, magenta, yellow (~7,300 pages) HP Color LaserJet print cartridges with HP ColorSphere toner; 100-sheet multipurpose tray; 250-sheet input tray; Built-in Fast Ethernet 10/100 Base-T networking; Built-in automatic two-sided printing
Printing
Colour printing
Manufacturer warranty
One-year unit exchange warranty. Warranty and support options vary by product, country and local legal requirements. Go to http://www.hp.com/support to learn about HP award winning service and support options in your region.
