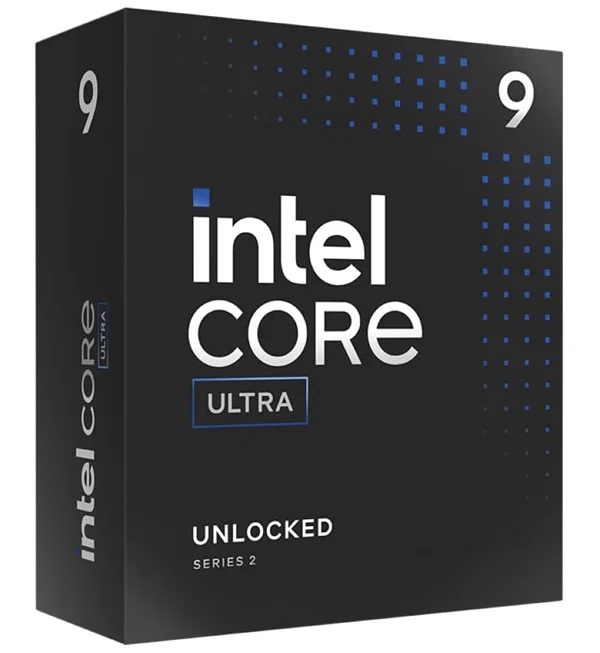

Intel Core Ultra 9 Processor 285K 36M Cache 5.70 GHZ FCLGA18W

SKU: CNZ-SX-000401
MPN: BX80768285K
Rating: No reviews yet

Intel Core Ultra 9 Processor 285K 36M Cache 5.70 GHZ FCLGA18W — Intel

Overview

The supplier has not provided a description for this product yet.

Specifications

Cache

Cache	36 MB Intel Smart Cache

GPU Name

GPU Name	Intel Graphics

Intel 64

Intel 64	Yes

NPU Name

NPU Name	Intel AI Boost

Xe-cores

Xe-cores	4

Code Name

Code Name	Products formerly Arrow Lake

Device ID

Device ID	0x7D67

Secure Key

Secure Key	Yes

Idle States

Idle States	Yes

Scalability

Scalability	1S Only

Total Cores

Total Cores	24

Memory Types

Memory Types	Up to DDR5 6400 MT/s

Total Threads

Total Threads	24

Intel OS Guard

Intel OS Guard	Yes

OpenCL Support

OpenCL Support	3

OpenGL Support

OpenGL Support	4.5

Total L2 Cache

Total L2 Cache	40 MB

CPU Lithography

CPU Lithography	TSMC N3B

DirectX Support

DirectX Support	12

Graphics Output

Graphics Output	DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b

Instruction Set

Instruction Set	64-bit

Intel Boot Guard

Intel Boot Guard	Yes

Processor Number

Processor Number	285K

Sparsity Support

Sparsity Support	Yes

Vertical Segment

Vertical Segment	Desktop

vPro Eligibility

vPro Eligibility	Intel vPro Enterprise

Intel Thunderbolt

Intel Thunderbolt	Yes

Sockets Supported

Sockets Supported	FCLGA1851

Max # of DMI Lanes

Max # of DMI Lanes	8

Product Collection

Product Collection	Intel Core Ultra Processors (Series 2)

of Efficient-cores

of Efficient-cores	16

Execute Disable Bit

Execute Disable Bit	Yes

Max Resolution (DP)

Max Resolution (DP)	8K @ 60Hz

Max Turbo Frequency

Max Turbo Frequency	5.7 GHz

Maximum Turbo Power

Maximum Turbo Power	250 W

ECC Memory Supported

ECC Memory Supported	Yes

GPU Peak TOPS (Int8)

GPU Peak TOPS (Int8)	8

Maximum Memory Speed

Maximum Memory Speed	6400 MHz

NPU Peak TOPS (Int8)

NPU Peak TOPS (Int8)	13

PCI Express Revision

PCI Express Revision	5.0 and 4.0

Processor Base Power

Processor Base Power	125 W

of Performance-cores

of Performance-cores	8

Intel Thread Director

Intel Thread Director	Yes

Max Resolution (HDMI)

Max Resolution (HDMI)	4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)

of Displays Supported

of Displays Supported	4

Intel Quick Sync Video

Intel Quick Sync Video	Yes

Graphics Base Frequency

Graphics Base Frequency	300 MHz

Intel One-Click Recovery

Intel One-Click Recovery	Yes

Max # of Memory Channels

Max # of Memory Channels	2

Overall Peak TOPS (Int8)

Overall Peak TOPS (Int8)	36

Max Operating Temperature

Max Operating Temperature	105°C

Instruction Set Extensions

Instruction Set Extensions	Intel SSE4.1, Intel SSE4.2, Intel AVX2

Intel AES New Instructions

Intel AES New Instructions	Yes

Max # of PCI Express Lanes

Max # of PCI Express Lanes	24

PCI Express Configurations

PCI Express Configurations	Up to 1x16+2x4, 2x8+2x4,1x8+4x4

Intel Speed Shift Technology

Intel Speed Shift Technology	Yes

Intel Thermal Velocity Boost

Intel Thermal Velocity Boost	Yes

Intel Turbo Boost Technology

Intel Turbo Boost Technology	2.0

Efficient-core Base Frequency

Efficient-core Base Frequency	3.2 GHz

Graphics Max Dynamic Frequency

Graphics Max Dynamic Frequency	2 GHz

Thermal Solution Specification

Thermal Solution Specification	PCG 2020A

Windows Studio Effects Support

Windows Studio Effects Support	Yes

Performance-core Base Frequency

Performance-core Base Frequency	3.7 GHz

Thermal Monitoring Technologies

Thermal Monitoring Technologies	Yes

Intel Hardware Shield Eligibility

Intel Hardware Shield Eligibility	Yes

Intel Remote Platform Erase (RPE)

Intel Remote Platform Erase (RPE)	Yes

Mode-based Execute Control (MBEC)

Mode-based Execute Control (MBEC)	Yes

Efficient-core Max Turbo Frequency

Efficient-core Max Turbo Frequency	4.6 GHz

Intel Standard Manageability (ISM)

Intel Standard Manageability (ISM)	Yes

Intel Trusted Execution Technology

Intel Trusted Execution Technology	Yes

Enhanced Intel SpeedStep Technology

Enhanced Intel SpeedStep Technology	Yes

Intel Gaussian & Neural Accelerator

Intel Gaussian & Neural Accelerator	3.5

Intel Turbo Boost Max Technology 3.0

Intel Turbo Boost Max Technology 3.0	Yes

Intel Volume Management Device (VMD)

Intel Volume Management Device (VMD)	Yes

Performance-core Max Turbo Frequency

Performance-core Max Turbo Frequency	5.5 GHz

Direct Media Interface (DMI) Revision

Direct Media Interface (DMI) Revision	4.0

Intel Thermal Velocity Boost Frequency

Intel Thermal Velocity Boost Frequency	5.7 GHz

Intel Virtualization Technology (VT-x)

Intel Virtualization Technology (VT-x)	Yes

AI Software Frameworks Supported by CPU

AI Software Frameworks Supported by CPU	OpenVINO, WindowsML, DirectML, ONNX RT, WebNN

AI Software Frameworks Supported by NPU

AI Software Frameworks Supported by NPU	OpenVINO, WindowsML, DirectML, ONNX RT, WebNN

Intel Stable IT Platform Program (SIPP)

Intel Stable IT Platform Program (SIPP)	Yes

Intel Threat Detection Technology (TDT)

Intel Threat Detection Technology (TDT)	Yes

Intel Active Management Technology (AMT)

Intel Active Management Technology (AMT)	Yes

Intel Control-Flow Enforcement Technology

Intel Control-Flow Enforcement Technology	Yes

Intel Total Memory Encryption - Multi Key

Intel Total Memory Encryption - Multi Key	Yes

Intel VT-x with Extended Page Tables (EPT)

Intel VT-x with Extended Page Tables (EPT)	Yes

Max Memory Size (dependent on memory type)

Max Memory Size (dependent on memory type)	256 GB

Max Resolution (eDP - Integrated Flat Panel)

Max Resolution (eDP - Integrated Flat Panel)	4K @ 60Hz

Intel Turbo Boost Max Technology 3.0 Frequency

Intel Turbo Boost Max Technology 3.0 Frequency	5.6 GHz

Intel Deep Learning Boost (Intel DL Boost) on CPU

Intel Deep Learning Boost (Intel DL Boost) on CPU	Yes

Intel Deep Learning Boost (Intel DL Boost) on GPU

Intel Deep Learning Boost (Intel DL Boost) on GPU	Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Intel Virtualization Technology for Directed I/O (VT-d)	Yes
