KINGSTON 1920G DC600ME TCG OPAL 2.5IN ENTERPRISE

1920G DC600ME TCG OPAL 2.5IN ENTERPRISE SATA SSD

  • Brand: KINGSTON
  • Category: Solid State Drives (SSD)
  • SKU: 6383446
  • MPN: SEDC600ME/1920G
KINGSTON

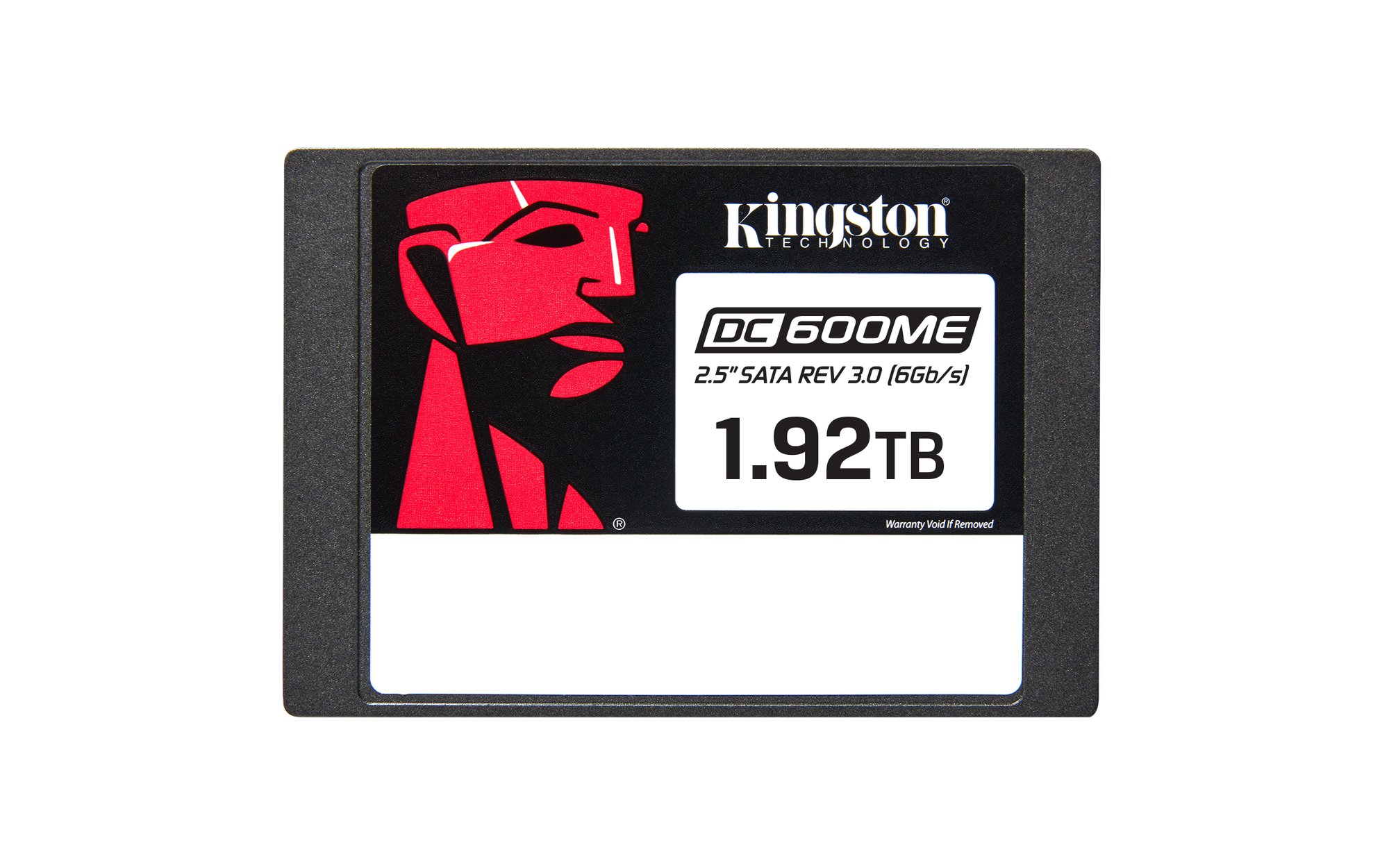

Kingston Technology 1920G DC600ME (Mixed-Use) 2.5" Enterprise SATA SSD

SKU
CNZ-IM-005905
MPN
SEDC600ME/1920G

Overview

Kingston’s DC600M and DC600ME SSDs are fourth-generation data center SATA 3.0, 6Gbps SSDs utilising 3D TLC NAND intended for “mixed use” server workloads. Both are well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M and DC600ME are designed to protect data against unexpected power failure and to ensure the drive will successfully reinitialise on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers and cloud service providers.

DC600ME features AES 256-bit encryption and supports TCG OPAL 2.0 security standards.

Capacities available from 480GB–7.68TB* to meet your data storage requirements.

Designed for data center environments
Optimised to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria.

Hardware-based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.

Delivers excellent quality of service (QoS)*
Optimised performance predictability to meet
service-level agreements (SLAs).

AES 256-bit Encryption with DC600ME
Protect sensitive data with support for AES 256-bit hardware-based encryption and TCG Opal 2.0 security standards with DC600ME.

Capacities up to 7.68TB
Upgrade and manage storage with capacities up to 7.68TB.*

Key features

  • Security algorithms: 256-bit AES
  • SSD capacity: 1.92 TB
  • SSD form factor: 2.5"
  • Interface: Serial ATA III
  • Memory type: 3D TLC NAND
  • Component for: Server/workstation
  • Hardware encryption: Yes
  • Target workload: Mixed Use (MU)
  • Data transfer rate: 6 Gbit/s
  • Read speed: 560 MB/s
  • Write speed: 530 MB/s
  • Random read (4KB): 94000 IOPS
  • Random write (4KB): 78000 IOPS
  • Read latency: 130 µs
  • Write latency: 70 µs
  • S.M.A.R.T. support: Yes
  • Hot-Plug support: Yes
  • H/W PLP function: Yes
  • Mean time between failures (MTBF): 2000000 h
  • TBW rating: 3504
  • Use conditions: Server/Enterprise
  • Power consumption (read): 1.6 W
  • Power consumption (write): 3.6 W
  • Power consumption (average): 1.45 W

Specifications

Power

Power consumption (read)1.6 W
Power consumption (write)3.6 W
Power consumption (average)1.45 W
Power consumption (idle)1.3 W

Features

Security algorithms256-bit AES
SSD capacity1.92 TB
SSD form factor2.5"
InterfaceSerial ATA III
Memory type3D TLC NAND
Component forServer/workstation
Hardware encryptionYes
Target workloadMixed Use (MU)
Data transfer rate6 Gbit/s
Read speed560 MB/s
Write speed530 MB/s
Random read (4KB)94000 IOPS
Random write (4KB)78000 IOPS
Read latency130 µs
Write latency70 µs
S.M.A.R.T. supportYes
Hot-Plug supportYes
H/W PLP functionYes
Mean time between failures (MTBF)2000000 h
TBW rating3504
Use conditionsServer/Enterprise

Logistics data

Country of originChina, Taiwan
Master (outer) case width135.9 mm
Master (outer) case length203.2 mm
Master (outer) case height69.8 mm
Master (outer) case gross weight989.98 g
Products per master (outer) case10 pc(s)

Packaging data

Package width129.5 mm
Package depth9.14 mm
Package height184.2 mm
Package weight91.2 g
Package typeHanging box

Weight & dimensions

Width69.8 mm
Depth100.1 mm
Height7 mm
Weight69 g

Operational conditions

Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating vibration2.17 G
Non-operating vibration20 G
