KINGSTON 64GB 3200MT/s DDR4 ECC Reg CL22 DIMM 2Rx
64GB 3200MT/s DDR4 ECC Reg CL22 DIMM 2Rx4 Hynix D
- Brand: KINGSTON
- Category: Printer/plotter Accessories
- SKU: 6509191
- MPN: KSM32RD4/64HD
KINGSTON
Kingston Technology KSM32RD4/64HD memory module 64 GB 1 x 64 GB DDR4…
- SKU
- CNZ-IM-005933
- MPN
- KSM32RD4/64HD
- Rating
- No reviews yet
−38%
Overview

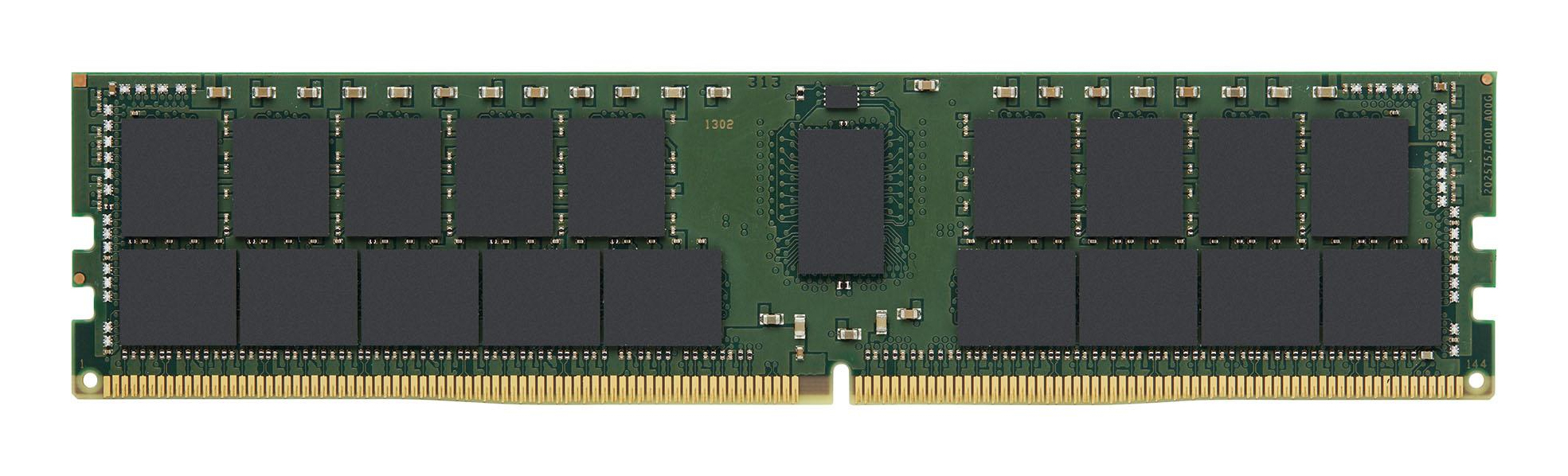

Kingston's KSM32RD4/64HD is a 8G x 72-bit (64GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/
parity, 2Rx4, ECC, memory module, based on thirty-six 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
parity, 2Rx4, ECC, memory module, based on thirty-six 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Key features
- CAS latency: 22
- Internal memory: 64 GB
- Memory layout (modules x size): 1 x 64 GB
- Internal memory type: DDR4
- Memory data transfer rate: 3200 MT/s
- Component for: Server
- Memory form factor: 288-pin DIMM
- ECC: Yes
- Buffered memory type: Registered (buffered)
- Memory ranking: 2
- Memory voltage: 1.2 V
- Module configuration: 8192M x 72
- Row cycle time: 45.75 ns
- Row active time: 32 ns
- SPD profile: Yes
- Programming power voltage (VPP): 2.5 V
- JEDEC standard: Yes
- Operating temperature (T-T): 0 - 85 °C
- Storage temperature (T-T): -55 - 100 °C
- Compliance certificates: RoHS
- Width: 133.3 mm
- Height: 31.2 mm
Specifications
Features
| CAS latency | 22 |
|---|---|
| Internal memory | 64 GB |
| Memory layout (modules x size) | 1 x 64 GB |
| Internal memory type | DDR4 |
| Memory data transfer rate | 3200 MT/s |
| Component for | Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Memory voltage | 1.2 V |
| Module configuration | 8192M x 72 |
| Row cycle time | 45.75 ns |
| Row active time | 32 ns |
| SPD profile | Yes |
| Programming power voltage (VPP) | 2.5 V |
| JEDEC standard | Yes |
Sustainability
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Width | 133.3 mm |
|---|---|
| Height | 31.2 mm |
Operational conditions
| Operating temperature (T-T) | 0 - 85 °C |
|---|---|
| Storage temperature (T-T) | -55 - 100 °C |
