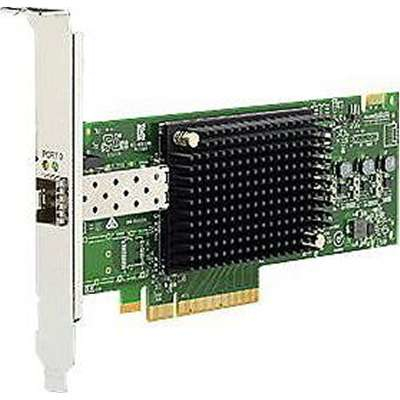

The Emulex 16 Gb (Generation 6) Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution for all Lenovo System x servers requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications. They are designed to meet the needs of modern networked storage systems that utilize high performance and low latency solid state storage drives for caching and persistent storage as well as hard disk drive arrays.
The Emulex 16 Gb Gen 6 FC HBAs feature ExpressLane™, which prioritizes mission-critical traffic in congested networks ensuring maximum application performance on flash storage arrays. They also seamlessly support Brocade ClearLink™ diagnostics through Emulex OneCommand® Manager, ensuring the reliability and management of storage network when connected to Brocade Gen 5 FC SAN fabrics.
Key features
Connectivity technology: Wired
Host interface: PCIe
Interface: Fiber
Fiber ports quantity: 1
Fiber optic connector: FC, SFP+
PCI version: 3.0
Maximum data transfer rate: 16000 Mbit/s
Full duplex: Yes
Web-based management: Yes
Maximum operating distance: 150 m
Component for: Server
Product colour: Black, Green, Silver
Internal: Yes
Rack mounting: Yes
Rack capacity: 2U
Hot-swap: Yes
Hot-Plug support: Yes
LED indicators: Yes
Mean time between failures (MTBF): 10000000 h
Certification: AS/NZS CISPR22:2009+A1, Class A
Australian EMC Framework (RCM)
cUR recognized to CSA 22.2, No. 60950-1-07
EN55022:2010, Class A
EN55024:2010
EN55032:2012
EU (CE Mark)
FCC Rules, Part 15, Class A
Industry Canada, ICES-003, Class A
Japan VCCI, Class A
Korea MSIP, Class A
RoHS Compliant (Directive 2011/65/EU)
TUV certified to EN60950-1+A11+A1+A12+A2
Taiwan BSMI, Class A
UL recognized to UL60950-1 2nd Edition
Compatible products: System x3500 M5 Type 5464
System x3550 M5 Type 5463
System x3550 M5 Type 8869
System x3650 M5 Type 5462
System x3650 M5 Type 8871
System x3750 M4 Type 8753
System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)
System x3950 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)
NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4)
Linux operating systems supported: RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 11, SuSE Linux 12.0
Other operating systems supported: VMware vSphere ESXi
Server operating systems supported: Windows Server 2012, Windows Server 2012 R2
Specifications
Design
Component for
Server
Product colour
Black, Green, Silver
Internal
Yes
Rack mounting
Yes
Rack capacity
2U
Hot-swap
Yes
Hot-Plug support
Yes
LED indicators
Yes
Mean time between failures (MTBF)
10000000 h
Certification
AS/NZS CISPR22:2009+A1, Class A
Australian EMC Framework (RCM)
cUR recognized to CSA 22.2, No. 60950-1-07
EN55022:2010, Class A
EN55024:2010
EN55032:2012
EU (CE Mark)
FCC Rules, Part 15, Class A
Industry Canada, ICES-003, Class A
Japan VCCI, Class A
Korea MSIP, Class A
RoHS Compliant (Directive 2011/65/EU)
TUV certified to EN60950-1+A11+A1+A12+A2
Taiwan BSMI, Class A
UL recognized to UL60950-1 2nd Edition
Compatible products
System x3500 M5 Type 5464
System x3550 M5 Type 5463
System x3550 M5 Type 8869
System x3650 M5 Type 5462
System x3650 M5 Type 8871
System x3750 M4 Type 8753
System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)
System x3950 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)
NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4)
Network
Maximum data transfer rate
16000 Mbit/s
Full duplex
Yes
Web-based management
Yes
Maximum operating distance
150 m
Logistics data
Harmonized System (HS) code
85176990
Other features
PCI-SIG* SR-IOV Capable
Yes
Packaging data
Low-profile bracket
Yes
Quantity per pack
1 pc(s)
Package type
Box
Packaging content
Mounting brackets included
Yes
Technical details
Compliance certificates
RoHS
Ports & interfaces
Connectivity technology
Wired
Host interface
PCIe
Interface
Fiber
Fiber ports quantity
1
Fiber optic connector
FC, SFP+
PCI version
3.0
System requirements
Linux operating systems supported
RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 11, SuSE Linux 12.0
