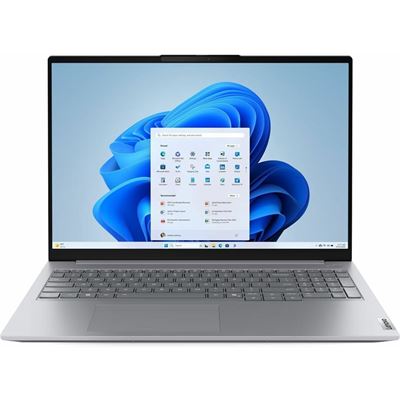

LENOVO THINKBOOK 16 G8, 16" WUXGA, U5-225U, 16GB (8+8) DDR5, 512GB, WI-FI 6E, TB4, W11P, 1YO
THINKBOOK 16 G8, 16" WUXGA, U5-225U, 16GB (8+8) DDR5, 512GB, WI-FI 6E, TB4, W11P, 1YO
- Brand: LENOVO
- Category: Laptops
- SKU: 21SK006RAU
- MPN: 21SK006RAU
LENOVOLenovo ThinkBook 16 G8 IAL Intel Core Ultra 5 225U Laptop 40.6 cm…
- SKU
- CNZ-DD-004276
- MPN
- 21SK006RAU
Overview
Lenovo ThinkBook 16 G8 IAL. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 5, Processor model: 225U. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Product colour: Grey. Weight: 1.7 kg
Key features
- Colour name: Arctic grey
- Product type: Laptop
- Product colour: Grey
- Form factor: Clamshell
- Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
- Display diagonal: 40.6 cm (16")
- Display resolution: 1920 x 1200 pixels
- Touchscreen: No
- HD type: WUXGA
- Panel type: IPS
- LED backlight: Yes
- Native aspect ratio: 16:10
- Anti-glare screen: Yes
- Display brightness: 300 cd/m²
- RGB colour space: NTSC
- Colour gamut: 45%
- Maximum refresh rate: 60 Hz
- Contrast ratio (typical): 1000:1
- Processor manufacturer: Intel
- Processor family: Intel Core Ultra 5
- Processor generation: Intel Core Ultra (Series 2)
- Processor model: 225U
- Processor cores: 12
- Processor threads: 14
Specifications
Audio
| Audio chip | Realtek ALC3287 |
|---|
| Audio system | Dolby Audio |
|---|
| Number of built-in speakers | 2 |
|---|
| Speaker power | 2 W |
|---|
| Built-in microphone | Yes |
|---|
| Number of microphones | 2 |
|---|
Power
| AC adapter power | 65 W |
|---|
| AC adapter frequency | 50/60 Hz |
|---|
| AC adapter input voltage | 100 - 240 V |
|---|
| USB Type-C charging port | Yes |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
Camera
| Front camera | Yes |
|---|
| Front camera resolution | 1920 x 1080 pixels |
|---|
| Front camera HD type | Full HD |
|---|
| Infrared (IR) camera | Yes |
|---|
| Privacy camera | Yes |
|---|
| Privacy type | Privacy shutter |
|---|
Design
| Colour name | Arctic grey |
|---|
| Product type | Laptop |
|---|
| Product colour | Grey |
|---|
| Form factor | Clamshell |
|---|
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC) |
|---|
Memory
| Internal memory | 16 GB |
|---|
| Internal memory type | DDR5-SDRAM |
|---|
| Memory clock speed | 5600 MHz |
|---|
| Memory form factor | SO-DIMM |
|---|
| Memory layout (slots x size) | 2 x 8 GB |
|---|
| Memory slots | 2x SO-DIMM |
|---|
| Maximum internal memory | 64 GB |
|---|
| Memory channels | Dual-channel |
|---|
Battery
| Battery technology | Lithium Polymer (LiPo) |
|---|
| Battery capacity | 45 Wh |
|---|
| Battery life (max) | 7.7 h |
|---|
| Continuous video playback time | 13.1 h |
|---|
| Fast charging | Yes |
|---|
| Fast charging time (50%) | 30 min |
|---|
Display
| Display diagonal | 40.6 cm (16") |
|---|
| Display resolution | 1920 x 1200 pixels |
|---|
| Touchscreen | No |
|---|
| HD type | WUXGA |
|---|
| Panel type | IPS |
|---|
| LED backlight | Yes |
|---|
| Native aspect ratio | 16:10 |
|---|
| Anti-glare screen | Yes |
|---|
| Display brightness | 300 cd/m² |
|---|
| RGB colour space | NTSC |
|---|
| Colour gamut | 45% |
|---|
| Maximum refresh rate | 60 Hz |
|---|
| Contrast ratio (typical) | 1000:1 |
|---|
Network
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
|---|
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
|---|
| Mobile network connection | No |
|---|
| Antenna type | 2x2 |
|---|
| Ethernet LAN | Yes |
|---|
| Ethernet LAN data rates | 1000,100 Mbit/s |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.3 |
|---|
| WWAN | Not installed |
|---|
Storage
| Total storage capacity | 512 GB |
|---|
| Storage media | SSD |
|---|
| Total SSDs capacity | 512 GB |
|---|
| Number of SSDs installed | 1 |
|---|
| SSD capacity | 512 GB |
|---|
| SSD interface | PCI Express 4.0 |
|---|
| NVMe | Yes |
|---|
| SSD form factor | M.2 |
|---|
| M.2 SSD size | 2242 (22 x 42 mm) |
|---|
| Optical drive type | No |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | SD |
|---|
Graphics
| Discrete graphics card model | Not available |
|---|
| On-board graphics card | Yes |
|---|
| On-board GPU manufacturer | Intel |
|---|
| Discrete graphics card | No |
|---|
| On-board graphics card family | Intel® Graphics |
|---|
| On-board graphics card model | Intel® Graphics |
|---|
Keyboard
| Pointing device | Touchpad |
|---|
| Numeric keypad | Yes |
|---|
| Keyboard backlit | Yes |
|---|
| Spill-resistant keyboard | Yes |
|---|
| Keyboard language | English |
|---|
Security
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| Fingerprint reader | Yes |
|---|
| Windows Hello | Yes |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|
| Trusted Platform Module (TPM) version | 2.0 |
|---|
| Password protection | Yes |
|---|
| Password protection type | HDD, Power on, Supervisor, User |
|---|
Software
| Operating system architecture | 64-bit |
|---|
| Operating system language | English, US English |
|---|
| Trial software | Office |
|---|
| Operating system installed | Windows 11 Pro |
|---|
| Bundled software | Office Trial |
|---|
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel Core Ultra 5 |
|---|
| Processor generation | Intel Core Ultra (Series 2) |
|---|
| Processor model | 225U |
|---|
| Processor cores | 12 |
|---|
| Processor threads | 14 |
|---|
| Processor boost frequency | 4.8 GHz |
|---|
| Performance cores | 2 |
|---|
| Efficient cores | 8 |
|---|
| Low Power Efficient-cores | 2 |
|---|
| Performance-core Max Turbo Frequency | 4.8 GHz |
|---|
| Efficient-core Max Turbo Frequency | 3.8 GHz |
|---|
| Low Power Efficient-core Max Turbo Frequency | 2.4 GHz |
|---|
| Performance-core base frequency | 1.5 GHz |
|---|
| Efficient-core base frequency | 1.3 GHz |
|---|
| Low Power Efficient-core Base Frequency | 700 MHz |
|---|
| Processor cache | 12 MB |
|---|
| Processor base power | 15 W |
|---|
| Maximum turbo power | 57 W |
|---|
Performance
| Motherboard chipset | Intel SoC |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | TÜV Rheinland Low Blue Light (Software Solution)
MIL-STD-810H military test passed |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR, EPEAT Gold, ErP, TCO |
|---|
Packaging content
| AC adapter included | Yes |
|---|
| Stylus pen | No |
|---|
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| HDMI ports quantity | 1 |
|---|
| HDMI version | 2.1 |
|---|
| Thunderbolt 4 ports quantity | 1 |
|---|
| Intel® Thunderbolt 4 | Yes |
|---|
| Combo headphone/mic port | Yes |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
| USB Sleep-and-Charge | Yes |
|---|
| USB Sleep-and-Charge ports | 1 |
|---|
Weight & dimensions
| Width | 356 mm |
|---|
| Depth | 253.5 mm |
|---|
| Height | 17.5 mm |
|---|
| Weight | 1.7 kg |
|---|
Operational conditions
| Operating temperature (T-T) | 5 - 35 °C |
|---|
| Storage temperature (T-T) | 5 - 43 °C |
|---|
| Operating relative humidity (H-H) | 8 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
| Maximum shipping altitude | 3048 m |
|---|
Neural processor unit (NPU)
| Neural processor unit (NPU) | Intel AI Boost |
|---|
| Sparsity support | Yes |
|---|
| Windows Studio effects support | Yes |
|---|
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
|---|
