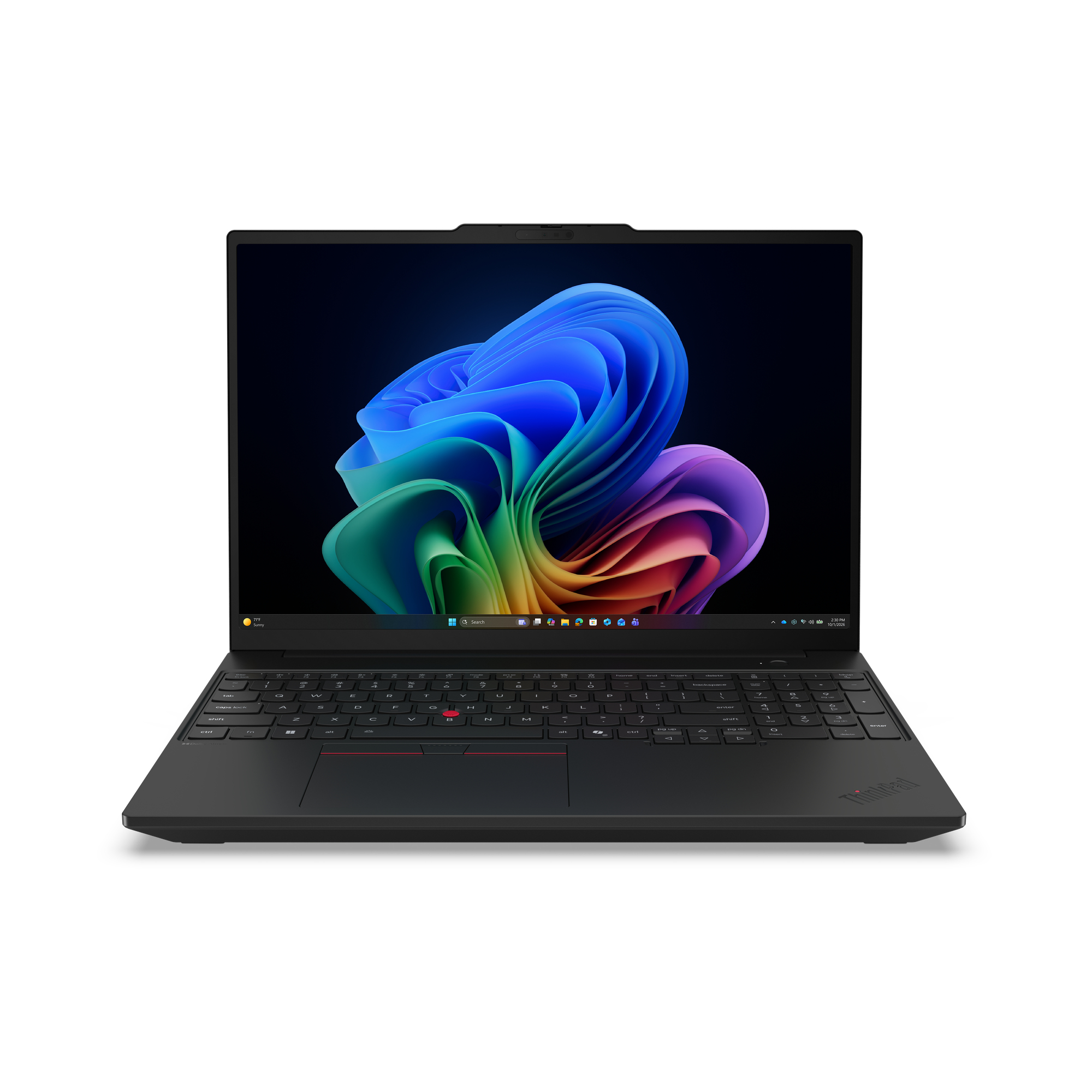

Lenovo ThinkPad T16 Gen 5 (Intel) Copilot+ PC Intel Core Ultra 5 325…

SKU: CNZ-DD-049190
MPN: 21WT004TAU
Rating: No reviews yet

LENOVO THINKPAD T16 G5, 16" WUXGA, U5-325, 16GB, 512GB, WI-FI 7, W11P, 3YP+CO, COPILOT+ — LENOVO

Overview

Lenovo ThinkPad T16 Gen 5 (Intel) Copilot+ PC. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 5, Processor model: 325. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Product colour: Black. Weight: 1.63 kg

Key features

Product type: Laptop
Product colour: Black
Form factor: Clamshell
Housing material: Polycarbonate (PC), Carbon fibre, Glass fibre
Display diagonal: 40.6 cm (16")
Display resolution: 1920 x 1200 pixels
Touchscreen: No
HD type: WUXGA
Panel type: IPS
LED backlight: Yes
Native aspect ratio: 16:10
Anti-glare screen: Yes
Display brightness: 400 cd/m²
RGB colour space: NTSC
Colour gamut: 45%
Maximum refresh rate: 60 Hz
Contrast ratio (typical): 1000:1
Processor manufacturer: Intel
Processor family: Intel Core Ultra 5
Processor generation: Intel® Core™ Ultra (Series 3)
Processor model: 325
Processor cores: 8
Processor threads: 8
Processor boost frequency: 4.5 GHz

At a glance

Audio chip	Realtek ALC3287
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz

All 140 specifications

Specifications

Audio

Audio chip	Realtek ALC3287
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Power

AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Type-C required charging power (min)	15 W
USB Type-C required charging power (max)	100 W
USB Power Delivery (USB PD)	Yes

Camera

Front camera	Yes
Front camera resolution (numeric)	5 MP
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Design

Product type	Laptop
Product colour	Black
Form factor	Clamshell
Housing material	Polycarbonate (PC), Carbon fibre, Glass fibre

Memory

Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	6800 MHz
Memory form factor	LPCAMM2
Maximum internal memory	64 GB
Memory channels	Dual-channel

Battery

Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	60 Wh
Fast charging	Yes

Display

Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	400 cd/m²
RGB colour space	NTSC
Colour gamut	45%
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000:1

Network

Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Mobile network connection	No
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 7 BE211
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4
Near Field Communication (NFC)	No
WWAN	Not installed

Storage

Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Optical drive type	No
Card reader integrated	No

Graphics

Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Discrete graphics card	No
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
Ray tracing acceleration	Yes

Keyboard

Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Keyboard backlit	Yes
Spill-resistant keyboard	Yes
Keyboard language	Swiss
Copilot key	Yes

Security

Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	No
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	Power on, SSD, Supervisor

Software

Operating system language	ENG-UK, US English
Operating system installed	Windows 11 Pro

Processor

Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel® Core™ Ultra (Series 3)
Processor model	325
Processor cores	8
Processor threads	8
Processor boost frequency	4.5 GHz
Performance cores	4
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.5 GHz
Low Power Efficient-core Max Turbo Frequency	3.4 GHz
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.6 GHz
Low Power Efficient-core Base Frequency	1600 MHz
Processor cache	12 MB
Processor cache type	Smart Cache
Processor socket	FCBGA2540
Processor base power	25 W
Maximum turbo power	55 W

Performance

Motherboard chipset	Intel SoC

Certificates

Certification	ENERGY STAR 9.0 EPEAT Gold Registered ErP Lot 6/26 RoHS compliant TCO Certified, generation 10 MIL-STD-810H military test passed

Packaging content

AC adapter included	Yes

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Weight & dimensions

Width	357.9 mm
Depth	247.9 mm
Height (front)	1.15 cm
Height (rear)	1.82 cm
Weight	1.63 kg

Operational conditions

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m

Neural processor unit (NPU)

Copilot+ PC	Yes
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to	47 TOPs
GPU performance up to	40 TOPs

Questions

$3,712.19inc GST
