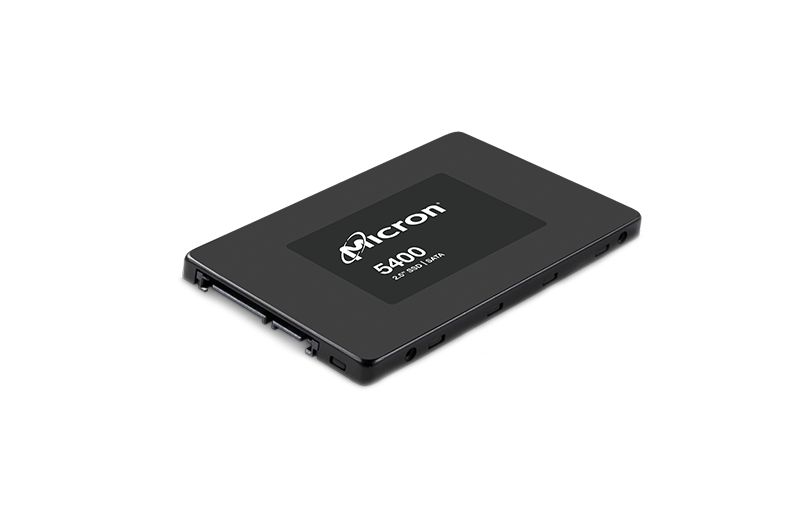

LENOVO THINKSYSTEM 7MM 5400 PRO 7.68TB READ INTENSIVE SATA 6GB HS SSD
Servers & Storage > Servers
- Brand: LENOVO
- Category: Servers
- SKU: 4XB7A82269
- MPN: 4XB7A82269
LENOVO
Lenovo 5400 PRO 7.68 TB Serial ATA III 3D TLC NAND
- SKU
- CNZ-DD-006381
- MPN
- 4XB7A82269
- Rating
- No reviews yet
−14%
Overview
The ThinkSystem 5400 PRO Read Intensive SATA 6Gb SSDs are general-purpose self-encrypting SSDs (SEDs) based on the Micron 5400 PRO platform and are available in capacities ranging from 240GB to 7.86TB. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the 5400 PRO SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 5400 PRO SSDs and consider their use in IT solutions.
This product guide provides essential presales information to understand the 5400 PRO SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 5400 PRO SSDs and consider their use in IT solutions.
Key features
- Security algorithms: 256-bit AES
- SSD capacity: 7.68 TB
- Interface: Serial ATA III
- Memory type: 3D TLC NAND
- Component for: Server/workstation
- Hardware encryption: Yes
- Data transfer rate: 6 Gbit/s
- Random read (4KB): 93000 IOPS
- Random write (4KB): 10500 IOPS
- Sequential latency - read (up to): 170 µs
- Sequential latency - write (up to): 400 µs
- Read latency: 170 µs
- Write latency: 42 µs
- S.M.A.R.T. support: Yes
- Hot-swap: Yes
- Uncorrectable Bit Error Rate (UBER): < 1 per 10^17 bits read
- Mean time between failures (MTBF): 3000000 h
- Drive writes per day (DWPD): 0.6
- Certification: Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B, RoHS UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS FCC: CFR Title 47, Part 15 Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438 Class B and CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRA (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: compliance with EU WEEE directive 2012/19/EC TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: approval to EN55032/EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139)
- Power consumption (read): 2.8 W
- Power consumption (write): 3.9 W
- Width: 70 mm
- Depth: 100 mm
- Height: 7 mm
Specifications
Power
| Power consumption (read) | 2.8 W |
|---|---|
| Power consumption (write) | 3.9 W |
Features
| Security algorithms | 256-bit AES |
|---|---|
| SSD capacity | 7.68 TB |
| Interface | Serial ATA III |
| Memory type | 3D TLC NAND |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Random read (4KB) | 93000 IOPS |
| Random write (4KB) | 10500 IOPS |
| Sequential latency - read (up to) | 170 µs |
| Sequential latency - write (up to) | 400 µs |
| Read latency | 170 µs |
| Write latency | 42 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 3000000 h |
| Drive writes per day (DWPD) | 0.6 |
| Certification | Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B, RoHS UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS FCC: CFR Title 47, Part 15 Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438 Class B and CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRA (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: compliance with EU WEEE directive 2012/19/EC TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: approval to EN55032/EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) |
Other features
| Compatible products | ThinkSystem |
|---|
Weight & dimensions
| Width | 70 mm |
|---|---|
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 70 g |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration | 3.13 G |
| Non-operating shock | 1500 G |
Questions
$21,286.49inc GST
