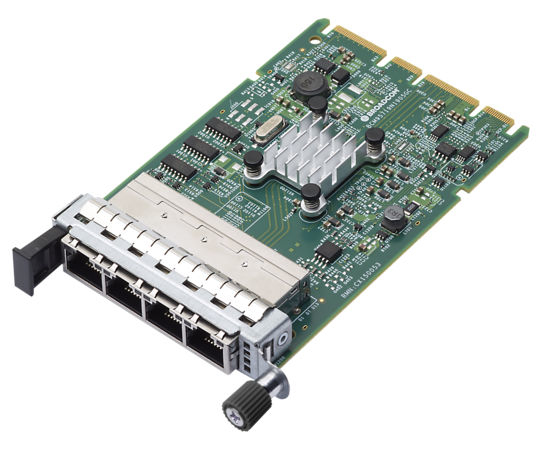

LENOVO THINKSYSTEM BROADCOM 5719 1GBE RJ45 4-PORT OCP ETHERNET ADAPTER
Servers & Storage > Servers
- Brand: LENOVO
- Category: Servers
- SKU: 4XC7A08235
- MPN: 4XC7A08235
LENOVO
Lenovo Broadcom 5719 Internal Ethernet 1000 Mbit/s
- SKU
- CNZ-DD-006395
- MPN
- 4XC7A08235
- Rating
- No reviews yet
−14%
Overview
The Broadcom NetXtreme Gigabit Ethernet Adapters are a family of high performance PCIe and OCP adapters. The adapters are available with either two ports or four ports and are supported on ThinkSystem and System x servers.
This product guide provides essential presales information to understand the NetXtreme GbE offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
This product guide provides essential presales information to understand the NetXtreme GbE offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Key features
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 4
- PCI version: 2.0
- Maximum data transfer rate: 1000 Mbit/s
- Networking standards: IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Wake-on-LAN ready: Yes
- LAN controller: Broadcom BCM5719
- Component for: Server
- Product colour: Green, Stainless steel
- Internal: Yes
- Certification: EN55022, EN55024, EN60950 / CE, EN 61000-3-2, EN 61000-3-3, ICES-003, Issue-004, IEC 950 CB Scheme, FCC 47 CFR Part 15 Class A, UL 1950, CSA C22.2 950-95, VCCI, AS/NZSCISPR 22 / C-tick, RRL for KC, BSMI, UL 94-/V
- Compatible products: R635 (7Y98 / 7Y99), R655 (7Y00 / 7Z01)
- Compatible operating systems: Microsoft Windows Server version 1709, Microsoft Windows Server version 1803, Red Hat Enterprise Linux 6.10, Red Hat Enterprise Linux 6.9, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 7.4, Red Hat Enterprise Linux 7.5, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 8.0, SUSE Linux Enterprise Server 12 SP2, SUSE Linux Enterprise Server 12 SP2 with Xen, SUSE Linux Enterprise Server 12 SP3, SUSE Linux Enterprise Server 12 SP3 with Xen, SUSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 with Xen, VMware vSphere Hypervisor (ESXi) 6.0 U3, VMware vSphere Hypervisor (ESXi) 6.5, VMware vSphere Hypervisor (ESXi) 6.5 U1, VMware vSphere Hypervisor (ESXi) 6.5 U2, VMware vSphere Hypervisor (ESXi) 6.5 U3, VMware vSphere Hypervisor (ESXi) 6.7, VMware vSphere Hypervisor (ESXi) 6.7 U1, VMware vSphere Hypervisor (ESXi) 6.7 U2, VMware vSphere Hypervisor (ESXi) 6.7 U3
- Server operating systems supported: SUSE Linux Enterprise Server 12, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Operating temperature (T-T): 10 - 35 °C
- Operating relative humidity (H-H): 20 - 80%
- Width: 69 mm
- Depth: 132 mm
- Height: 19 mm
Specifications
Design
| Component for | Server |
|---|---|
| Product colour | Green, Stainless steel |
| Internal | Yes |
| Certification | EN55022, EN55024, EN60950 / CE, EN 61000-3-2, EN 61000-3-3, ICES-003, Issue-004, IEC 950 CB Scheme, FCC 47 CFR Part 15 Class A, UL 1950, CSA C22.2 950-95, VCCI, AS/NZSCISPR 22 / C-tick, RRL for KC, BSMI, UL 94-/V |
| Compatible products | R635 (7Y98 / 7Y99), R655 (7Y00 / 7Z01) |
Network
| Maximum data transfer rate | 1000 Mbit/s |
|---|---|
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| LAN controller | Broadcom BCM5719 |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Other features
| Minimum operating temperature | 10 °C |
|---|---|
| Maximum operating temperature | 35 °C |
| Flow control support | Yes |
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 4 |
| PCI version | 2.0 |
System requirements
| Compatible operating systems | Microsoft Windows Server version 1709, Microsoft Windows Server version 1803, Red Hat Enterprise Linux 6.10, Red Hat Enterprise Linux 6.9, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 7.4, Red Hat Enterprise Linux 7.5, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 8.0, SUSE Linux Enterprise Server 12 SP2, SUSE Linux Enterprise Server 12 SP2 with Xen, SUSE Linux Enterprise Server 12 SP3, SUSE Linux Enterprise Server 12 SP3 with Xen, SUSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 with Xen, VMware vSphere Hypervisor (ESXi) 6.0 U3, VMware vSphere Hypervisor (ESXi) 6.5, VMware vSphere Hypervisor (ESXi) 6.5 U1, VMware vSphere Hypervisor (ESXi) 6.5 U2, VMware vSphere Hypervisor (ESXi) 6.5 U3, VMware vSphere Hypervisor (ESXi) 6.7, VMware vSphere Hypervisor (ESXi) 6.7 U1, VMware vSphere Hypervisor (ESXi) 6.7 U2, VMware vSphere Hypervisor (ESXi) 6.7 U3 |
|---|---|
| Server operating systems supported | SUSE Linux Enterprise Server 12, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Weight & dimensions
| Width | 69 mm |
|---|---|
| Depth | 132 mm |
| Height | 19 mm |
Operational conditions
| Operating temperature (T-T) | 10 - 35 °C |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
Questions
$362.24inc GST
