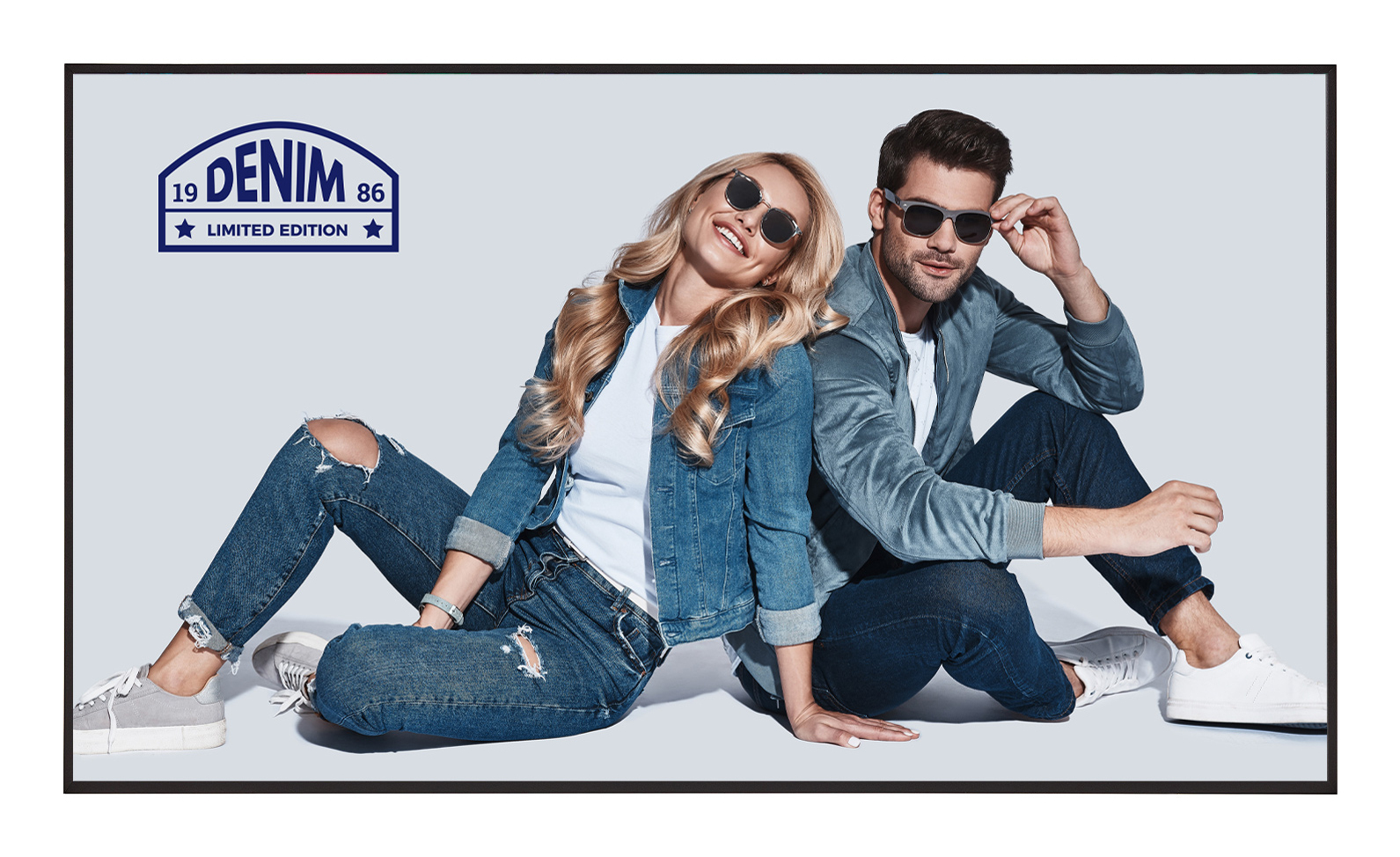

LG 65UH5N-M 65 UHD Signage Display

65UH5N-M 65 UHD Signage Display

  • Brand: LG
  • Category: Monitors
  • SKU: 6406699
  • MPN: 65UH5N-M
LG

LG 65UH5N-M Signage Display Digital signage flat panel 165.1 cm…

SKU
CNZ-IM-006257
MPN
65UH5N-M

Overview

UHD Signage Display with
LG webOS Platform and Advanced Security

High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.

* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.

Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Design for Space Utilization
Designed with thin bezels and simple cable management, the UH5N-M saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.

Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring, provide both reliability and satisfaction.

Enhanced Security Features
The UH5N-M provides security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Key features

  • Panel type: IPS
  • LED backlight: Yes
  • LED backlighting type: Edge-LED
  • Display diagonal: 165.1 cm (65")
  • Display technology: LED
  • Display resolution: 3840 x 2160 pixels
  • Display brightness: 500 cd/m²
  • HD type: 4K Ultra HD
  • Touchscreen: No
  • Native aspect ratio: 16:9
  • Response time: 8 ms
  • Contrast ratio (typical): 1100:1
  • Contrast ratio (dynamic): 1000000:1
  • Viewing angle, horizontal: 178°
  • Viewing angle, vertical: 178°
  • Display number of colours: 1.07 billion colours
  • Panel life: 50000 h
  • Colour depth: 10 bit
  • Native refresh rate: 60 Hz
  • Haze rate: 28%
  • Colour gamut: 95%
  • HDMI ports quantity: 3
  • HDMI input ports quantity: 3
  • DVI port: No

Specifications

Audio

Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power20 W

Power

Power consumption (typical)130 W
Power consumption (standby)0.5 W
Power consumption (max)205 W
Energy efficiency class (SDR)G
Energy efficiency class (HDR)Not available
Energy consumption (SDR) per 1000 hours130 kWh
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Heat dissipation444 BTU/h
Energy efficiency scaleA to G

Design

Product designDigital signage flat panel
Placement supportedIndoor
OrientationHorizontal/Vertical
Product colourBlack
Screen shapeFlat
VESA mountingYes
Panel mounting interface200 x 200 mm
Bezel width (bottom)1.29 cm
Bezel width (side)8.9 mm
Bezel width (top)8.9 mm
Bezel colourBlack

Display

Panel typeIPS
LED backlightYes
LED backlighting typeEdge-LED
Display diagonal165.1 cm (65")
Display technologyLED
Display resolution3840 x 2160 pixels
Display brightness500 cd/m²
HD type4K Ultra HD
TouchscreenNo
Native aspect ratio16:9
Response time8 ms
Contrast ratio (typical)1100:1
Contrast ratio (dynamic)1000000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours1.07 billion colours
Panel life50000 h
Colour depth10 bit
Native refresh rate60 Hz
Haze rate28%
Colour gamut95%

Network

Ethernet LANYes
Wi-FiYes

Features

Heat dissipation (max)699 BTU/h

Performance

PurposeUniversal
Operating hours (hours/days)24/7
HDCPYes
Automatic brightness controlYes
International Protection (IP) codeIP5X
HDCP version1.4/2.2/2.3

Other features

Audio output1
Power supply typeInternal
Plug and PlayYes

Packaging data

Package width1600 mm
Package depth172 mm
Package height970 mm
Package weight30.4 kg

Computer system

Computer systemYes
Computer system typeSystem on Chip (SoC)
Internal memory16 GB
Operating system installedWebOS
Operating system version6.0

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedPower

Technical details

Real Time Clock (RTC)Yes

Ports & interfaces

HDMI ports quantity3
HDMI input ports quantity3
DVI portNo
DisplayPorts quantity1
USB portYes
USB ports quantity2
USB version2.0
USB connector typeUSB Type-A
Ethernet LAN (RJ-45) ports1
RS-232CYes
Remote (IR) input1

Weight & dimensions

Display width1450.3 mm
Display depth29.7 mm
Display height830.3 mm
Display weight24.2 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 80%
