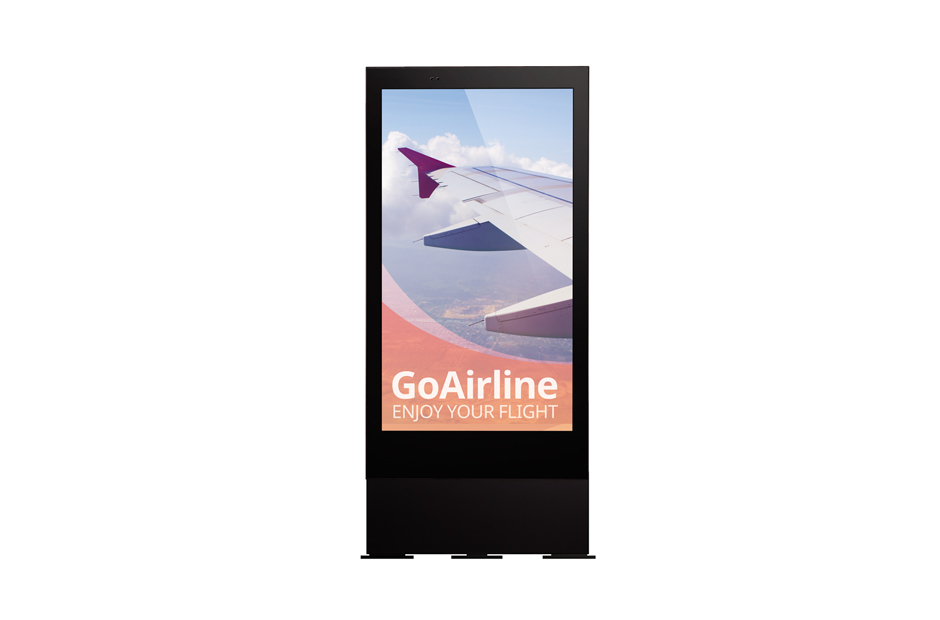

LG 75" OUTDOOR SIGNAGE, FHD, 16:9, 3000 NITS, 24/7, 3% HAZE, WEBOS SIGNAGE, 3YR
Audio & Video > Large Format Displays
- Brand: LG
- Category: Peripherals
- SKU: 75XE3C
- MPN: 75XE3C
LG
LG 75XE3C Signage Display Totem design 190.5 cm (75") 3000 cd/m² 4K…
- SKU
- CNZ-DD-007579
- MPN
- 75XE3C
- Rating
- No reviews yet
Overview
Outstanding Visibility
Smart Brightness Control
The auto-brightness sensor and preset time scheduler save power whenever possible.
Outstanding Visibility
Advanced Local Dimming
The backlighting in specific areas of the screen can be controlled to increase contrast and provide a clearer image with twice the detail.
Outstanding Visibility
QWP (Quarter Wave Plate)
FPR (Film-type Patterned Retarder) technology is embedded with a QWP which enables clear visibility even when the viewer is wearing polarized sunglasses.
Advanced IPS Technology
Wide Viewing Angle
IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
Advanced IPS Technology
No Blackening Effect
Even under direct sunlight exposure, LG commercial monitors remain free from blackening defects under 110°C and provide superior quality for outdoor usage.
Advanced IPS Technology
Anti-reflection
Less interference between reflection of external light & back light thanks to anti-reflection coating.
Product Reliability
Dust & Humidity Protection Designed with IP56 Rating
The conformal coating enhances circuit board reliability by protecting it from dust, iron shavings, humidity and other harsh conditions.
Product Reliability
High Operating Temperature
The panel offers superb reliability under high operating temperatures and reduces cooling fan usage.
Product Reliability
Enhanced Thermal Management
Environmentally sealed structure for waterproofing and protection against brake dust and fumes. Thermal management solution prevents heating from the LCD, Circuit / Power board and Solar loading. Totally self-contained and suitable for outdoor use without air filter.
Product Reliability
9.5 mm Protective Glass
Designed to protect panel from impacts and vandalism for outdoor use. Features OCA* film to protect against heating in direct sunlight.
Cost Effective
Low Power Consumption Using The M+ Panel
The M+ panel offers excellent energy efficiency and cost savings and decreases power consumption by approx. 31 compared to conventional RGB panels.
Easy Operation
Web Monitoring
The embedded web monitoring allows a variety of parameters to be diagnosed in real time using temperature, pixel, door, ambient light and gyro sensors. It can be easily controlled at all times.
Easy Operation
Optional Stand
Optional stand to allow panel to stand freely and facilitate easy cable management.
Smart Brightness Control
The auto-brightness sensor and preset time scheduler save power whenever possible.
Outstanding Visibility
Advanced Local Dimming
The backlighting in specific areas of the screen can be controlled to increase contrast and provide a clearer image with twice the detail.
Outstanding Visibility
QWP (Quarter Wave Plate)
FPR (Film-type Patterned Retarder) technology is embedded with a QWP which enables clear visibility even when the viewer is wearing polarized sunglasses.
Advanced IPS Technology
Wide Viewing Angle
IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
Advanced IPS Technology
No Blackening Effect
Even under direct sunlight exposure, LG commercial monitors remain free from blackening defects under 110°C and provide superior quality for outdoor usage.
Advanced IPS Technology
Anti-reflection
Less interference between reflection of external light & back light thanks to anti-reflection coating.
Product Reliability
Dust & Humidity Protection Designed with IP56 Rating
The conformal coating enhances circuit board reliability by protecting it from dust, iron shavings, humidity and other harsh conditions.
Product Reliability
High Operating Temperature
The panel offers superb reliability under high operating temperatures and reduces cooling fan usage.
Product Reliability
Enhanced Thermal Management
Environmentally sealed structure for waterproofing and protection against brake dust and fumes. Thermal management solution prevents heating from the LCD, Circuit / Power board and Solar loading. Totally self-contained and suitable for outdoor use without air filter.
Product Reliability
9.5 mm Protective Glass
Designed to protect panel from impacts and vandalism for outdoor use. Features OCA* film to protect against heating in direct sunlight.
Cost Effective
Low Power Consumption Using The M+ Panel
The M+ panel offers excellent energy efficiency and cost savings and decreases power consumption by approx. 31 compared to conventional RGB panels.
Easy Operation
Web Monitoring
The embedded web monitoring allows a variety of parameters to be diagnosed in real time using temperature, pixel, door, ambient light and gyro sensors. It can be easily controlled at all times.
Easy Operation
Optional Stand
Optional stand to allow panel to stand freely and facilitate easy cable management.
Key features
- Display diagonal: 190.5 cm (75")
- Display resolution: 3840 x 2160 pixels
- Display brightness: 3000 cd/m²
- HD type: 4K Ultra HD
- Touchscreen: No
- Native aspect ratio: 16:9
- Response time: 8 ms
- Contrast ratio (typical): 1200:1
- Viewing angle, horizontal: 178°
- Viewing angle, vertical: 178°
- HDMI ports quantity: 1
- DVI port: Yes
- DVI-D ports quantity: 1
- DisplayPorts quantity: 2
- USB port: Yes
- USB version: 3.2 Gen 1 (3.1 Gen 1)
- Ethernet LAN (RJ-45) ports: 1
- PC Audio in: Yes
- RS-232C: Yes
- Card reader integrated: Yes
- Compatible memory cards: SD
- Built-in speaker(s): No
- Product design: Totem design
- Placement supported: Outdoor
Specifications
Audio
| Built-in speaker(s) | No |
|---|
Power
| Power consumption (typical) | 700 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Design
| Product design | Totem design |
|---|---|
| Placement supported | Outdoor |
| Orientation | Vertical |
| Product colour | Black |
| Bezel width (bottom) | 23 cm |
| Bezel width (side) | 7.33 cm |
| Bezel width (top) | 11 cm |
Display
| Display diagonal | 190.5 cm (75") |
|---|---|
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 3000 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
Network
| Ethernet LAN | Yes |
|---|
Performance
| Purpose | Retail |
|---|---|
| TV tuner integrated | No |
| International Protection (IP) code | IP56 |
Certificates
| Certification | UL / cUL / CB, FCC "A" / CE / KCC |
|---|
Other features
| User memory | 8 GB |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
| Glass protection | Yes |
| Temperature indicator | Yes |
Packaging data
| Package width | 1308 mm |
|---|---|
| Package depth | 468 mm |
| Package height | 2296 mm |
Computer system
| Computer system | No |
|---|
Packaging content
| Remote control included | Yes |
|---|---|
| Cables included | HDMI, RS-232, USB |
Ports & interfaces
| HDMI ports quantity | 1 |
|---|---|
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 2 |
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Ethernet LAN (RJ-45) ports | 1 |
| PC Audio in | Yes |
| RS-232C | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Weight & dimensions
| Width | 1075.6 mm |
|---|---|
| Depth | 218.9 mm |
| Height | 1991.6 mm |
| Weight | 180 kg |
Operational conditions
| Operating temperature (T-T) | -30 - 50 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 100% |
