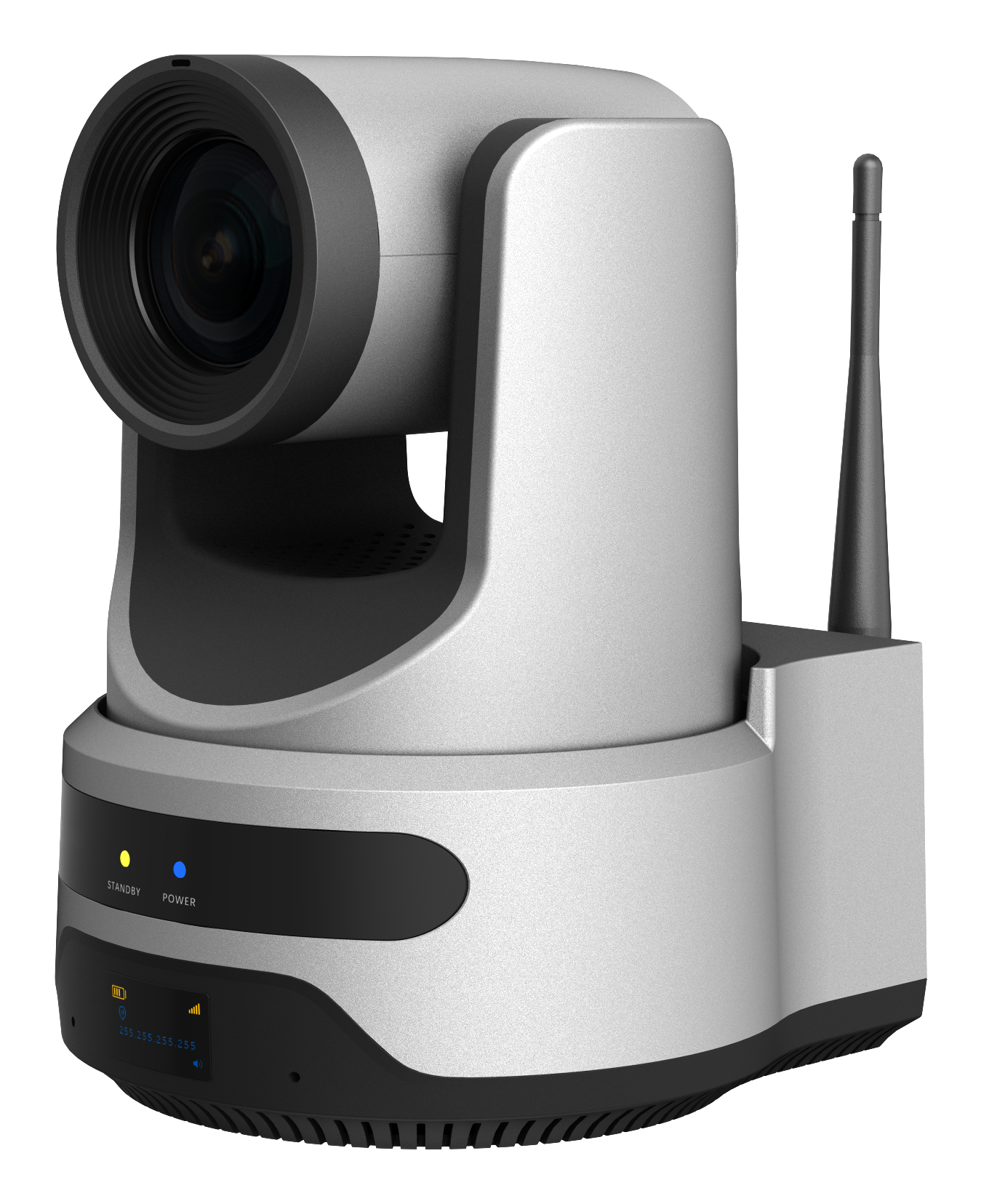

MAXHUB EP50 PTZ camera
Moblile capture PTZ camera also need CSP50 EP50 LM50 PA51
- Brand: Maxhub
- Category: Monitors
- SKU: MHEP50
- MPN: EP50
Maxhub
MAXHUB EP50 video conferencing camera Grey 3840 x 2160 pixels 30 fps…
- SKU
- CNZ-DS-003902
- MPN
- EP50
- Rating
- No reviews yet
Overview
Introducing the EP50 Wireless PTZ Camera, the pinnacle of portability and performance for capturing high-quality, long-distance footage. Perfect for live events, educational sessions, corporate meetings, and more, the EP50 combines advanced features with seamless easeof-use, making it the ideal portable capture system.
40x Hybrid Zoom
With an impressive 40x hybrid zoom, the EP50 lets you capture every detail, even from a distance.
Intelligent Presenter Tracking
With intelligent presenter tracking, the EP50 automatically follows the speaker, ensuring they’re always in frame. Simply click to select your target, and let the camera do the rest
Long-lasting Battery Life
The built-in 4700mAh battery provides up to 6 hours of continuous filming, ensuring you stay powered throughout your event without any interruptions.
Built-in Microphone
The integrated array microphone picks up clear, crisp sound within a 5-meter range, guaranteeing excellent audio quality for your recordings.
40x Hybrid Zoom
With an impressive 40x hybrid zoom, the EP50 lets you capture every detail, even from a distance.
Intelligent Presenter Tracking
With intelligent presenter tracking, the EP50 automatically follows the speaker, ensuring they’re always in frame. Simply click to select your target, and let the camera do the rest
Long-lasting Battery Life
The built-in 4700mAh battery provides up to 6 hours of continuous filming, ensuring you stay powered throughout your event without any interruptions.
Built-in Microphone
The integrated array microphone picks up clear, crisp sound within a 5-meter range, guaranteeing excellent audio quality for your recordings.
Key features
- Camera type: Single camera
- Sensor type: CMOS
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Optical zoom: 20x
- Combined zoom: 40x
- Focal length range: 6.25 - 125 mm
- Horizontal field of view: 60°
- Vertical field of view: 35.7°
- Minimum illumination: 0.5 lx
- Signal-to-Noise Ratio (SNR): 55 dB
- Progressive scan: Yes
- White balance: Auto, Indoor, Manual, Outdoor
- PTZ control: Yes
- Fastest camera shutter speed: 1/10000 s
- 3D NR (Noise Reduction): Yes
- HD type: 4K Ultra HD
- Maximum video resolution: 3840 x 2160 pixels
- Maximum frame rate: 30 fps
- Resolution at capture speed: 2560x1440@30fps, 3840x2160@30fps
- Video formats supported: H.264, MJPG, YUY2
- Product colour: Grey
- HDMI ports quantity: 1
- USB Type-C connector: Yes
- RS-485 ports: 1
Specifications
Power
| Power source type | DC |
|---|---|
| DC input voltage | 12 V |
| Input current | 3 A |
| Power consumption (max) | 12 W |
Video
| HD type | 4K Ultra HD |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 30 fps |
| Resolution at capture speed | 2560x1440@30fps, 3840x2160@30fps |
| Video formats supported | H.264, MJPG, YUY2 |
Camera
| Camera type | Single camera |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom | 20x |
| Combined zoom | 40x |
| Focal length range | 6.25 - 125 mm |
| Horizontal field of view | 60° |
| Vertical field of view | 35.7° |
| Minimum illumination | 0.5 lx |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Progressive scan | Yes |
| White balance | Auto, Indoor, Manual, Outdoor |
| PTZ control | Yes |
| Fastest camera shutter speed | 1/10000 s |
| 3D NR (Noise Reduction) | Yes |
Design
| Product colour | Grey |
|---|
Battery
| Battery capacity | 9480 mAh |
|---|
Network
| Supported network protocols | TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, UDP, etc |
|---|
Packaging content
| Cables included | AC |
|---|---|
| Quick start guide | Yes |
| AC adapter included | Yes |
Ports & interfaces
| HDMI ports quantity | 1 |
|---|---|
| USB Type-C connector | Yes |
| RS-485 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
System requirements
| Windows operating systems supported | Yes |
|---|---|
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android |
| Linux operating systems supported | Yes |
Weight & dimensions
| Width | 295 mm |
|---|---|
| Depth | 245 mm |
| Height | 245 mm |
| Weight | 1.9 kg |
Operational conditions
| Operating temperature (T-T) | -10 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Questions
