NETGEAR 16PRT HGPW POE+ UNMDG SW 260W BDG PRSAFE

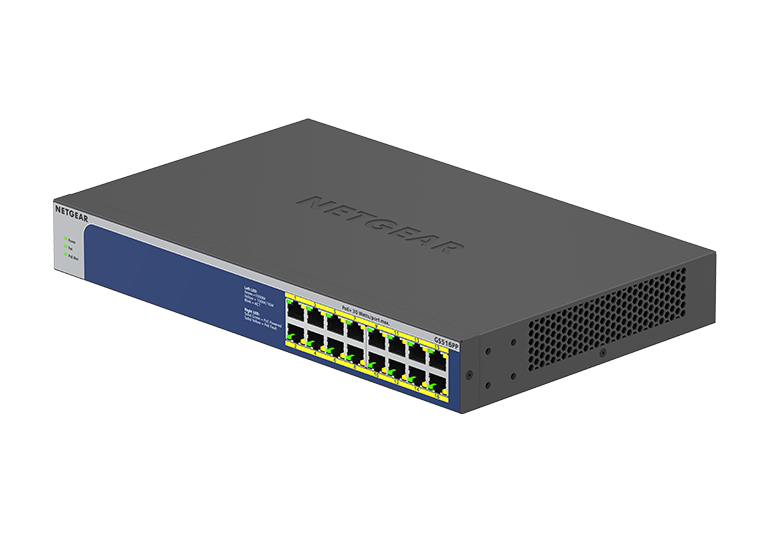

NETGEAR 16-Port High-powered PoE+ Gigabit Unmanaged Switch (260W PoE budget) ProSAFE Lifetime Warranty (GS516PP)
- Brand: NETGEAR
- Category: Storage Software
- SKU: 5017094
- MPN: GS516PP-100AJS
NETGEAR
NETGEAR GS516PP Unmanaged Gigabit Ethernet (10/100/1000) Power over…
- SKU
- CNZ-IM-006816
- MPN
- GS516PP-100AJS
- Rating
- No reviews yet
Overview
Simple plug-and-play, with more than enough to power the entire network 16 high-power PoE+ ports with a large budget to keep your devices always-ready.
PLUG-AND-PLAY:
Simple set up with no software to install or configuration needed and zero maintenance
FULL PERFORMANCE:
Non-blocking switching architecture for maximum throughput at wire speed
POWER-OVER-ETHERNET:
16 PoE+ ports with 260W total power budget to power wireless AP, IP Cameras, IP Phones and much more.
POWER AUTO-BALANCE AND ALLOCATION
NETGEAR's unique PoE technology automatically balances the PoE power, delivering exactly what each device needs.
SILENT OPERATION:
The fanless design means zero added noise wherever its located, making it ideal for your home or business environment
ENERGY EFFICIENT:
Designed to optimize power usage lowering its cost to operate.
RUGGED METAL CASING
Durable desktop case for longevity
VERSATILE MOUNTING OPTIONS:
Supports desktop or rackmount placement, and includes all mounting hardware in the box
STANDARDS-BASED DESIGN
Ensure interoperability with any standards-based PDs
PLUG-AND-PLAY:
Simple set up with no software to install or configuration needed and zero maintenance
FULL PERFORMANCE:
Non-blocking switching architecture for maximum throughput at wire speed
POWER-OVER-ETHERNET:
16 PoE+ ports with 260W total power budget to power wireless AP, IP Cameras, IP Phones and much more.
POWER AUTO-BALANCE AND ALLOCATION
NETGEAR's unique PoE technology automatically balances the PoE power, delivering exactly what each device needs.
SILENT OPERATION:
The fanless design means zero added noise wherever its located, making it ideal for your home or business environment
ENERGY EFFICIENT:
Designed to optimize power usage lowering its cost to operate.
RUGGED METAL CASING
Durable desktop case for longevity
VERSATILE MOUNTING OPTIONS:
Supports desktop or rackmount placement, and includes all mounting hardware in the box
STANDARDS-BASED DESIGN
Ensure interoperability with any standards-based PDs
Key features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
- 10G support: No
- Full duplex: Yes
- Half duplex: Yes
- Auto MDI/MDI-X: Yes
- Switching capacity: 32 Gbit/s
- MAC address table: 8000 entries
- Latency (1 Gbps): 12 µs
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Packet forwarding rate (1 Gbps): 1448000 pps
- Packet buffer memory: 0.192 MB
- Queue scheduling algorithms: Weighted Round Robin (WRR)
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Blue, Grey
- Housing material: Metal
- LED indicators: Activity, Fan fail, Link, PoE, Power, Speed
- Number of fans: 2 fan(s)
- Mean time between failures (MTBF): 2415333.9 h
Specifications
Power
| Power supply included | Yes |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 316.1 W |
Design
| Rack mounting | Yes |
|---|---|
| Form factor | 1U |
| Product colour | Blue, Grey |
| Housing material | Metal |
| LED indicators | Activity, Fan fail, Link, PoE, Power, Speed |
| Number of fans | 2 fan(s) |
Network
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u |
|---|---|
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
Security
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
|---|
Performance
| Mean time between failures (MTBF) | 2415333.9 h |
|---|
Certificates
| Certification | FCC 47 CFR Part15B (Class A) ICES-003 Class A EN 55024/55032/55035 (Class A) AS/NZS CISPR 32 VCCI BSMI CNS13438 KCC UL 62368-1 CB_IEC 60950-1 + IEC 62368-1 Ed-3 LVD EN60950-1+EN62368-1 Ed-2 Rpt AS/NZS 62368.1 Ed-2 BSMI CNS14336-1 |
|---|
Data transmission
| Switching capacity | 32 Gbit/s |
|---|---|
| MAC address table | 8000 entries |
| Latency (1 Gbps) | 12 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Packet buffer memory | 0.192 MB |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Management features
| Switch type | Unmanaged |
|---|---|
| Quality of Service (QoS) support | Yes |
Weight & dimensions
| Width | 330 mm |
|---|---|
| Depth | 207 mm |
| Height | 43 mm |
| Weight | 2.3 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3000 m |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 260 W |
