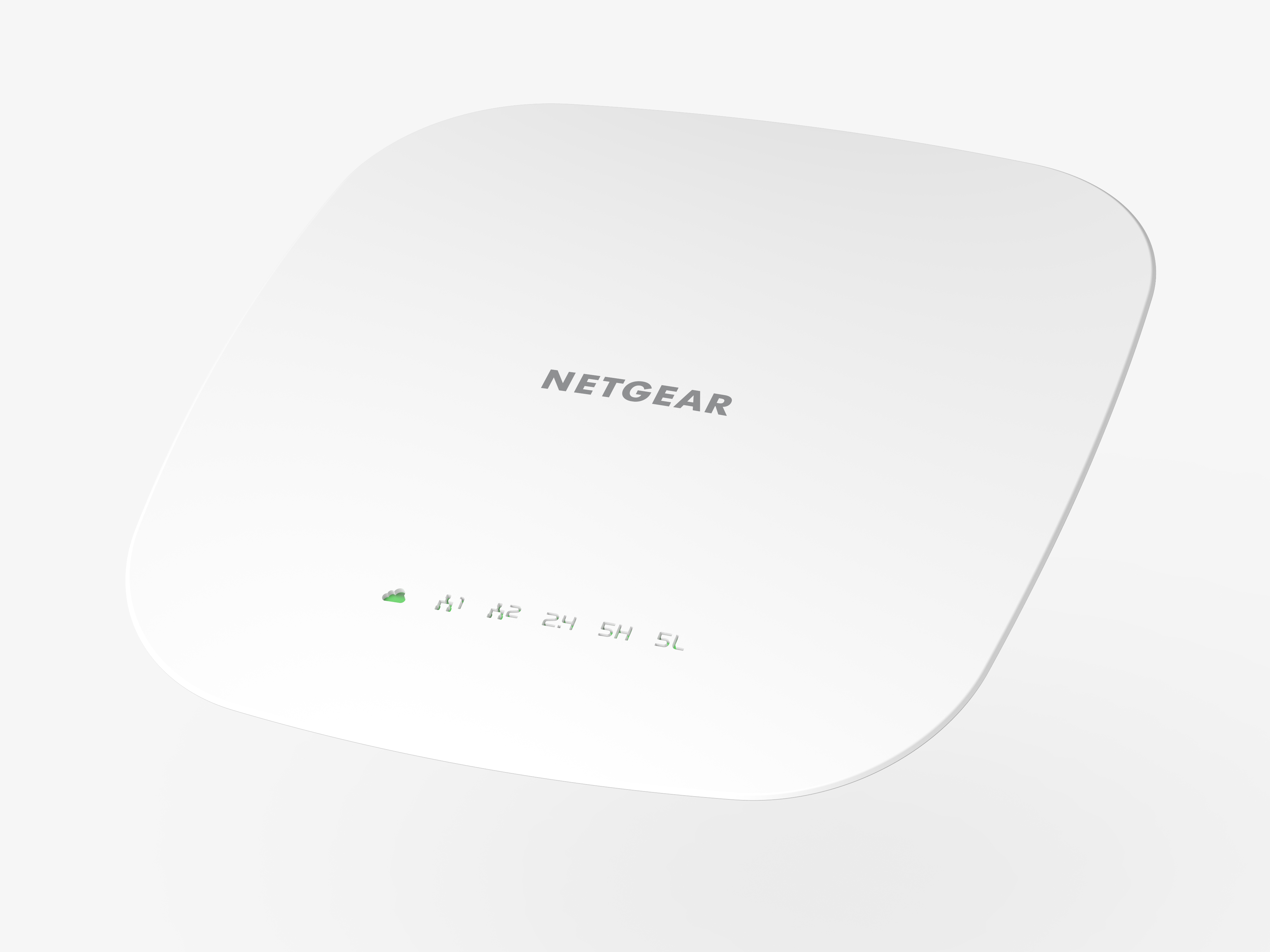

NETGEAR 2PT INSIGHT WLESS AC TRI RADIO 4X4
2PT INSIGHT WLESS AC TRI RADIO 4X4
- Brand: NETGEAR
- Category: Access Points (WiFi)
- SKU: 4439106
- MPN: WAC540-10000S
NETGEAR
NETGEAR WAC540 1733 Mbit/s White Power over Ethernet (PoE)
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
−10%
Overview
The NETGEAR® Insight Managed Smart Cloud Tri-band 4x4 Wireless Access Point WAC540 delivers superior WiFi performance and ultra-high client density for enterprises requiring ubiquitous and reliable wireless for all business applications. The WAC540 is managed by NETGEAR Insight, for a fully centralized Cloud real-time monitoring, with no need for extra management hardware. The WAC540 features 4x4 Multi-User MIMO (MU-MIMO) to achieve aggregate speeds up to 3 Gbps, superior WiFi roaming and comes with 2 Power-over-Ethernet (PoE) 1Gb LAN ports. WAC540 comes with market leading 5-year warranty.
Remote monitoring and management with NETGEAR Insight
- Instant discovery & set-up
- Local and Cloud monitoring and management through the Insight app or Cloud Portal
- Remote access and multi-device configuration
- No additional Cloud controller, appliance, network manager, or PC/server is necessary
- QR code initial configuration for instant installation
Ultimate WiFi performance and roaming for high-density environment
- Tri-band concurrent operation between 2.4GHz and high and low 5GHz frequency ranges
- Maximum performance with multi-gigabit throughput (up to 3 Gbps)
- 4x4 Multi-User MIMO enable concurrent wireless transmit and receive with multiple clients
- Automatic Power and Channel management for seamless roaming and superior coverage and performance
- Load balancing to assure that the clients are evenly spread on the radios and they are all enjoying the best possible WiFi experience.
- Airtime fairness to guarantee reasonable performance for slower clients.
- Beamforming for maximum performance and penetration for all clients.
- Advanced Roaming to ascertain that clients can freely move around the WiFi space conducting voice and video calls without interruption.
Flexible deployment with Power over Ethernet and accessories
- Standard based 802.3at Power over Ethernet (PoE)
- Access Point mode for multiple WAC505 for mid-size office environment
- Ceiling and wall mount for ease of placement
Remote monitoring and management with NETGEAR Insight
- Instant discovery & set-up
- Local and Cloud monitoring and management through the Insight app or Cloud Portal
- Remote access and multi-device configuration
- No additional Cloud controller, appliance, network manager, or PC/server is necessary
- QR code initial configuration for instant installation
Ultimate WiFi performance and roaming for high-density environment
- Tri-band concurrent operation between 2.4GHz and high and low 5GHz frequency ranges
- Maximum performance with multi-gigabit throughput (up to 3 Gbps)
- 4x4 Multi-User MIMO enable concurrent wireless transmit and receive with multiple clients
- Automatic Power and Channel management for seamless roaming and superior coverage and performance
- Load balancing to assure that the clients are evenly spread on the radios and they are all enjoying the best possible WiFi experience.
- Airtime fairness to guarantee reasonable performance for slower clients.
- Beamforming for maximum performance and penetration for all clients.
- Advanced Roaming to ascertain that clients can freely move around the WiFi space conducting voice and video calls without interruption.
Flexible deployment with Power over Ethernet and accessories
- Standard based 802.3at Power over Ethernet (PoE)
- Access Point mode for multiple WAC505 for mid-size office environment
- Ceiling and wall mount for ease of placement
Key features
- 2.4 GHz: Yes
- 5 GHz: Yes
- Maximum data transfer rate: 1733 Mbit/s
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Throughput data rate: 3000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v, IEEE 802.1x, IEEE 802.3at
- Number of users: 600 user(s)
- Auto MDI/MDI-X: Yes
- MIMO: Yes
- MIMO type: Multi User MIMO
- Modulation: 256-QAM
- Fit AP mode features: 802.11k & 802.11v smart roaming, Wireless distribution system (WDS)
- Wi-Fi Multimedia (WMM)/(WME): Yes
- Wi-Fi roaming: Yes
- WLAN channel features: WLAN channel management
- VLAN support: Yes
- Adaptive bandwidth management: Yes
- Load balancing: Yes
- Band steering: Yes
- Airtime Fairness (ATF): Yes
- Security algorithms: EAP-TLS, PEAP, SNMP, SSH, SSID, SSL/TLS, TTLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-PSK
- MAC address filtering: Yes
- Service Set Identifier (SSID) features: SSID broadcast on/off
- Auto Wireless Distribution System (WDS): Yes
Specifications
Power
| Power over Ethernet (PoE) | Yes |
|---|---|
| AC input voltage | 12 V |
| Input current | 2.5 A |
| Power consumption (typical) | 25.5 W |
| Power management | Yes |
Design
| Placement | Ceiling, Wall |
|---|---|
| Product colour | White |
| Reset button | Yes |
| LED indicators | LAN, Power, WLAN |
| Internal | No |
Antenna
| Antenna type | Internal |
|---|---|
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 4 dBi |
Features
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| Maximum data transfer rate | 1733 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Throughput data rate | 3000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v, IEEE 802.1x, IEEE 802.3at |
| Number of users | 600 user(s) |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 256-QAM |
| Fit AP mode features | 802.11k & 802.11v smart roaming, Wireless distribution system (WDS) |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wi-Fi roaming | Yes |
| WLAN channel features | WLAN channel management |
| VLAN support | Yes |
| Adaptive bandwidth management | Yes |
| Load balancing | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
Security
| Security algorithms | EAP-TLS, PEAP, SNMP, SSH, SSID, SSL/TLS, TTLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-PSK |
|---|---|
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | SSID broadcast on/off |
| Auto Wireless Distribution System (WDS) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Access Control List (ACL) | Yes |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|---|
| Master (outer) case width | 320 mm |
| Master (outer) case length | 600 mm |
| Master (outer) case height | 278 mm |
| Master (outer) case gross weight | 6.46 kg |
| Products per master (outer) case | 4 pc(s) |
Packaging data
| Package width | 296 mm |
|---|---|
| Package depth | 292 mm |
| Package height | 108 mm |
| Package weight | 1.3 kg |
Packaging content
| Mounting kit | Yes |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
|---|---|
| DC-in jack | Yes |
Management features
| Web-based management | Yes |
|---|
Weight & dimensions
| Width | 241.5 mm |
|---|---|
| Depth | 241.5 mm |
| Height | 40.2 mm |
| Weight | 752 g |
