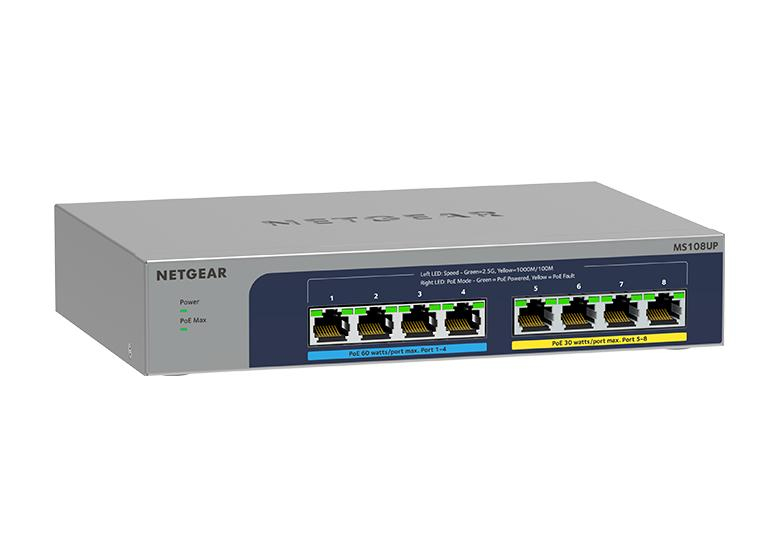

NETGEAR MS108UP Unmanaged 2.5G Ethernet (100/1000/2500) Power over…

SKU: CNZ-IM-006765
MPN: MS108UP-100AUS
Rating: No reviews yet

NETGEAR 8PRT ULTR60 POE MULTIGB(2.5G) ETHR SWTCH — NETGEAR

Overview

NETGEAR brings the first Unmanaged
Multi-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play
installation, and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access
points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.

Key features

Switch type: Unmanaged
Quality of Service (QoS) support: Yes
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 8
Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G support: No
Full duplex: Yes
Half duplex: Yes
Auto MDI/MDI-X: Yes
Head-of-line (HOL) blocking: Yes
Ethernet LAN data rates: 100,1000,2500 Mbit/s
Auto-sensing: Yes
VLAN support: Yes
Number of VLANs: 64
Switching capacity: 40 Gbit/s
MAC address table: 16000 entries
Latency (1 Gbps): 3.593 µs
Jumbo frames support: Yes
Jumbo frames: 12000
Packet forwarding rate (1 Gbps): 1488000 pps
Packet buffer memory: 1.5 MB
Rack mounting: No
Housing material: Metal

Specifications

Power

Power source	DC
Power supply included	Yes
DC input voltage	54 V
Input current	4.7 A

Design

Rack mounting	No
Housing material	Metal
Wall mountable	Yes
Number of fans	0 fan(s)
Electromagnetic compatibility	CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM

Network

Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
10G support	No
Full duplex	Yes
Half duplex	Yes
Auto MDI/MDI-X	Yes
Head-of-line (HOL) blocking	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
Auto-sensing	Yes
VLAN support	Yes
Number of VLANs	64

Performance

Fanless	Yes
Mean time between failures (MTBF)	373643.7 h

Certificates

Certification	CB, CSA, CCC, BSMI, RCM

Data transmission

Switching capacity	40 Gbit/s
MAC address table	16000 entries
Latency (1 Gbps)	3.593 µs
Jumbo frames support	Yes
Jumbo frames	12000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet buffer memory	1.5 MB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity	8

Management features

Switch type	Unmanaged
Quality of Service (QoS) support	Yes

Weight & dimensions

Width	210 mm
Depth	140 mm
Height	40 mm
Weight	900 g

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Heat dissipation	923.49 BTU/h

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	230 W

NETGEAR 8PRT ULTR60 POE MULTIGB(2.5G) ETHR SWTCH
