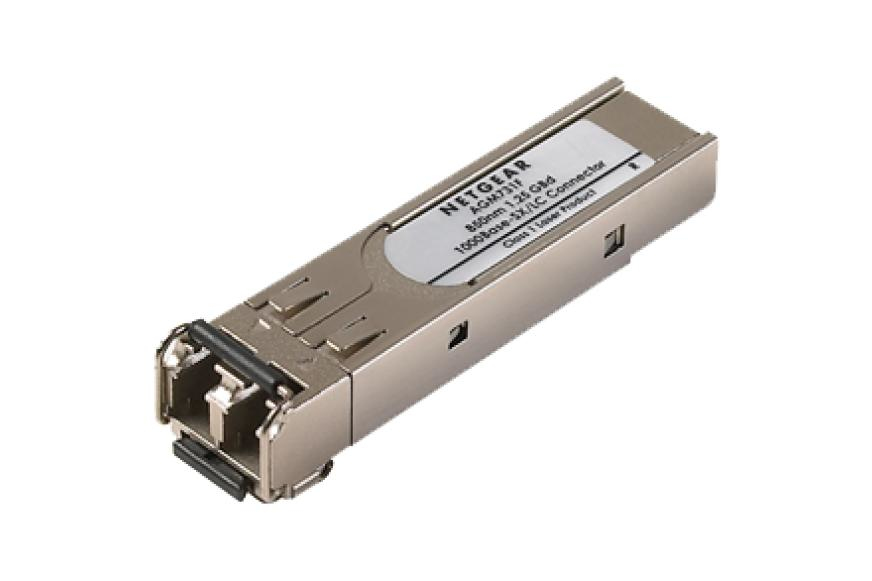

NETGEAR AGM731F 1000Base-SX Multimode SFP Module LC duplex connector
1000Base-SX Multimode SFP Module LC duplex connector
- Brand: NETGEAR
- Category: Fibre And SFP
- SKU: AGM731F
- MPN: AGM731F
NETGEARNETGEAR SFP 1G Ethernet Fiber Module for Managed Switches
- SKU
- CNZ-SN-001237
- MPN
- AGM731F
- Warranty
- 60 months
Overview
The ProSAFE GBIC Module is a LC duplex connector and meets SFP GBIC standard for use with any SFP GBIC compliant slot.
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1250 Mbit/s
- Interface type: SFP
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: LC
- Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
- SFP transceiver standard: SX
- Maximum transfer distance: 1000 m
- Wavelength: 850 nm
- Ethernet LAN: Yes
- Networking standards: IEEE 802.3z
- Fiber ethernet cabling technology: 1000BASE
- Duplex system: Full
- Product colour: Silver
- Housing material: Metal
- Mean time between failures (MTBF): 87658 h
- Input voltage: 3.3 V
- Power consumption (typical): 0.5 W
- Compliance certificates: CE, RoHS
- Safety: UL 1950, CSA 22.2 No.60 950
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Width: 57 mm
Specifications
Power
| Input voltage | 3.3 V |
|---|
| Power consumption (typical) | 0.5 W |
|---|
Features
| Product colour | Silver |
|---|
| Housing material | Metal |
|---|
| Mean time between failures (MTBF) | 87658 h |
|---|
Performance
| SFP transceiver type | Fiber optic |
|---|
| Maximum data transfer rate | 1250 Mbit/s |
|---|
| Interface type | SFP |
|---|
| Multi-mode fiber (MMF) supported | Yes |
|---|
| Fiber optic connector | LC |
|---|
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
|---|
| SFP transceiver standard | SX |
|---|
| Maximum transfer distance | 1000 m |
|---|
| Wavelength | 850 nm |
|---|
| Ethernet LAN | Yes |
|---|
| Networking standards | IEEE 802.3z |
|---|
| Fiber ethernet cabling technology | 1000BASE |
|---|
| Duplex system | Full |
|---|
Certificates
| Compliance certificates | CE, RoHS |
|---|
| Safety | UL 1950, CSA 22.2 No.60 950 |
|---|
Logistics data
| Harmonized System (HS) code | 85369010 |
|---|
Weight & dimensions
| Width | 57 mm |
|---|
| Depth | 13.8 mm |
|---|
| Height | 8.5 mm |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -10 - 70 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90% |
|---|
$215.04inc GST
