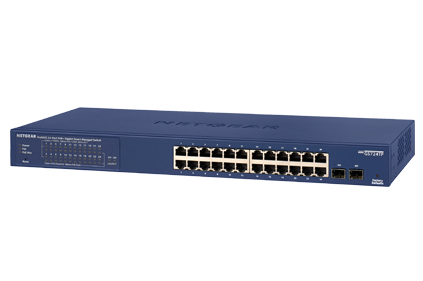

NETGEAR GS724TPV2 24-PORT GB POE + SMART SWITCH

NETGEAR 24-PORT POE GIGABIT ETHERNET SMART SWITCH (GS724TP) - MANAGED WITH 24 X POE+ 190W 2 X 1G SFP DESKTOP/RACKMOUNT AND PROSAFE LIMITED LIFETIME PROTECTION

  • Brand: NETGEAR
  • Category: Switches
  • SKU: 3659710
  • MPN: GS724TP-200AJS
NETGEAR

NETGEAR GS724TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000)…

Our SKU
MPN
Barcode

Overview

The NETGEAR GS724TPv2 24-Port Gigabit Smart Managed Pro Switch comes with 24 PoE+ copper ports and 2 dedicated SFP ports for fiber uplinks. Cautious spender organizations can now deploy denser PoE+ devices with a reasonable PoE power budget of 190W. With temperature-based fan-speed control, the GS724TPv2 supports quiet rack mounting operation with a maximum of 32.4dB at 25°C (77°F) ambient.  The GS724TPv2 offers an easy-to-use Web browser-based management GUI with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. Advanced features such Access Control Lists (ACLs), L2/L3/L4 QoS (DiffServ), LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS724TPv2 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR ProSAFE Lifetime Limited Warranty and 24/7 support including lifetime chat.The NETGEAR GS724TPv2 24-Port Gigabit Smart Managed Pro Switch comes with 24 PoE+ copper ports and 2 dedicated SFP ports for fiber uplinks. Cautious spender organizations can now deploy denser PoE+ devices with a reasonable PoE power budget of 190W. With temperature-based fan-speed control, the GS724TPv2 supports quiet rack mounting operation with a maximum of 32.4dB at 25°C (77°F) ambient.  The GS724TPv2 offers an easy-to-use Web browser-based management GUI with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. Advanced features such Access Control Lists (ACLs), L2/L3/L4 QoS (DiffServ), LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS724TPv2 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR ProSAFE Lifetime Limited Warranty and 24/7 support including lifetime chat.

Key features

  • Switch type: Managed
  • Switch layer: L2/L3/L4
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Combo SFP ports quantity: 2
  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
  • Port mirroring: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Broadcast storm control: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-negotiation: Yes
  • VLAN support: Yes
  • Number of VLANs: 256
  • Switching capacity: 52 Gbit/s
  • Forwarding rate: 38.7 Mpps
  • MAC address table: 8000 entries
  • Store-and-forward: Yes
  • Latency (1 Gbps): 3.7 µs
  • Number of queues: 4
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • Packet buffer memory: 0.5 MB
  • DHCP features: DHCP client

Specifications

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)228.53 W

Design

Rack mountingYes
Product colourBlue
Housing materialMetal

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Port mirroringYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
Auto-negotiationYes
VLAN supportYes
Number of VLANs256

Security

DHCP featuresDHCP client

Protocols

Management protocolsSNMP v1 / v2c / v3

Performance

Internal memory128 MB
Flash memory32 MB
Noise level32.4 dB
Mean time between failures (MTBF)1051375 h

Certificates

CertificationVCCI Class A

Data transmission

Switching capacity52 Gbit/s
Forwarding rate38.7 Mpps
MAC address table8000 entries
Store-and-forwardYes
Latency (1 Gbps)3.7 µs
Number of queues4
Jumbo frames supportYes
Jumbo frames9216
Packet buffer memory0.5 MB

Packaging content

Rack mount kitYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity2

Management features

Switch typeManaged
Switch layerL2/L3/L4

Weight & dimensions

Width440 mm
Depth204 mm
Height43 mm
Weight3.14 kg

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Total Power over Ethernet (PoE) budget190 W
