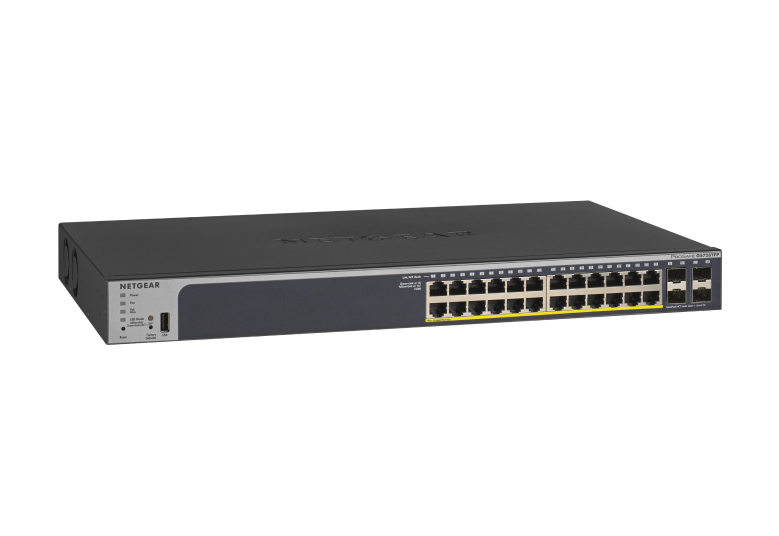

NETGEAR GS728TPV2 24P GIGABIT POE+ SWITCH LT

NETGEAR 28-PORT POE GIGABIT ETHERNET SMART SWITCH (GS728TP) - MANAGED WITH 24 X POE+ 190W 4 X 1G SFP DESKTOP/RACKMOUNT AND PROSAFE LIFETIME PROTECTION

  • Brand: NETGEAR
  • Category: Switches
  • SKU: 4214801
  • MPN: GS728TP-200AJS
NETGEAR

NETGEAR GS728TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000)…

SKU
CNZ-IM-006754
MPN
GS728TP-200AJS

Overview

All ports PoE+ with up to 760W PoE budget – Select your new network engine!
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business’ needs, whether in the hospitality, catering, education or retail domains.

The GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom.

Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TPv2 supports quiet rack mounting operation with a maximum of 31dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPPv2 is rated at 35dBA, the GS752TPv2 at 38dBA and the GS752TPP at 43dBA

Key features

  • Switch type: Managed
  • Switch layer: L2/L3/L4
  • Web-based management: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP module slots quantity: 4
  • USB 2.0 ports quantity: 1
  • 10G support: No
  • VLAN support: Yes
  • Number of VLANs: 256
  • Switching capacity: 56 Gbit/s
  • MAC address table: 16000 entries
  • Latency (1 Gbps): 3.35 µs
  • Static route: Yes
  • Packet buffer memory: 1.5 MB
  • Access Control List (ACL) rules: 100
  • Multicast support: Yes
  • Multicast MAC address table: 512 entries
  • Rack mounting: Yes
  • Form factor: 1U
  • Product colour: Black
  • LED indicators: Yes
  • Number of fans: 2 fan(s)
  • Built-in processor: Yes

Specifications

Design

Rack mountingYes
Form factor1U
Product colourBlack
LED indicatorsYes
Number of fans2 fan(s)

Network

10G supportNo
VLAN supportYes
Number of VLANs256

Security

Access Control List (ACL) rules100

Performance

Built-in processorYes
Processor frequency700 MHz
Internal memory128 MB
Flash memory32 MB

Certificates

CertificationCE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI

Data transmission

Switching capacity56 Gbit/s
MAC address table16000 entries
Latency (1 Gbps)3.35 µs
Static routeYes
Packet buffer memory1.5 MB

Packaging content

Quick start guideYes
User guideYes
ManualYes

Multicast features

Multicast supportYes
Multicast MAC address table512 entries

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity4
USB 2.0 ports quantity1

Management features

Switch typeManaged
Switch layerL2/L3/L4
Web-based managementYes

Weight & dimensions

Width440 mm
Depth257 mm
Height44 mm
Weight3.73 kg

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Total Power over Ethernet (PoE) budget190 W
