NETGEAR SOHO 5 PORT GB UNMGD SWTCH

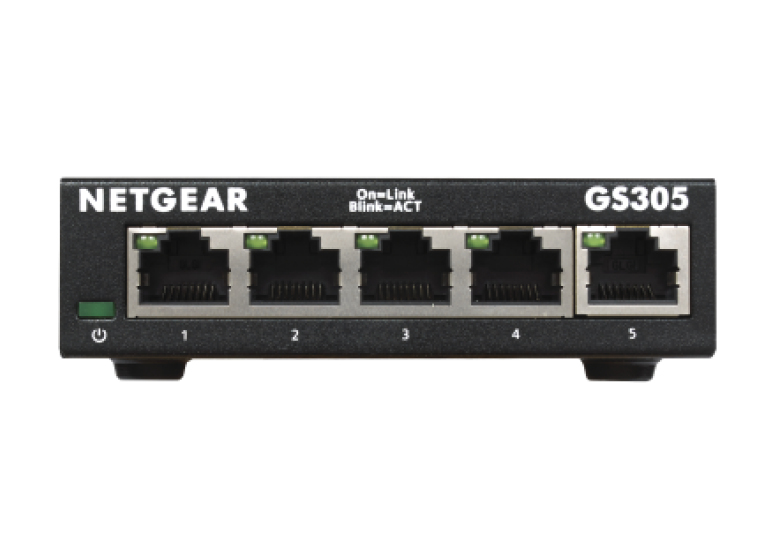

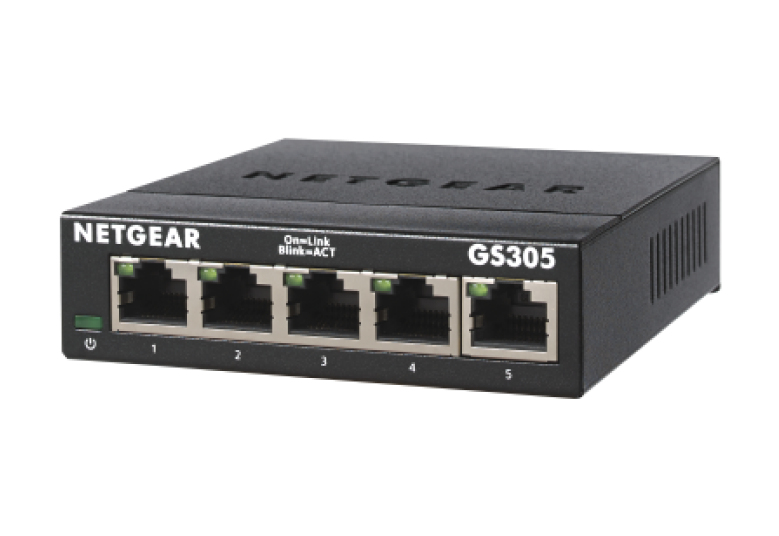

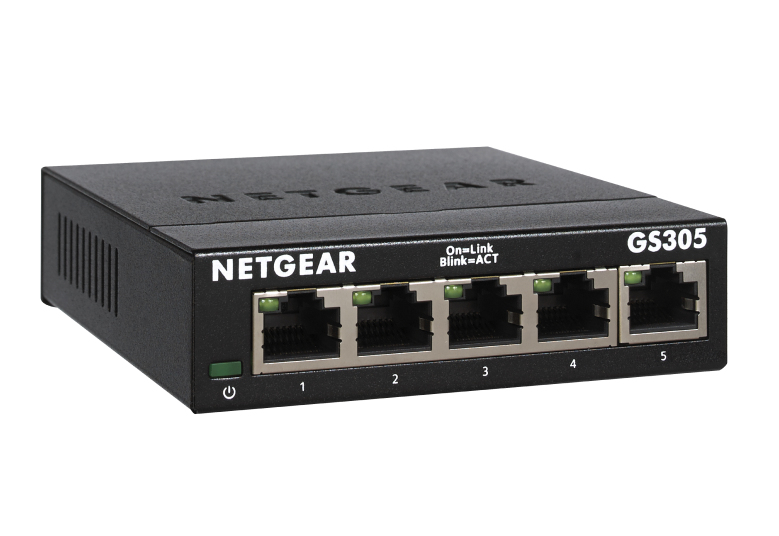

NETGEAR SOHO 5-port Gigabit Unmanaged Switch (GS305)
- Brand: NETGEAR
- Category: Switches
- SKU: 5117271
- MPN: GS305-300AUS
NETGEAR
NETGEAR GS305 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
- Our SKU
- MPN
- Rating
- No reviews yet
Overview
Cost-effective plug-and-play networking lets you expand your office network to multiple devices instantly
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed and zero maintenance
FULL PERFORMANCE
Non-blocking switching architecture for maximum throughput at wire speed
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
ENERGY EFFICIENT
Designed to optimize power usage lowering its cost to operate.
Metal Case
Durable and Rugged
VERSATILE MOUNTING OPTIONS
Supports desktop and wall placement
STANDARDS-BASED DESIGN
Ensure interoperability with any standards-based PDs
Plug-and-play
Automatic connectivity to your router or modem of 4 or 7 additional wired connections. No need for an IT expert!
All speeds welcome
Expand your network instantly, and give your devices either 100Mb, 1, 2.5, 5 or 10-Gigabit, automatically
Mounting flexibility
Small and silent desktop or rackmount form factor for quiet operation – Adapts to your needs and configuration in any environment
Industry leading support
ProSAFE LIFETIME Warranty, Next Business Day replacement and 24/7 chat with a NETGEAR expert
Energy efficient
Switches automatically adjust power consumption according to the link status and cable length.
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed and zero maintenance
FULL PERFORMANCE
Non-blocking switching architecture for maximum throughput at wire speed
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
ENERGY EFFICIENT
Designed to optimize power usage lowering its cost to operate.
Metal Case
Durable and Rugged
VERSATILE MOUNTING OPTIONS
Supports desktop and wall placement
STANDARDS-BASED DESIGN
Ensure interoperability with any standards-based PDs
Plug-and-play
Automatic connectivity to your router or modem of 4 or 7 additional wired connections. No need for an IT expert!
All speeds welcome
Expand your network instantly, and give your devices either 100Mb, 1, 2.5, 5 or 10-Gigabit, automatically
Mounting flexibility
Small and silent desktop or rackmount form factor for quiet operation – Adapts to your needs and configuration in any environment
Industry leading support
ProSAFE LIFETIME Warranty, Next Business Day replacement and 24/7 chat with a NETGEAR expert
Energy efficient
Switches automatically adjust power consumption according to the link status and cable length.
Key features
- Switch type: Unmanaged
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power connector: DC-in jack
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Full duplex: Yes
- Half duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-sensing: Yes
- Cable length detection: Yes
- Switching capacity: 10 Gbit/s
- Forwarding rate: 1.448 Mpps
- MAC address table: 2000 entries
- Latency (1 Gbps): 2.6 µs
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Packet buffer memory: 0.128 MB
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
Specifications
Power
| Power consumption (max) | 2.15 W |
|---|
Design
| Rack mounting | No |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Wall mountable | Yes |
Network
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Cable length detection | Yes |
Performance
| Mean time between failures (MTBF) | 3831422 h |
|---|
Certificates
| Certification | CE Mark FCC Part 15 Class B IC Class B RCM VCCI |
|---|
Data transmission
| Switching capacity | 10 Gbit/s |
|---|---|
| Forwarding rate | 1.448 Mpps |
| MAC address table | 2000 entries |
| Latency (1 Gbps) | 2.6 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.128 MB |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |

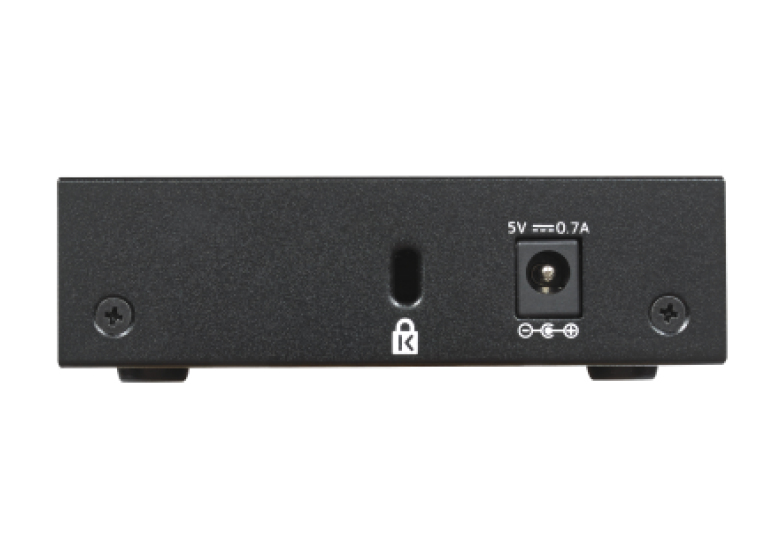

| Power connector | DC-in jack |
Management features
| Switch type | Unmanaged |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Weight & dimensions
| Width | 101 mm |
|---|---|
| Depth | 94 mm |
| Height | 29 mm |
| Weight | 250 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 7.35 BTU/h |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
